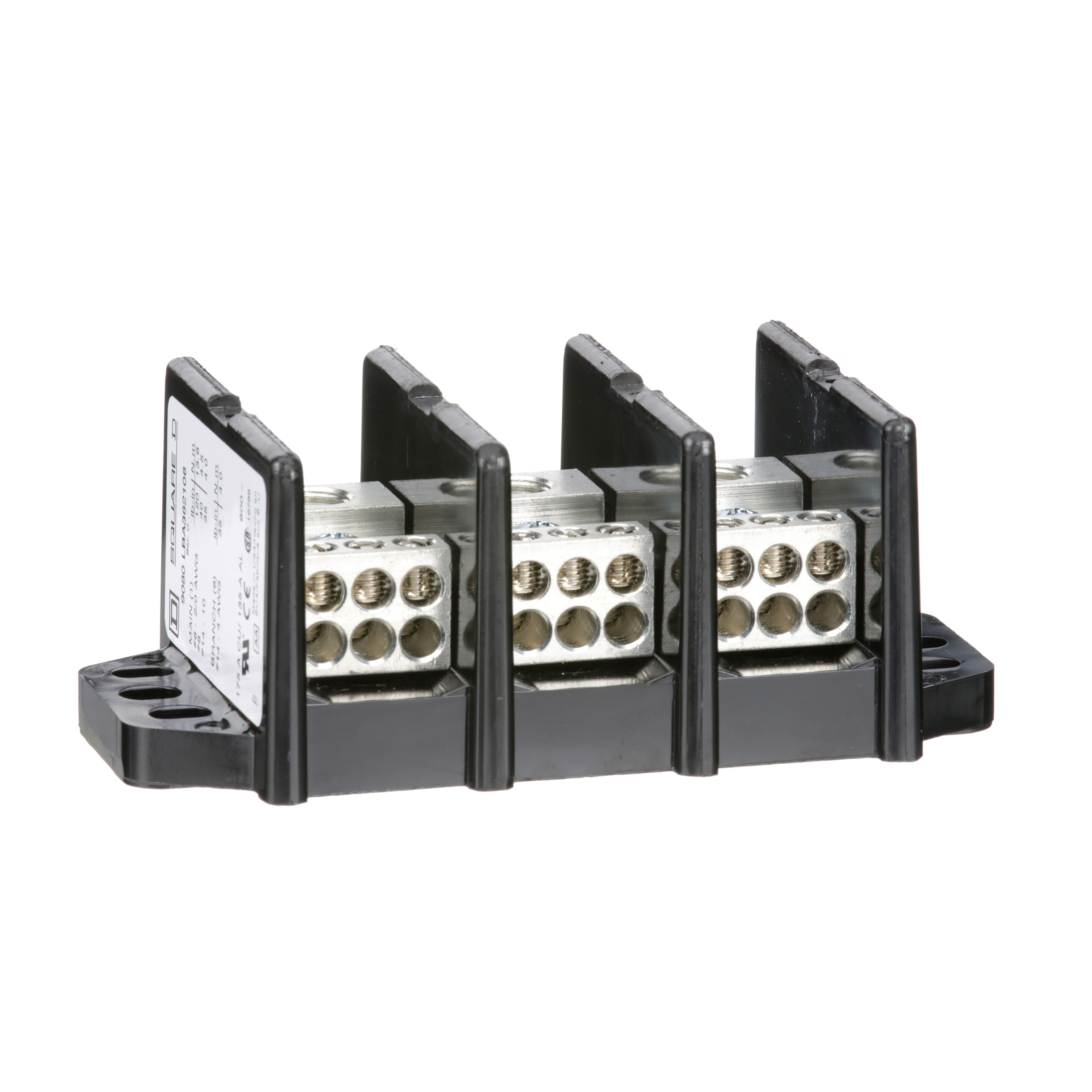

Square D™ TeSys™ Power Distribution Block, 600 VAC, 175 A, 3 Poles, 14 to 2/0 AWG Wire, Phenolic
Custom_Product_Images_Illustration
Square D™ TeSys™ Power Distribution Block, 600 VAC, 175 A, 3 Poles, 14 to 2/0 AWG Wire, Phenolic
SKU96717
MFGR #9080LBA362106
Your Cost: $148.27/ea
List: Square D 9080LBA362106 POWER DISTRIBUTION BLOCK 600V 175A,(1)#14 to #2/0 AWG (6)#14 to #4 AWG,175A 135A,600 V AC,9080LB,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
Square D 9080LBA362106 POWER DISTRIBUTION BLOCK 600V 175A,(1)#14 to #2/0 AWG (6)#14 to #4 AWG,175A 135A,600 V AC,9080LB,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
Alternate Catalog Number 9080LBA362106 Amperage Rating 175-175 A COPPER-135-135 A ALUMINIUM Application 9080LB ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number 9080LBA362106 Connection Tin plated aluminium lugs;Line lug 40 lbf.in AWG 8 copper or aluminium;line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium;line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium;load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium Country of Origin US Currency USD Dimensions 5.37 in L x 2.1 in W x 2.9 in H EU RoHS Indicator Y Gross Volume Per Pack 31.75 Gross Volume per Pack Metric 520.32 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.7500 lb Gross Weight per Pack Metric 349.27 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536904000 Height 5.5880 in Height [Metric] 7.1120 cm Item Group 21711 Length 13.9700 in Length [Metric] 13.7160 cm Manufacturer Schneider Electric Material PHENOLIC BLOCK Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372987&lang=en-us Mounting Surface Mount Returnable Y Size 2.06 IN,2.9 IN,5.38 IN Standard UL RECOGNIZED E60616 CCN XCFR2-CSA FILE 70361 CLASS 6228 01-CE Stock Status NORMALLY STOCKED Type Power distribution block UNSPSC 39121410 UPC 11 78590113261 UPC 12 785901132615 Voltage Rating 600 VAC//VDC Warranty Description Contractual Warranty:18 months Width 7.6200 in Width [Metric] 5.3340 cm Wire Size LINE 2 , AWG 14...AWG 2/0, COPPER OR ALUMINIUM-LOAD 6 , AWG 14...AWG 4, COPPER OR ALUMINIUM VAC//VDC 9080LB LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK Open Power Distribution Blocks Available in a wide variety of sizes These open power distribution blocks are available in one, two, and three pole versions. They are available with either aluminum or copper lugs. Many blocks have been tested to achieve SCCR up to 100 kA. They are UL component recognized, CSA approved and RoHS compliant A selection of covers completes this family
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9080LBA362106 |
| Amperage Rating | 175-175 A COPPER-135-135 A ALUMINIUM |
| Application | 9080LB |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | 9080LBA362106 |
| Connection | Tin plated aluminium lugs;Line lug 40 lbf.in AWG 8 copper or aluminium;line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium;line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium;load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 5.37 in L x 2.1 in W x 2.9 in H |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 31.75 |
| Gross Volume per Pack Metric | 520.32 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.7500 lb |
| Gross Weight per Pack Metric | 349.27 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 5.5880 in |
| Height [Metric] | 7.1120 cm |
| Item Group | 21711 |
| Length | 13.9700 in |
| Length [Metric] | 13.7160 cm |
| Manufacturer | Schneider Electric |
| Material | PHENOLIC BLOCK |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372987&lang=en-us |
| Mounting | Surface Mount |
| Returnable | Y |
| Size | 2.06 IN,2.9 IN,5.38 IN |
| Standard | UL RECOGNIZED E60616 CCN XCFR2-CSA FILE 70361 CLASS 6228 01-CE |
| Stock Status | NORMALLY STOCKED |
| Type | Power distribution block |
| UNSPSC | 39121410 |
| UPC 11 | 78590113261 |
| UPC 12 | 785901132615 |
| Voltage Rating | 600 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.6200 in |
| Width [Metric] | 5.3340 cm |
| Wire Size | LINE 2 , AWG 14...AWG 2/0, COPPER OR ALUMINIUM-LOAD 6 , AWG 14...AWG 4, COPPER OR ALUMINIUM VAC//VDC |
| 9080LB |
| LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK |
| Open Power Distribution Blocks |
| Available in a wide variety of sizes |
| These open power distribution blocks are available in one, two, and three pole versions. |
| They are available with either aluminum or copper lugs. |
| Many blocks have been tested to achieve SCCR up to 100 kA. |
| They are UL component recognized, CSA approved and RoHS compliant |
| A selection of covers completes this family |
