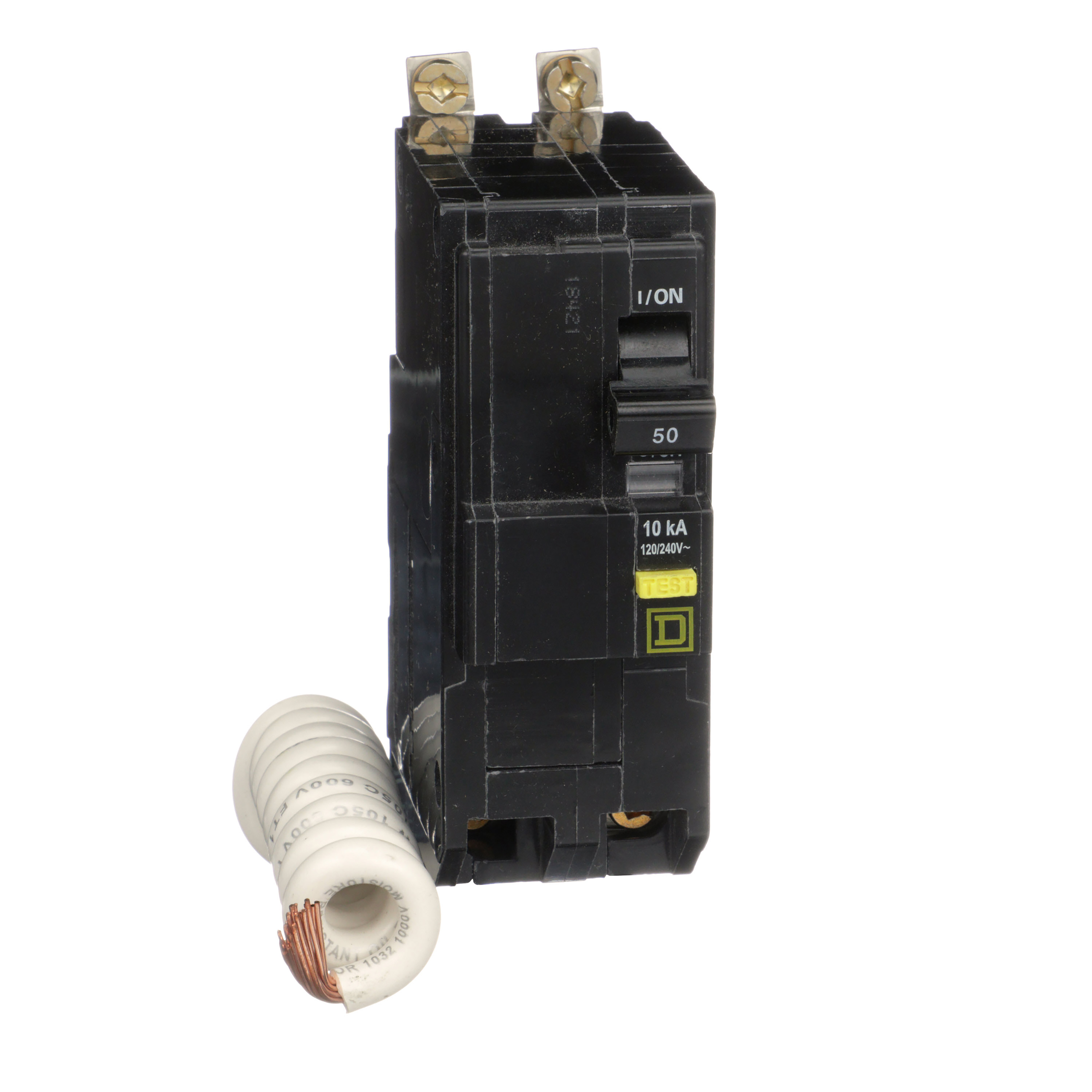

Square D™ Qwik-Gard® QOB250GFI Ground-Fault Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ Qwik-Gard® QOB250GFI Ground-Fault Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles
SKU97961
MFGR #QOB250GFI
$/ea
Square D QOB250GFI MINIATURE CIRCUIT BREAKER 120/240V 50A,1-Phase,10kA,120/240 Vac,50A,Box Lugs #12 to #4 AWG(Al) - #14 to #6 AWG(Cu),Ground Fault Protecting (Class A 6mA) Bolt-On,Miniature Circuit Breaker,Provides overload and short circuit protection Designed to offer Class A ground-fault protection for people,QO,UL Listed - CSA Certified
Square D QOB250GFI MINIATURE CIRCUIT BREAKER 120/240V 50A,1-Phase,10kA,120/240 Vac,50A,Box Lugs #12 to #4 AWG(Al) - #14 to #6 AWG(Cu),Ground Fault Protecting (Class A 6mA) Bolt-On,Miniature Circuit Breaker,Provides overload and short circuit protection Designed to offer Class A ground-fault protection for people,QO,UL Listed - CSA Certified
Alternate Catalog Number QOB250GFI Amperage Rating 50 A Application Not rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB250GFI Connection BOX LUGS #12 TO #4 AWG(AL) - #14 TO #6 AWG(CU) Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L EU RoHS Indicator Y Frequency Rating 60 Hz Gross Volume Per Pack 41.98 Gross Volume per Pack Metric 687.86 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.7174 lb Gross Weight per Pack Metric 471.74 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 5.5880 in Height [Metric] 5.5880 cm Interrupt Rating 10 kA Item Group 00015 Length 13.4620 in Length [Metric] 13.4620 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401075&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 40 °C Phase 1 pH Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number NQ30L2C Temperature Rating 104 °F Trip Type Thermal Magnetic Type Class A Miniature UNSPSC 39121603 UPC 11 78590136297 UPC 12 785901362975 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 9.1440 in Width [Metric] 9.1440 cm Wire Size 12 to 4 AWG/14 to 6 AWG Not rated GROUND FAULT PROTECTING (CLASS A 6MA) BOLT-ON Qwik-Gard™ GFCIs provide the same branch circuit protection as standard QO™ circuit breakers They are longer than standard QO™ circuit breakers and thus require more gutter space Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current For use with NQOD panelboards/interiors Common trip Common trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB250GFI |
| Amperage Rating | 50 A |
| Application | Not rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB250GFI |
| Connection | BOX LUGS #12 TO #4 AWG(AL) - #14 TO #6 AWG(CU) |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L |
| EU RoHS Indicator | Y |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 41.98 |
| Gross Volume per Pack Metric | 687.86 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.7174 lb |
| Gross Weight per Pack Metric | 471.74 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 5.5880 in |
| Height [Metric] | 5.5880 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00015 |
| Length | 13.4620 in |
| Length [Metric] | 13.4620 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401075&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | NQ30L2C |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Class A Miniature |
| UNSPSC | 39121603 |
| UPC 11 | 78590136297 |
| UPC 12 | 785901362975 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.1440 in |
| Width [Metric] | 9.1440 cm |
| Wire Size | 12 to 4 AWG/14 to 6 AWG |
| Not rated |
| GROUND FAULT PROTECTING (CLASS A 6MA) BOLT-ON |
| Qwik-Gard™ GFCIs provide the same branch circuit protection as standard QO™ circuit breakers |
| They are longer than standard QO™ circuit breakers and thus require more gutter space |
| Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current |
| For use with NQOD panelboards/interiors |
| Common trip |
| Common trip |
