Square D™

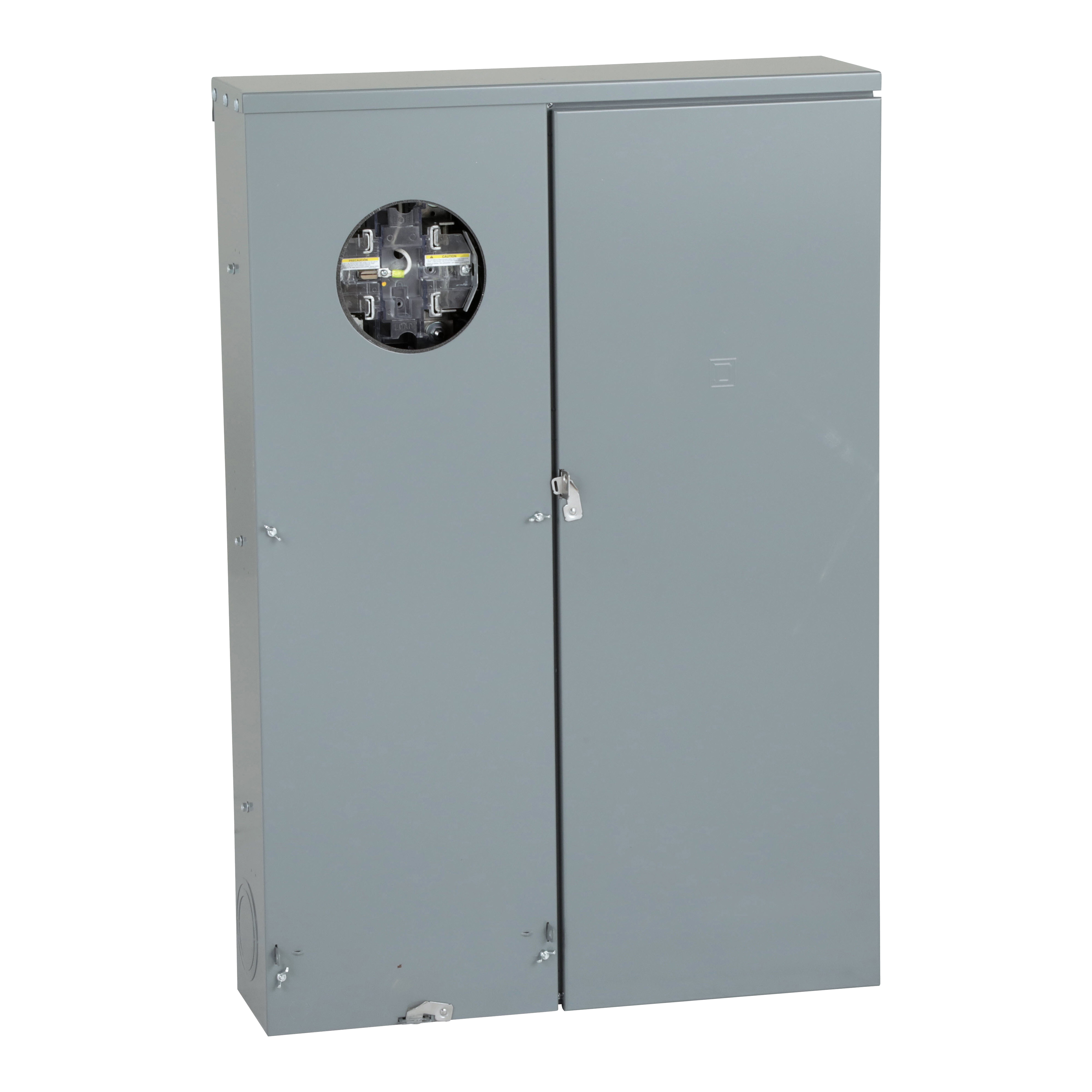

Square D™ QU816D400CL METER MAIN 400A RIN

Custom_Product_Images_Illustration

Square D™

Square D™ QU816D400CL METER MAIN 400A RIN

SKU469897

MFGR #QU816D400CL

Price Not Available
Square D QU816D400CL METER MAIN 400A RINGLESS,120/240 Vac,400A,Meter Mains,QO,Ringless,Surface, Semi-flush with field installed flange kit,UG,UL Listed
Square D QU816D400CL METER MAIN 400A RINGLESS,120/240 Vac,400A,Meter Mains,QO,Ringless,Surface, Semi-flush with field installed flange kit,UG,UL Listed

Alternate Catalog Number

QU816D400CL

ARRA Compliant

N

Buy American Compliant

N

Bypass Type

Class 320 lever bypass

Cable Entry

UG

Catalog Number

QU816D400CL

Country of Origin

MX

Cover Type

Ringless

Currency

USD

Depth

7.87 in

Dimensions

43 in H x 28-1/4 in W

EU RoHS Indicator

Y

Feed Type

Underground

Gross Volume Per Pack

11841.89

Gross Volume per Pack Metric

194053.02

Gross Volume UOM

CI

Gross Volume UOM Metric

cm3

Gross Weight Per Pack

114.9900 lb

Gross Weight per Pack Metric

52.16

Gross Weight UOM Metric

kg

Harmonization Tariff Schedule Code

8537109150

Height

24.4000 in

Height [Metric]

24.4000 cm

Hub Opening

A-L

Hub Size

2-1/2 in, 3 in, 3-1/2 in, 4 in

Hub Type

A-L

Item Group

00022

Length

106.9000 in

Length [Metric]

106.9000 cm

Line Side Wire Range

AWG 4...250 kcmil aluminium)service ground;AWG 4...250 kcmil copper)service ground

Material Composition Declaration

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361685&lang=en-us

Mounting

SURFACE, SEMI-FLUSH WITH FIELD INSTALLED FLANGE KIT

Mounting Type

Flush

Number Of Cutouts

8

Number of Jaws

5

Returnable

Y

Size

28.25 IN,43 IN

Standard

UL LISTED

Sub Brand

QO

Terminal Type

Stud/Service Ground/Feed Through Lug

Type

8-Circuit 16-Space Field Installed Rainproof

UNSPSC

39121102

UPC 11

78590142984

UPC 12

785901429845

Warranty Description

Contractual Warranty:18 months

Width

74.4000 in

Width [Metric]

74.4000 cm

Wire Size

4 AWG to 250 kcmil Aluminum/Copper

Stock Status

NONSTOCK

Brand

Square D™

Manufacturer

Schneider Electric

Amperage Rating

400 A

Enclosure Type

NEMA 3R

Phase

1

Voltage Rating

120/240 VAC
