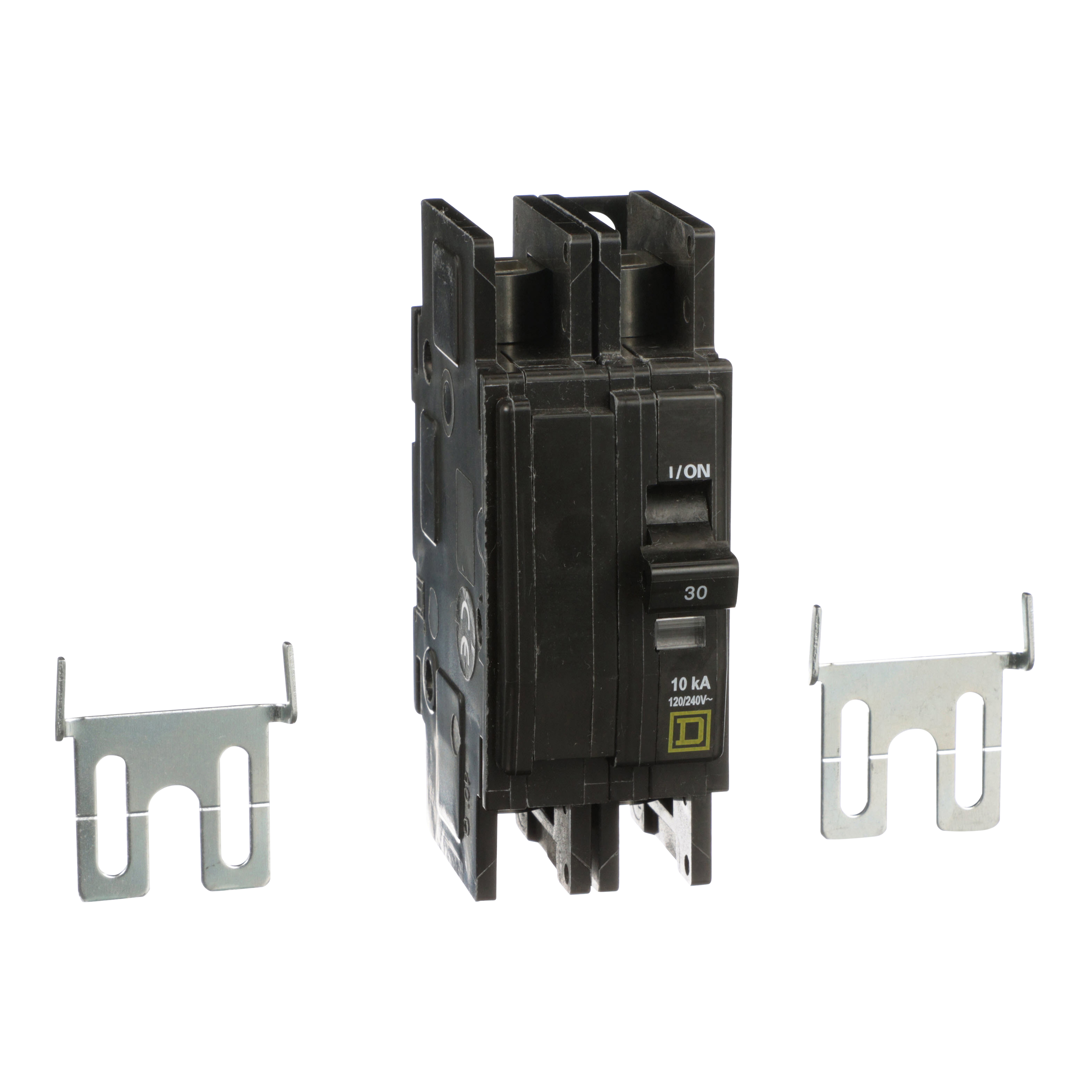

Square D™ QOUR230 Type QOU Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA at 120/240 VAC/5 kA at 48 VDC Interrupt
Custom_Product_Images_Illustration
Square D™ QOUR230 Type QOU Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA at 120/240 VAC/5 kA at 48 VDC Interrupt
SKU96386
MFGR #QOUR230
$/ea
Square D QOUR230 MINIATURE CIRCUIT BREAKER 120/240V 30A,1-Phase,10kA,120/240VAC,2-Pole,30A,Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
Square D QOUR230 MINIATURE CIRCUIT BREAKER 120/240V 30A,1-Phase,10kA,120/240VAC,2-Pole,30A,Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
Alternate Catalog Number QOUR230 Application HACR and Switching Duty rated ARRA Compliant N Buy American Compliant N Catalog Number QOUR230 Connection AWG 14...AWG 2 ALUMINIUM/COPPER,SLOTTED BOX LUGS, LINE SIDE-SLOTTED BOX LUGS, LOAD SIDE Connection Type Line/Load Lug Country of Origin MX Currency USD Depth 2.95 in Dimensions 4.05 in H x 1.5 in W x 2.63 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 20.34 Gross Volume per Pack Metric 333.25 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.6741 lb Gross Weight per Pack Metric 367.41 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 7.8740 in Height [Metric] 7.8740 cm Item Group 00900 Length 4.0640 in Length [Metric] 4.0640 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403237&lang=en-us Mounting Type Unit Number Of Poles 2 Phase 1 Returnable Y Standard IEC-UL LISTED-CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QOU Substitute Product Catalog Number QOU2PAFLA Temperature Rating 14 to 140 °F Type Type QOU UNSPSC 39121603 UPC 11 78590107933 UPC 12 785901079330 Warranty Description Contractual Warranty:18 months Width 10.4140 in Width [Metric] 10.4140 cm Wire Size 14 to 2 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Interrupt Rating 10 kA at 120/240 VAC/5 kA at 48 VDC kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC/48 VDC HACR and Switching Duty rated BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED,SLOTTED BOX LUGS (LINE AND LOAD) Automatically open a circuit under overload or short circuit conditions Feature common tripping of all poles Visi-Trip™ on all the circuit breakers for easy trip detection Can be flush-, surface-, or DIN rail- Mounted has lugs at both ends (cable-in/cable-out construction) Operate in any position Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOUR230 |
| Application | HACR and Switching Duty rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOUR230 |
| Connection | AWG 14...AWG 2 ALUMINIUM/COPPER,SLOTTED BOX LUGS, LINE SIDE-SLOTTED BOX LUGS, LOAD SIDE |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.95 in |
| Dimensions | 4.05 in H x 1.5 in W x 2.63 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 20.34 |
| Gross Volume per Pack Metric | 333.25 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.6741 lb |
| Gross Weight per Pack Metric | 367.41 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 7.8740 in |
| Height [Metric] | 7.8740 cm |
| Item Group | 00900 |
| Length | 4.0640 in |
| Length [Metric] | 4.0640 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403237&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | Y |
| Standard | IEC-UL LISTED-CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QOU |
| Substitute Product Catalog Number | QOU2PAFLA |
| Temperature Rating | 14 to 140 °F |
| Type | Type QOU |
| UNSPSC | 39121603 |
| UPC 11 | 78590107933 |
| UPC 12 | 785901079330 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 10.4140 in |
| Width [Metric] | 10.4140 cm |
| Wire Size | 14 to 2 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Interrupt Rating | 10 kA at 120/240 VAC/5 kA at 48 VDC kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC/48 VDC |
| HACR and Switching Duty rated |
| BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED,SLOTTED BOX LUGS (LINE AND LOAD) |
| Automatically open a circuit under overload or short circuit conditions |
| Feature common tripping of all poles |
| Visi-Trip™ on all the circuit breakers for easy trip detection |
| Can be flush-, surface-, or DIN rail- Mounted |
| has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
| Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings |
