Square D™

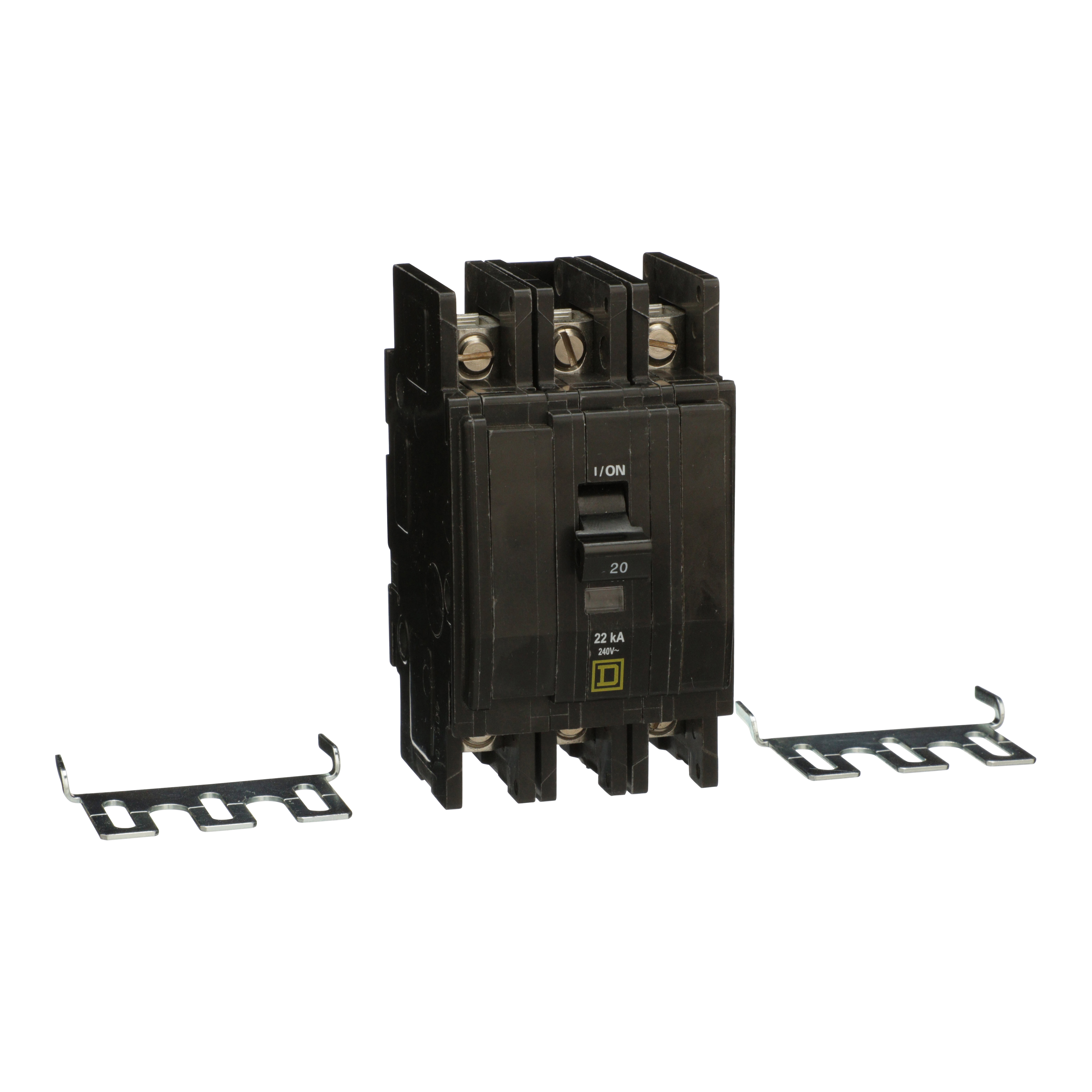

Square D™ QOU320VH Type QOU Miniature Circuit Breaker, 240 VAC, 20 A, 22 kA at 240 VAC/5 kA at 48 VDC Interrupt, 3 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ QOU320VH Type QOU Miniature Circuit Breaker, 240 VAC, 20 A, 22 kA at 240 VAC/5 kA at 48 VDC Interrupt, 3 Poles
SKU966639
MFGR #QOU320VH
Your Cost: $507.21/ea
Square D QOU320VH MINIATURE CIRCUIT BREAKER 240V 20A,20A,22kA,240VAC,3P,HACR rated,Line Box Lug - Load Box Lug #14-2 AWG(Al/Cu),Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
Square D QOU320VH MINIATURE CIRCUIT BREAKER 240V 20A,20A,22kA,240VAC,3P,HACR rated,Line Box Lug - Load Box Lug #14-2 AWG(Al/Cu),Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
Alternate Catalog Number QOU320VH Application HACR and Switching Duty rated ARRA Compliant N Buy American Compliant N Catalog Number QOU320VH Connection LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU) Connection Type Line/Load Lug Country of Origin MX Currency USD Depth 2.95 in Dimensions 5 in H x 2.25 in W x 2.95 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 50.30 Gross Volume per Pack Metric 824.27 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.1100 lb Gross Weight per Pack Metric 503.49 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 10.2870 in Height [Metric] 10.2870 cm Item Group 00900 Length 7.6960 in Length [Metric] 7.6960 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402769&lang=en-us Mounting Type Unit Number Of Poles 3 Phase 3 Returnable N Standard UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QOU Substitute Product Catalog Number BCV Temperature Rating 14 to 140 °F Type Type QOU UNSPSC 39121603 UPC 11 78590156001 UPC 12 785901560012 Warranty Description Contractual Warranty:18 months Width 7.5180 in Width [Metric] 7.5180 cm Wire Size 14 to 2 AWG Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 22 kA at 240 VAC/5 kA at 48 VDC Trip Type Thermal Magnetic Voltage Rating 240 VAC HACR and Switching Duty rated STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) Automatically open a circuit under overload or short circuit conditions Feature common tripping of all poles Visi-Trip™ on all the circuit breakers for easy trip detection Can be flush-, surface-, or DIN rail- Mounted has lugs at both ends (cable-in/cable-out construction) Operate in any position Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU320VH |
| Application | HACR and Switching Duty rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU320VH |
| Connection | LINE: BOX LUG - LOAD: BOX LUG #14-2 AWG(AL/CU) |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.95 in |
| Dimensions | 5 in H x 2.25 in W x 2.95 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 50.30 |
| Gross Volume per Pack Metric | 824.27 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.1100 lb |
| Gross Weight per Pack Metric | 503.49 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 10.2870 in |
| Height [Metric] | 10.2870 cm |
| Item Group | 00900 |
| Length | 7.6960 in |
| Length [Metric] | 7.6960 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402769&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | N |
| Standard | UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QOU |
| Substitute Product Catalog Number | BCV |
| Temperature Rating | 14 to 140 °F |
| Type | Type QOU |
| UNSPSC | 39121603 |
| UPC 11 | 78590156001 |
| UPC 12 | 785901560012 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.5180 in |
| Width [Metric] | 7.5180 cm |
| Wire Size | 14 to 2 AWG Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 22 kA at 240 VAC/5 kA at 48 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| HACR and Switching Duty rated |
| STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
| Automatically open a circuit under overload or short circuit conditions |
| Feature common tripping of all poles |
| Visi-Trip™ on all the circuit breakers for easy trip detection |
| Can be flush-, surface-, or DIN rail- Mounted |
| has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
| Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings |
