Square D™

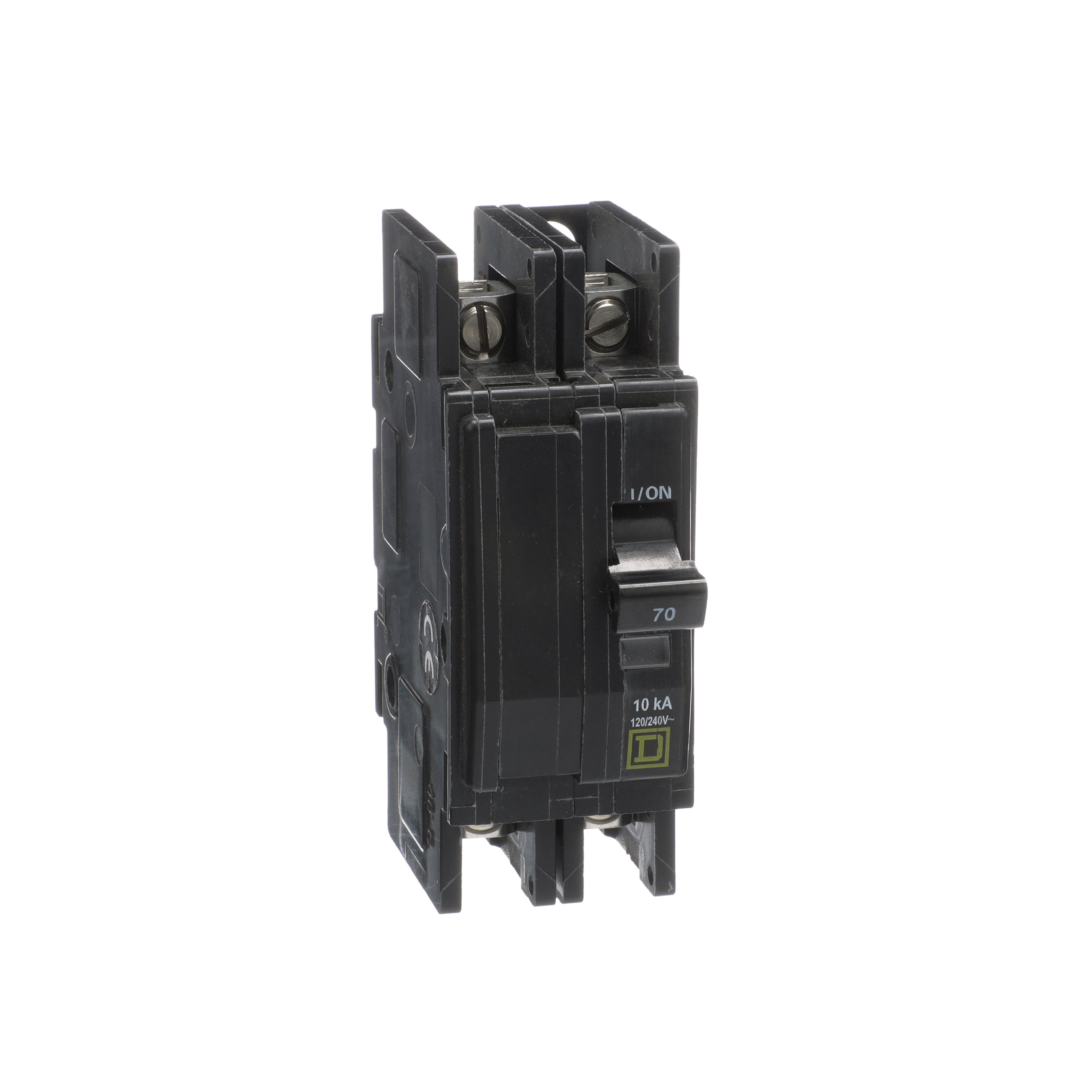

Square D™ QOU270B Standard Miniature Circuit Breaker, 120/240 VAC, 48 VDC, 70 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QOU270B Standard Miniature Circuit Breaker, 120/240 VAC, 48 VDC, 70 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
SKUPDW~11767075
MFGR #QOU270B
Your Cost: $177.06/ea
List: Square D™ Miniature Circuit Breaker, Standard, Series: QOU, 120/240 VAC, 48 VDC, 70 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Toggle Actuator, Slotted Box Lug Line/Load Side Connection, 12 to 2/0 AWG Wire, DIN Rail/Flush Mounting, 104 deg F, 4.45 in H x 1.5 in W x 2.95 in D Dimensions, Black
Square D™ Miniature Circuit Breaker, Standard, Series: QOU, 120/240 VAC, 48 VDC, 70 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Toggle Actuator, Slotted Box Lug Line/Load Side Connection, 12 to 2/0 AWG Wire, DIN Rail/Flush Mounting, 104 deg F, 4.45 in H x 1.5 in W x 2.95 in D Dimensions, Black
Actuator Type Toggle Alternate Catalog Number QOU270B Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOU270B Color Black Connection AWG 12...AWG 2/0 aluminium/copper;Slotted box lugs, line side;slotted box lugs, load side Connection Type Slotted Box Lug Line/Load Country of Origin MX Currency USD Depth 2.95 in Dimensions 4.45 in H x 1.5 in W x 2.95 in D EU RoHS Indicator Y Frequency Rating 50/60 Gross Weight Per Pack 3.3566 lb Gross Weight per Pack Metric 335.66 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.8100 in Height [Metric] 3.8100 cm Item Group 00900 Length 10.4140 in Length [Metric] 10.4140 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402615&lang=en-us Mounting Type DIN Rail/Flush Number Of Poles 2 Phase 1 Returnable N Series QOU Standard CSA-UL LISTED-IEC Sub Brand QOU Substitute Product Catalog Number BCV Temperature Rating 104 Type Standard UNSPSC 39121603 UPC 11 78590176061 UPC 12 785901760610 Warranty Description Contractual Warranty:18 months Width 7.6200 in Width [Metric] 7.6200 cm Wire Size 12 to 2/0 Brand Square D™ Manufacturer Schneider Electric Amperage Rating 70 A Interrupt Rating 10 kA at 120/240 VAC, 5 kA at 48 VDC Trip Type Thermal Magnetic Voltage Rating 120/240 VAC, 48 VDC HACR rated BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED,SLOTTED BOX LUGS (LINE AND LOAD)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | QOU270B |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU270B |
| Color | Black |
| Connection | AWG 12...AWG 2/0 aluminium/copper;Slotted box lugs, line side;slotted box lugs, load side |
| Connection Type | Slotted Box Lug Line/Load |
| Country of Origin | MX |
| Currency | USD |
| Depth | 2.95 in |
| Dimensions | 4.45 in H x 1.5 in W x 2.95 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 3.3566 lb |
| Gross Weight per Pack Metric | 335.66 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.8100 in |
| Height [Metric] | 3.8100 cm |
| Item Group | 00900 |
| Length | 10.4140 in |
| Length [Metric] | 10.4140 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402615&lang=en-us |
| Mounting Type | DIN Rail/Flush |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Series | QOU |
| Standard | CSA-UL LISTED-IEC |
| Sub Brand | QOU |
| Substitute Product Catalog Number | BCV |
| Temperature Rating | 104 |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590176061 |
| UPC 12 | 785901760610 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.6200 in |
| Width [Metric] | 7.6200 cm |
| Wire Size | 12 to 2/0 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 70 A |
| Interrupt Rating | 10 kA at 120/240 VAC, 5 kA at 48 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC, 48 VDC |
| HACR rated |
| BOX LUGS LINE SIDE SLOTTED-BOX LUGS LOAD SIDE SLOTTED,SLOTTED BOX LUGS (LINE AND LOAD) |
