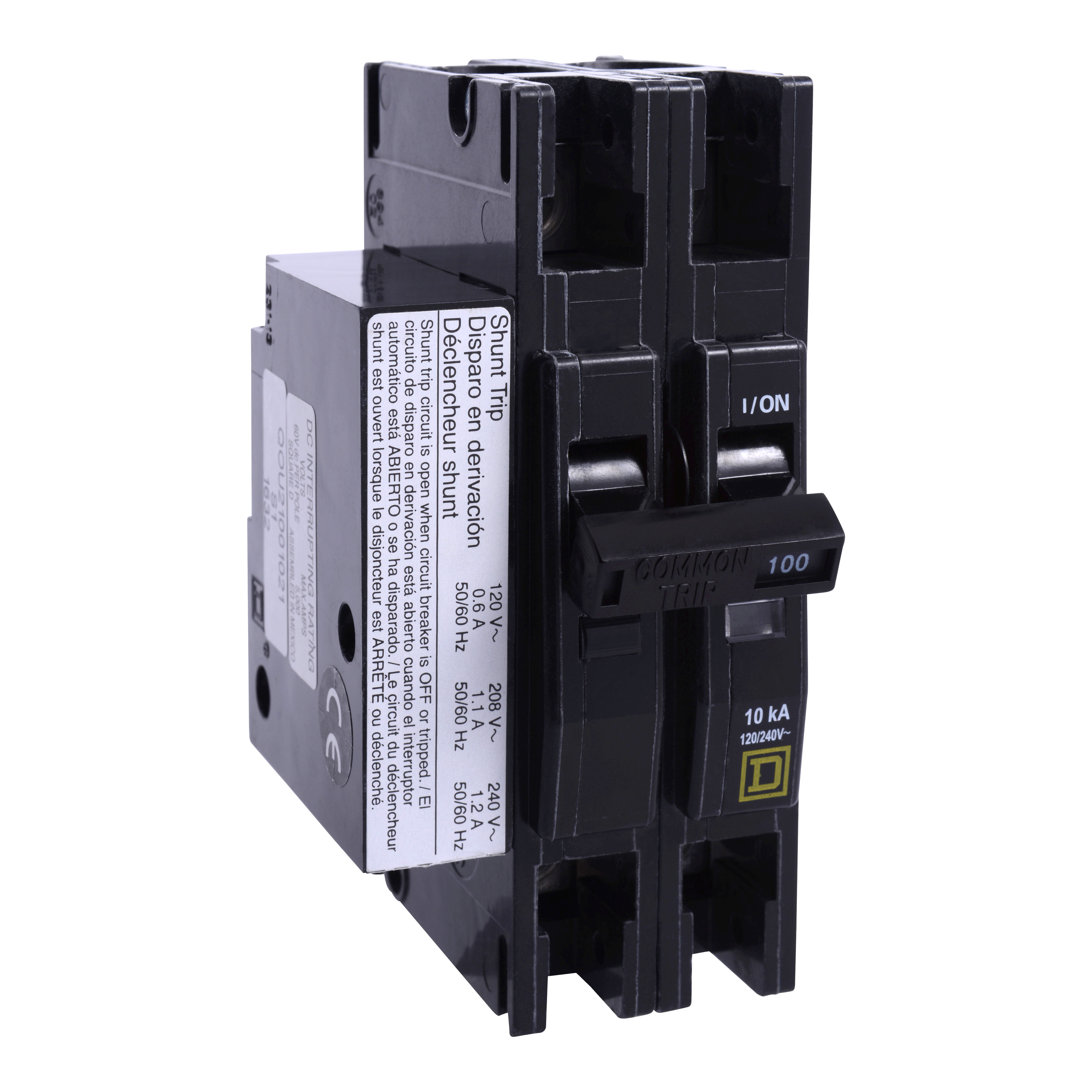

Square D™ QOU21001021 Type QOU Standard Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Poles, Shunt/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QOU21001021 Type QOU Standard Miniature Circuit Breaker, 120/240 VAC, 100 A, 10 kA Interrupt, 2 Poles, Shunt/Thermal Magnetic Trip
SKUPDW~6414594
MFGR #QOU21001021
Your Cost: $424.52/ea
List: Square D™ Miniature Circuit Breaker, Type QOU Standard, 120/240 VAC, 100 A, 50/60 Hz Frequency, 10 kA Interrupt, Shunt/Thermal Magnetic Trip, 2 Pole, 1 ph, Line/Load Box Lug Connection, 12 to 2/0 AWG Wire, DIN Rail/Flush/Surface Mounting, 14 to 140 deg F, 2.95 in L x 1.32 in W x 6.3 in H Dimensions
Square D™ Miniature Circuit Breaker, Type QOU Standard, 120/240 VAC, 100 A, 50/60 Hz Frequency, 10 kA Interrupt, Shunt/Thermal Magnetic Trip, 2 Pole, 1 ph, Line/Load Box Lug Connection, 12 to 2/0 AWG Wire, DIN Rail/Flush/Surface Mounting, 14 to 140 deg F, 2.95 in L x 1.32 in W x 6.3 in H Dimensions
Alternate Catalog Number QOU21001021 Application Commercial HVAC and Wastewater Treatment Applications ARRA Compliant N Buy American Compliant N Catalog Number QOU21001021 Connection AWG 12...AWG 2/0 aluminium/copper;Slotted box lugs, line side;slotted box lugs, load side Country of Origin US Currency USD Depth 2.95 in EU RoHS Indicator Y Gross Weight Per Pack 5.6246 lb Gross Weight per Pack Metric 562.46 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 11.3280 in Height [Metric] 11.3280 cm Item Group 00900 Length 6.5790 in Length [Metric] 6.5790 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402123&lang=en-us Number Of Poles 2 Returnable N Standard UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 Sub Brand QOU Substitute Product Catalog Number QOU1PL Type MINIATURE CIRCUIT-BREAKER UNSPSC 39121603 UPC 11 78590127218 UPC 12 785901272182 Warranty Description Contractual Warranty:18 months Width 5.6640 in Width [Metric] 5.6640 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 10kA Voltage Rating 120/240 V AC;120 V AC;60 V DC Commercial HVAC and Wastewater Treatment Applications STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) Provide a means to manually open a circuit Automatically open a circuit under overload or short circuit conditions Features common tripping of all poles Have a Visi-Trip™ trip indicator Has lugs at both ends (cable-in/cable-out construction) Operate in any position
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOU21001021 |
| Application | Commercial HVAC and Wastewater Treatment Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOU21001021 |
| Connection | AWG 12...AWG 2/0 aluminium/copper;Slotted box lugs, line side;slotted box lugs, load side |
| Country of Origin | US |
| Currency | USD |
| Depth | 2.95 in |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 5.6246 lb |
| Gross Weight per Pack Metric | 562.46 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 11.3280 in |
| Height [Metric] | 11.3280 cm |
| Item Group | 00900 |
| Length | 6.5790 in |
| Length [Metric] | 6.5790 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402123&lang=en-us |
| Number Of Poles | 2 |
| Returnable | N |
| Standard | UL489 LISTED - CSA 22.2 #5.1 CERTIFIED - IEC RATED 60947-2 |
| Sub Brand | QOU |
| Substitute Product Catalog Number | QOU1PL |
| Type | MINIATURE CIRCUIT-BREAKER |
| UNSPSC | 39121603 |
| UPC 11 | 78590127218 |
| UPC 12 | 785901272182 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 5.6640 in |
| Width [Metric] | 5.6640 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 10kA |
| Voltage Rating | 120/240 V AC;120 V AC;60 V DC |
| Commercial HVAC and Wastewater Treatment Applications |
| STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
| Provide a means to manually open a circuit |
| Automatically open a circuit under overload or short circuit conditions |
| Features common tripping of all poles |
| Have a Visi-Trip™ trip indicator |
| Has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
