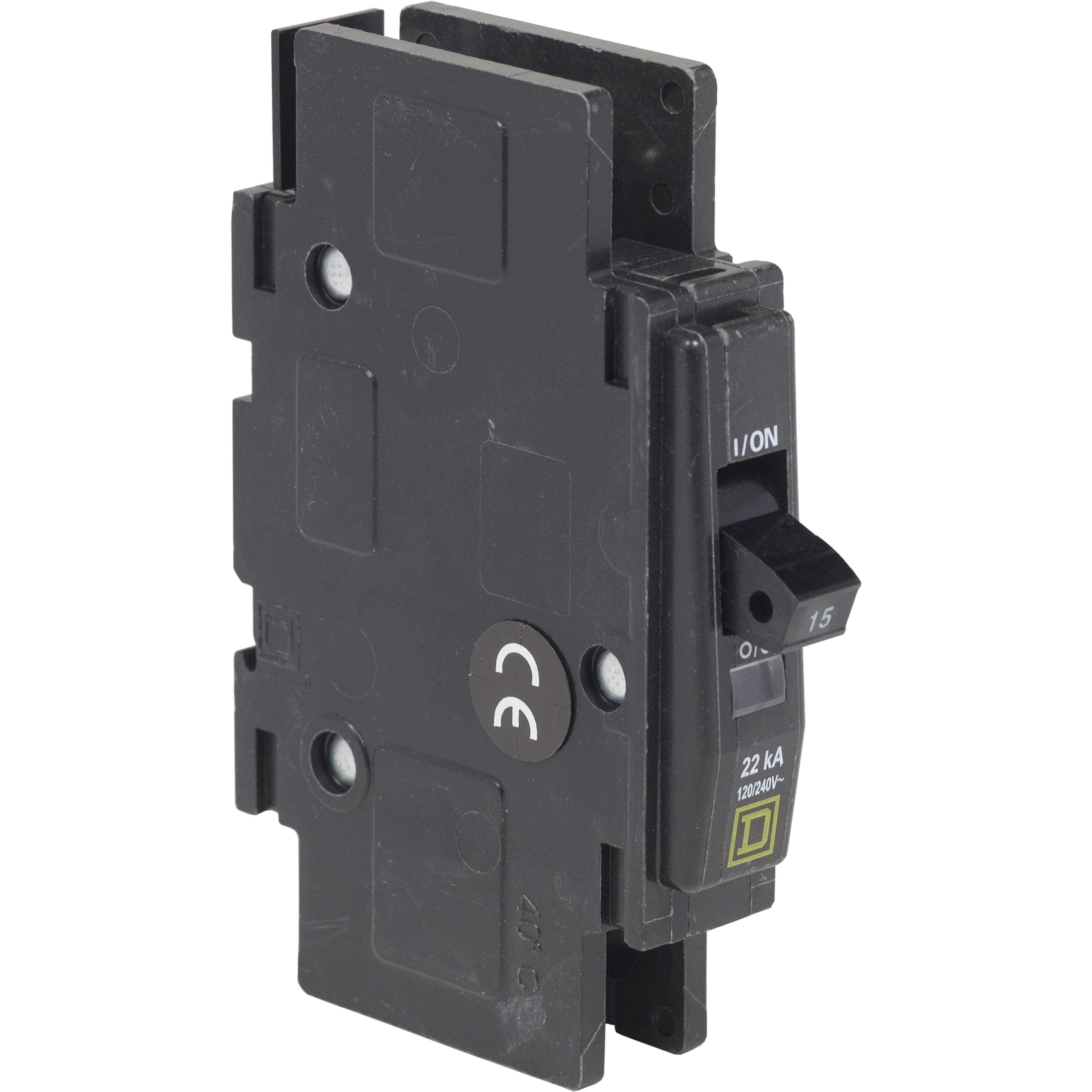

Square D™ QOU115HM Type QOU High Magnetic Miniature Circuit Breaker, 120/240 VAC, 15 A, 1 Pole, Thermal Magnetic Trip
Miniature Circuit Breakers
33135
MFG #: QOU115HM
Square D™
44.32000
/ ea
Square D QOU115HM MINIATURE CIRCUIT BREAKER 120/240V 15A,10kA,120/240VAC,15A,1P,HACR and Switching Duty rated,Line Box Lug - Load Box Lug #14-2 AWG(Al/Cu),Miniature Circuit Breaker,QOU,Standard Flush, Surface or DIN Rail (35mm),UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog URL - Square_D_QOU1100_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_OPSX3V4ECMFWDQUZ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_T7LUMQSZIFAJRE5N.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0102DB2301.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_J2DMHIR8T3FP970V.dwg(Tech Drawing URL)
- Applications
- Features
| HACR and Switching Duty rated |
| STANDARD FLUSH, SURFACE OR DIN RAIL (35MM) |
| Automatically open a circuit under overload or short circuit conditions |
| Feature common tripping of all poles |
| Visi-Trip on all the circuit breakers for easy trip detection |
| Can be flush-, surface-, or DIN rail- Mounted |
| has lugs at both ends (cable-in/cable-out construction) |
| Operate in any position |
| Are fully tested, UL Listed, and CSA certified for reverse connection without restrictive line/load markings |
