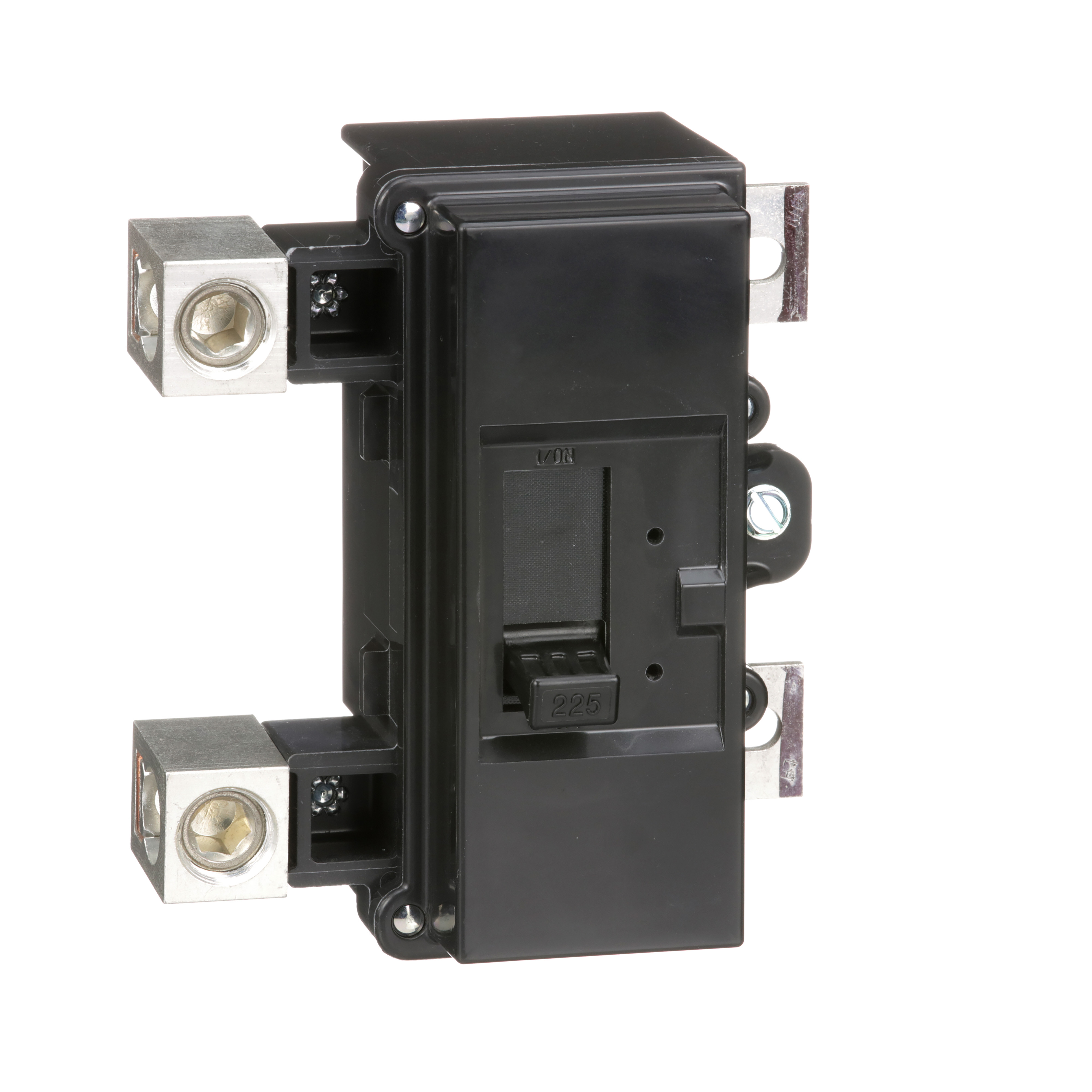

Square D™ QOM2225VH Miniature Circuit Breaker, 240 VAC, 225 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOM2225VH Miniature Circuit Breaker, 240 VAC, 225 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU113202
MFGR #QOM2225VH
Your Cost: $212.10/ea
List: Square D QOM2225VH MINIATURE CIRCUIT BREAKER 120/240V 225A,1-Phase,225A,22kA,240VAC,Bolt-On,Box Lugs,Circuit breaker,Load Center Main Breaker,UL Listed - CSA Certified
Square D QOM2225VH MINIATURE CIRCUIT BREAKER 120/240V 225A,1-Phase,225A,22kA,240VAC,Bolt-On,Box Lugs,Circuit breaker,Load Center Main Breaker,UL Listed - CSA Certified
Alternate Catalog Number QOM2225VH Application LOAD CENTER MAIN BREAKER ARRA Compliant N Buy American Compliant N Catalog Number QOM2225VH Connection BOX LUGS Connection Type Box Lug Country of Origin MX Currency USD Current Rating 225 A Dimensions 5.6 in H x 5.07 in W x 3.6 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 151.36 Gross Volume per Pack Metric 2480.34 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.6700 lb Gross Weight per Pack Metric 1.21 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 10.4000 in Height [Metric] 10.4000 cm Item Group 00100 Length 16.3000 in Length [Metric] 16.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436439&lang=en-us Mounting Type Bolt-On Number Of Phases 1 Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Sub Brand QOM2 Substitute Product Catalog Number QO1PA Temperature Rating 104 °F Trip Range 225 A Type Standard UNSPSC 39121601 UPC 11 78590100407 UPC 12 785901004073 Warranty Description Contractual Warranty:18 months Width 14.0000 in Width [Metric] 14.0000 cm Wire Size 4 AWG to 300 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 225 A Interrupt Rating 22 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC LOAD CENTER MAIN BREAKER BOLT-ON 4 AWG to 300 kcmil aluminum copper wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOM2225VH |
| Application | LOAD CENTER MAIN BREAKER |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOM2225VH |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 225 A |
| Dimensions | 5.6 in H x 5.07 in W x 3.6 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 151.36 |
| Gross Volume per Pack Metric | 2480.34 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.6700 lb |
| Gross Weight per Pack Metric | 1.21 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 10.4000 in |
| Height [Metric] | 10.4000 cm |
| Item Group | 00100 |
| Length | 16.3000 in |
| Length [Metric] | 16.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436439&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | QOM2 |
| Substitute Product Catalog Number | QO1PA |
| Temperature Rating | 104 °F |
| Trip Range | 225 A |
| Type | Standard |
| UNSPSC | 39121601 |
| UPC 11 | 78590100407 |
| UPC 12 | 785901004073 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.0000 in |
| Width [Metric] | 14.0000 cm |
| Wire Size | 4 AWG to 300 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 225 A |
| Interrupt Rating | 22 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| LOAD CENTER MAIN BREAKER |
| BOLT-ON |
| 4 AWG to 300 kcmil aluminum copper wire |
