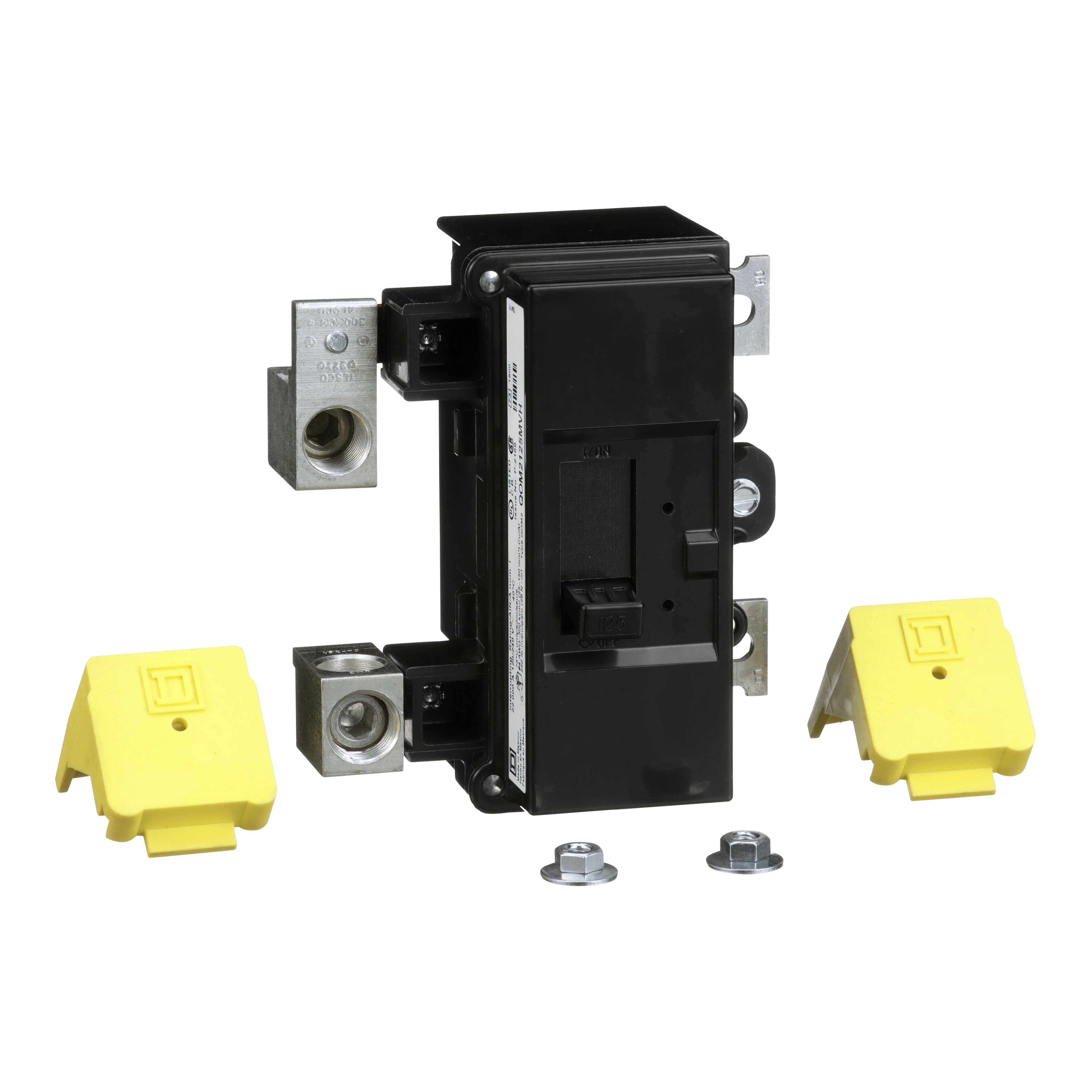

Square D™ QOM2125MVH Type QOM Miniature Circuit Breaker, 120/240 VAC, 125 A, 22 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ QOM2125MVH Type QOM Miniature Circuit Breaker, 120/240 VAC, 125 A, 22 kA Interrupt, 2 Poles
SKU653704
MFGR #QOM2125MVH
Your Cost: $1,328.59/ea
Square D QOM2125MVH MINIATURE CIRCUIT BREAKER 120/240V 125A,QOM2
Square D QOM2125MVH MINIATURE CIRCUIT BREAKER 120/240V 125A,QOM2
Alternate Catalog Number QOM2125MVH Application QO LOAD CENTER,PRIMARY MAIN BREAKER ARRA Compliant N Buy American Compliant N Catalog Number QOM2125MVH Connection AWG 4...300 KCMIL COPPER OR ALUMINIUM,LUGS Connection Type Lug Country of Origin MX Currency USD Current Rating 125 A Dimensions 5.6 in H x 5.07 in W x 3.61 in D EU RoHS Indicator Y Frequency Rating 60 Hz Gross Volume Per Pack 150.53 Gross Volume per Pack Metric 2466.70 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.6900 lb Gross Weight per Pack Metric 1.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 10.6680 in Height [Metric] 10.7000 cm Item Group 00024 Length 16.2560 in Length [Metric] 16.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436367&lang=en-us Mounting Type Bolt-On Number Of Phases 1 Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED-CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QOM2 Substitute Product Catalog Number QO1PA Temperature Rating 104 °F Trip Range 125 Type Type QOM UNSPSC 39121601 UPC 11 78590130151 UPC 12 785901301516 Warranty Description Contractual Warranty:18 months Width 14.2240 in Width [Metric] 13.7000 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Interrupt Rating 22 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC QO LOAD CENTER,PRIMARY MAIN BREAKER BOLT-ON
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOM2125MVH |
| Application | QO LOAD CENTER,PRIMARY MAIN BREAKER |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOM2125MVH |
| Connection | AWG 4...300 KCMIL COPPER OR ALUMINIUM,LUGS |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 125 A |
| Dimensions | 5.6 in H x 5.07 in W x 3.61 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 150.53 |
| Gross Volume per Pack Metric | 2466.70 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.6900 lb |
| Gross Weight per Pack Metric | 1.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 10.6680 in |
| Height [Metric] | 10.7000 cm |
| Item Group | 00024 |
| Length | 16.2560 in |
| Length [Metric] | 16.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436367&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QOM2 |
| Substitute Product Catalog Number | QO1PA |
| Temperature Rating | 104 °F |
| Trip Range | 125 |
| Type | Type QOM |
| UNSPSC | 39121601 |
| UPC 11 | 78590130151 |
| UPC 12 | 785901301516 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 14.2240 in |
| Width [Metric] | 13.7000 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Interrupt Rating | 22 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| QO LOAD CENTER,PRIMARY MAIN BREAKER |
| BOLT-ON |
