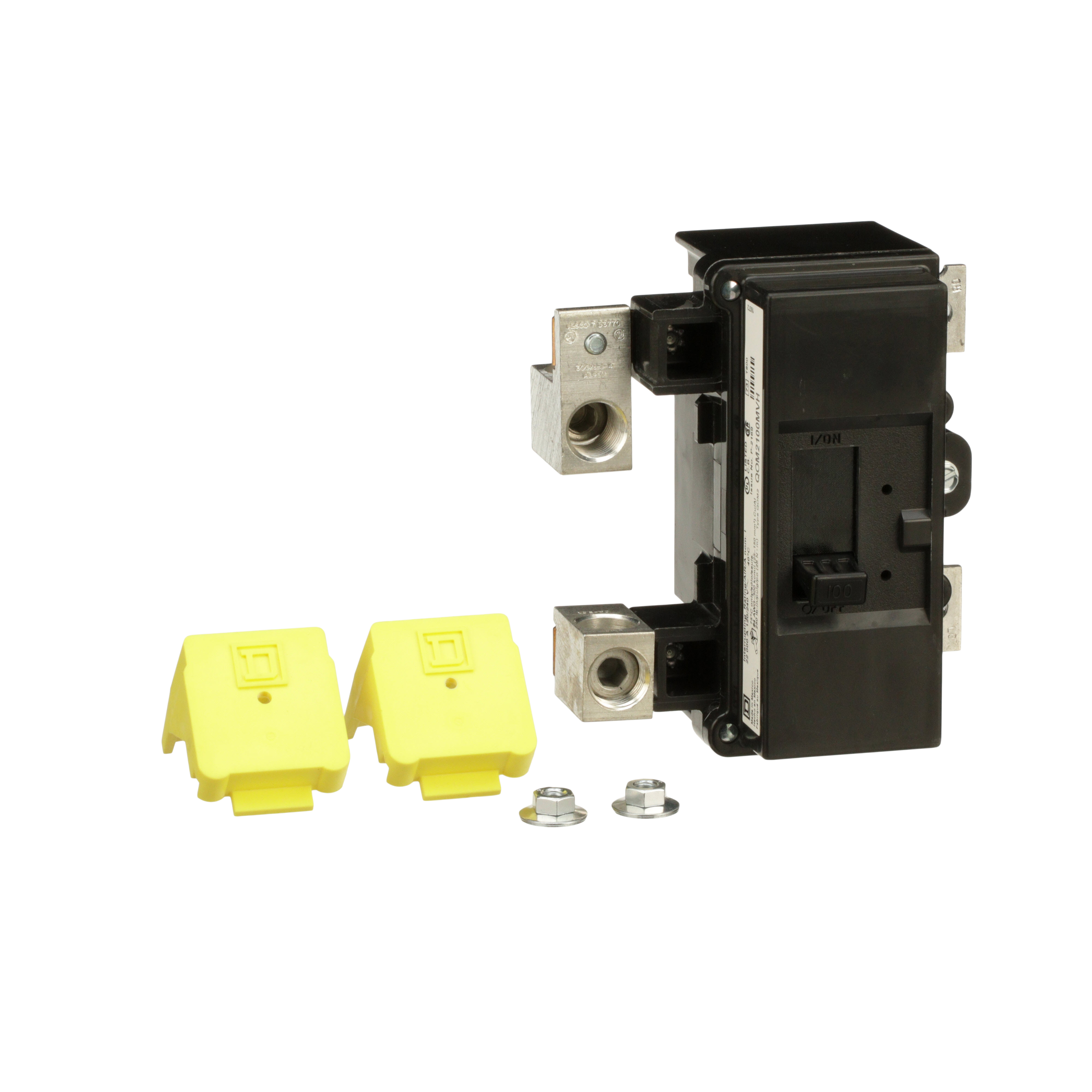

Square D™ QOM2100MVH Type QOM Tenant Miniature Circuit Breaker, 120/240 VAC, 100 A, 22 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ QOM2100MVH Type QOM Tenant Miniature Circuit Breaker, 120/240 VAC, 100 A, 22 kA Interrupt, 2 Poles
SKU245237
MFGR #QOM2100MVH
Your Cost: $1,328.59/ea
Square D QOM2100MVH MINIATURE CIRCUIT BREAKER 120/240V 100A,100 A,120/240 V AC,Bolt-On,Circuit Breaker,Metering,QO,UL Listed
Square D QOM2100MVH MINIATURE CIRCUIT BREAKER 120/240V 100A,100 A,120/240 V AC,Bolt-On,Circuit Breaker,Metering,QO,UL Listed
Alternate Catalog Number QOM2100MVH Application METERING ARRA Compliant N Buy American Compliant N Catalog Number QOM2100MVH Connection AWG 4...300 KCMIL COPPER OR ALUMINIUM,LUGS Connection Type Lug Country of Origin US Currency USD Current Rating 100 A Dimensions 5.6 in H x 5.07 in W x 3.6 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 153.72 Gross Volume per Pack Metric 2519.09 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.6648 lb Gross Weight per Pack Metric 1.22 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 10.9220 in Height [Metric] 10.7000 cm Item Group 00024 Length 16.5100 in Length [Metric] 16.3000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436355&lang=en-us Mounting Type Bolt-On Number Of Phases 1 Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL Listed Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QO Substitute Product Catalog Number QO1PA Temperature Rating 104 °F Trip Range 100 A Type Type QOM Tenant UNSPSC 39121601 UPC 11 78590130150 UPC 12 785901301509 Warranty Description Contractual Warranty:18 months Width 13.9700 in Width [Metric] 13.7000 cm Wire Size 4 AWG to 300 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 22 kA Trip Type LI/Thermal Magnetic Voltage Rating 120/240 VAC METERING BOLT-ON
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOM2100MVH |
| Application | METERING |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOM2100MVH |
| Connection | AWG 4...300 KCMIL COPPER OR ALUMINIUM,LUGS |
| Connection Type | Lug |
| Country of Origin | US |
| Currency | USD |
| Current Rating | 100 A |
| Dimensions | 5.6 in H x 5.07 in W x 3.6 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 153.72 |
| Gross Volume per Pack Metric | 2519.09 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.6648 lb |
| Gross Weight per Pack Metric | 1.22 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 10.9220 in |
| Height [Metric] | 10.7000 cm |
| Item Group | 00024 |
| Length | 16.5100 in |
| Length [Metric] | 16.3000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436355&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL Listed |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1PA |
| Temperature Rating | 104 °F |
| Trip Range | 100 A |
| Type | Type QOM Tenant |
| UNSPSC | 39121601 |
| UPC 11 | 78590130150 |
| UPC 12 | 785901301509 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 13.9700 in |
| Width [Metric] | 13.7000 cm |
| Wire Size | 4 AWG to 300 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 22 kA |
| Trip Type | LI/Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| METERING |
| BOLT-ON |
