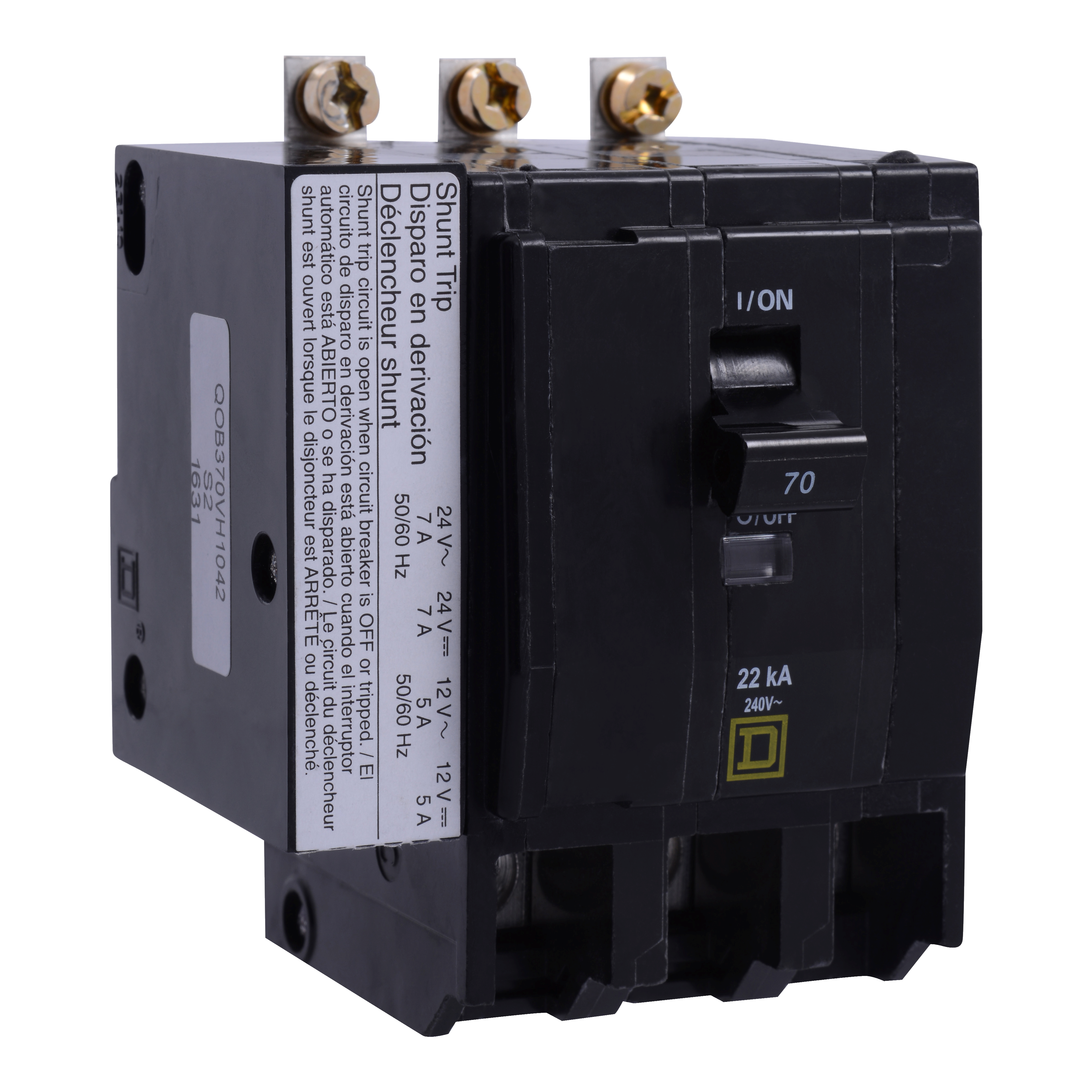

Square D™ QOB3701042 Type QOB Miniature Circuit Breaker, 120/240 VAC, 70 A, 10 kA at 120/240 VAC Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB3701042 Type QOB Miniature Circuit Breaker, 120/240 VAC, 70 A, 10 kA at 120/240 VAC Interrupt, 3 Poles, Shunt/Thermal Magnetic Trip
SKUPDW~6414207
MFGR #QOB3701042
Your Cost: $531.73/ea
List: Square D™ Miniature Circuit Breaker, Type QOB, 120/240 VAC, 70 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC Interrupt, Shunt/Thermal Magnetic Trip, 3 Pole, 3 ph, Box Lug Connection, 8 to 2 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3.12 in H x 3 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Square D™ Miniature Circuit Breaker, Type QOB, 120/240 VAC, 70 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC Interrupt, Shunt/Thermal Magnetic Trip, 3 Pole, 3 ph, Box Lug Connection, 8 to 2 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3.12 in H x 3 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Alternate Catalog Number QOB3701042 Application Residential and Light Commercial, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protections ARRA Compliant N Buy American Compliant N Catalog Number QOB3701042 Connection BOX LUGS #8 TO #2 AWG(AL/CU) Country of Origin MX Currency USD EU RoHS Indicator Y Gross Weight Per Pack 1369.9900 lb Gross Weight per Pack Metric 621.42 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 3.1496 in Height [Metric] 8.3820 cm Item Group 00015 Length 3.9370 in Length [Metric] 10.1600 cm Material FIBERGLASS FILLED THERMOSET MOLDING MATERIAL. Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401591&lang=en-us Number Of Poles 3 Operating Temperature CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION. Phase 3 Returnable N Standard UL LISTED - CSA CERTIFIED Sub Brand QO Type MINIATURE CIRCUIT BREAKER UNSPSC 39121603 UPC 11 78590175047 UPC 12 785901750475 Warranty Description Contractual Warranty:18 months Width 3.5433 in Width [Metric] 8.8900 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 70 A Interrupt Rating 10kA Voltage Rating 240 VAC Residential and Light Commercial, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protections STANDARD BOLT-ON Designed for superior safety, quality, and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space - compact 3/4 in W design for small system footprint Faster installation - fewer connections Frees gutter space - no pigtails with the innovative plug-on neutral design Easier troubleshooting - time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB3701042 |
| Application | Residential and Light Commercial, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protections |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB3701042 |
| Connection | BOX LUGS #8 TO #2 AWG(AL/CU) |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1369.9900 lb |
| Gross Weight per Pack Metric | 621.42 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.1496 in |
| Height [Metric] | 8.3820 cm |
| Item Group | 00015 |
| Length | 3.9370 in |
| Length [Metric] | 10.1600 cm |
| Material | FIBERGLASS FILLED THERMOSET MOLDING MATERIAL. |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401591&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION. |
| Phase | 3 |
| Returnable | N |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | QO |
| Type | MINIATURE CIRCUIT BREAKER |
| UNSPSC | 39121603 |
| UPC 11 | 78590175047 |
| UPC 12 | 785901750475 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.5433 in |
| Width [Metric] | 8.8900 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 70 A |
| Interrupt Rating | 10kA |
| Voltage Rating | 240 VAC |
| Residential and Light Commercial, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protections |
| STANDARD BOLT-ON |
| Designed for superior safety, quality, and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space - compact 3/4 in W design for small system footprint |
| Faster installation - fewer connections |
| Frees gutter space - no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting - time saver diagnostics provide additional circuit information at the touch of a button |
