Square D™

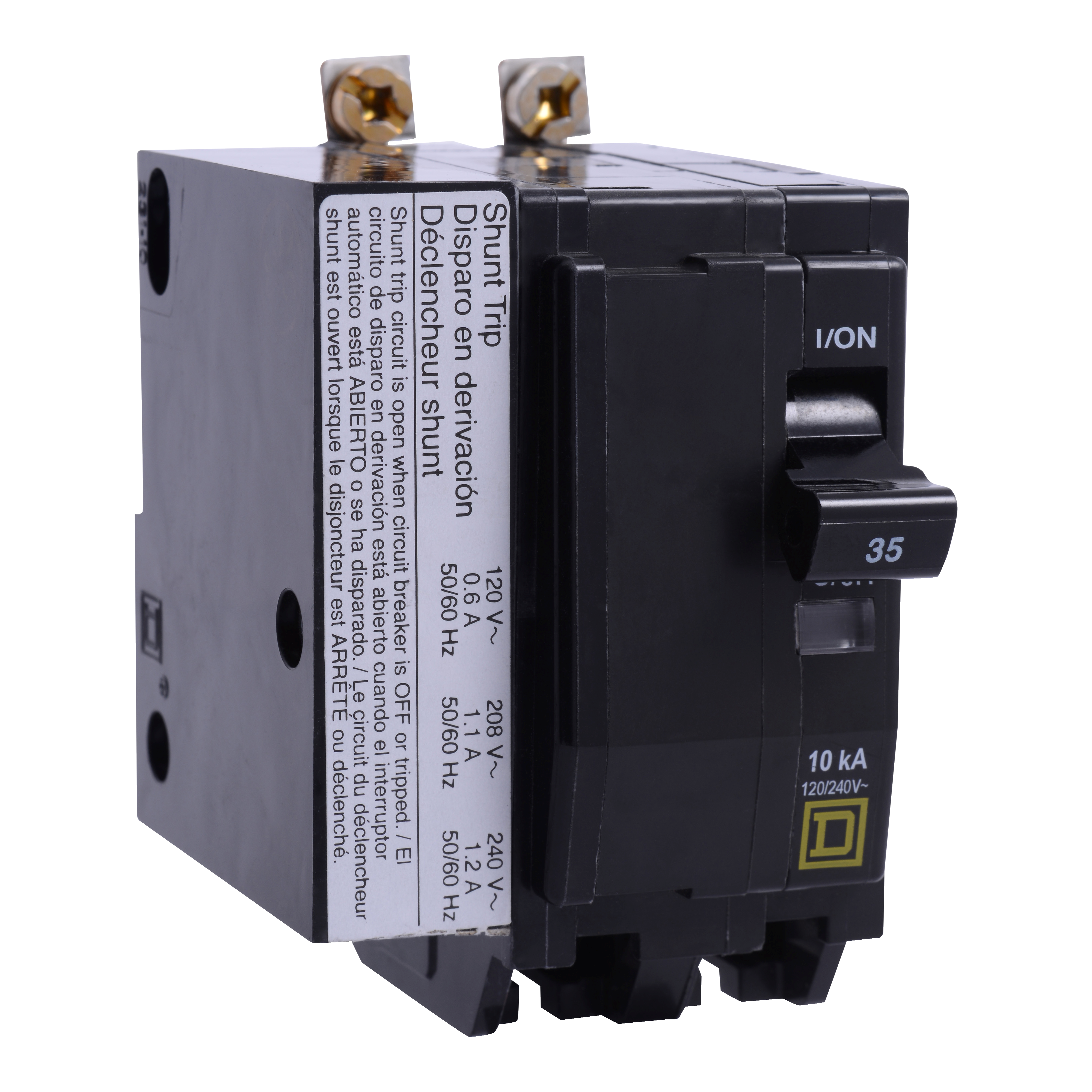

Square D™ QOB2351021 Type QOB Standard Miniature Circuit Breaker, 120/240 VAC, 35 A, 10 kA Interrupt, 2 Poles, Shunt/Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QOB2351021 Type QOB Standard Miniature Circuit Breaker, 120/240 VAC, 35 A, 10 kA Interrupt, 2 Poles, Shunt/Thermal Magnetic Trip
SKUPDW~6414062
MFGR #QOB2351021
Your Cost: $264.91/ea
List: Square D™ QO™ Miniature Circuit Breaker, Type QOB Standard, 120/240 VAC, 35 A, 50/60 Hz Frequency, 10 kA Interrupt, Shunt/Thermal Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 8 to 2 AWG Wire, Bolted-On Mounting, 104 deg F, 2.91 in L x 2.25 in W x 3.12 in H Dimensions, Fiberglass Filled Thermoset
Square D™ QO™ Miniature Circuit Breaker, Type QOB Standard, 120/240 VAC, 35 A, 50/60 Hz Frequency, 10 kA Interrupt, Shunt/Thermal Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 8 to 2 AWG Wire, Bolted-On Mounting, 104 deg F, 2.91 in L x 2.25 in W x 3.12 in H Dimensions, Fiberglass Filled Thermoset
Alternate Catalog Number QOB2351021 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOB2351021 Connection Box lugs;AWG 8...AWG 2 copper or aluminium Connection Type Box Lug Country of Origin US Currency USD Dimensions 2.91 in L x 2.25 in W x 3.12 in H EU RoHS Indicator Y Frequency Rating 50/60 Gross Weight Per Pack 4.4906 lb Gross Weight per Pack Metric 449.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 5.6620 in Height [Metric] 5.6620 cm Item Group 00015 Length 8.5650 in Length [Metric] 8.5650 cm Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400973&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION. Phase 1 Returnable N Standard UL LISTED - CSA CERTIFIED Sub Brand QO Temperature Rating 104 Type Type QOB Standard UNSPSC 39121603 UPC 11 78590170362 UPC 12 785901703624 Warranty Description Contractual Warranty:18 months Width 7.4120 in Width [Metric] 7.4120 cm Wire Size 8 to 2 Brand Square D™ Manufacturer Schneider Electric Amperage Rating 35 A Interrupt Rating 10 Trip Type Shunt/Thermal Magnetic Voltage Rating 120/240 HACR rated STANDARD BOLT-ON
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB2351021 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB2351021 |
| Connection | Box lugs;AWG 8...AWG 2 copper or aluminium |
| Connection Type | Box Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 2.91 in L x 2.25 in W x 3.12 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 4.4906 lb |
| Gross Weight per Pack Metric | 449.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 5.6620 in |
| Height [Metric] | 5.6620 cm |
| Item Group | 00015 |
| Length | 8.5650 in |
| Length [Metric] | 8.5650 cm |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400973&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION. |
| Phase | 1 |
| Returnable | N |
| Standard | UL LISTED - CSA CERTIFIED |
| Sub Brand | QO |
| Temperature Rating | 104 |
| Type | Type QOB Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590170362 |
| UPC 12 | 785901703624 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.4120 in |
| Width [Metric] | 7.4120 cm |
| Wire Size | 8 to 2 |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 35 A |
| Interrupt Rating | 10 |
| Trip Type | Shunt/Thermal Magnetic |
| Voltage Rating | 120/240 |
| HACR rated |
| STANDARD BOLT-ON |
