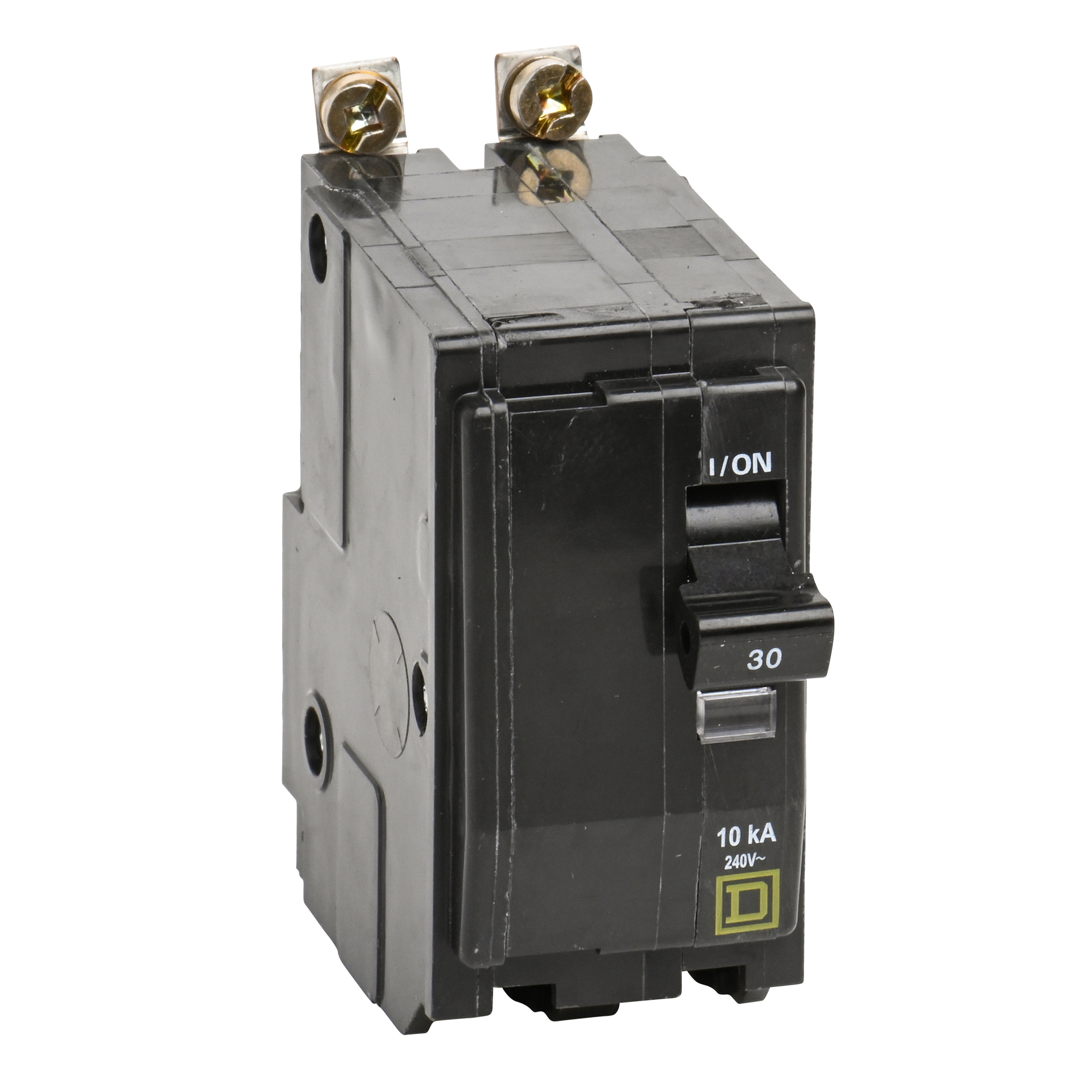

Square D™ QOB230H Type QOB-H Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA at 120/240 VAC Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ QOB230H Type QOB-H Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA at 120/240 VAC Interrupt, 2 Poles
SKU548936
MFGR #QOB230H
Your Cost: $264.58/ea
Square D QOB230H MINIATURE CIRCUIT BREAKER 240V 30A,10kA,240 Vac,2P,3-Phase,30A,Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Bolt-On,UL Listed - CSA Certified,not rated
Square D QOB230H MINIATURE CIRCUIT BREAKER 240V 30A,10kA,240 Vac,2P,3-Phase,30A,Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Bolt-On,UL Listed - CSA Certified,not rated
Alternate Catalog Number QOB230H Amperage Rating 30 A Application HACR RATED ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB230H Connection Pressure Plate Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 3 in H x 1.5 in W x 2.91 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 18.38 Gross Volume per Pack Metric 301.11 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 550.0100 lb Gross Weight per Pack Metric 249.48 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.8100 in Height [Metric] 3.8100 cm Interrupt Rating 10 kA at 120/240 VAC Item Group 00015 Length 8.8900 in Length [Metric] 8.8900 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400939&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number HLO1 Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QOB-H UNSPSC 39121603 UPC 11 78590134180 UPC 12 785901341802 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 14 to 8 AWG Al/Cu HACR rated STANDARD BOLT-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB230H |
| Amperage Rating | 30 A |
| Application | HACR RATED |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB230H |
| Connection | Pressure Plate |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in H x 1.5 in W x 2.91 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 18.38 |
| Gross Volume per Pack Metric | 301.11 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 550.0100 lb |
| Gross Weight per Pack Metric | 249.48 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.8100 in |
| Height [Metric] | 3.8100 cm |
| Interrupt Rating | 10 kA at 120/240 VAC |
| Item Group | 00015 |
| Length | 8.8900 in |
| Length [Metric] | 8.8900 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400939&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | HLO1 |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QOB-H |
| UNSPSC | 39121603 |
| UPC 11 | 78590134180 |
| UPC 12 | 785901341802 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 14 to 8 AWG Al/Cu |
| HACR rated |
| STANDARD BOLT-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
