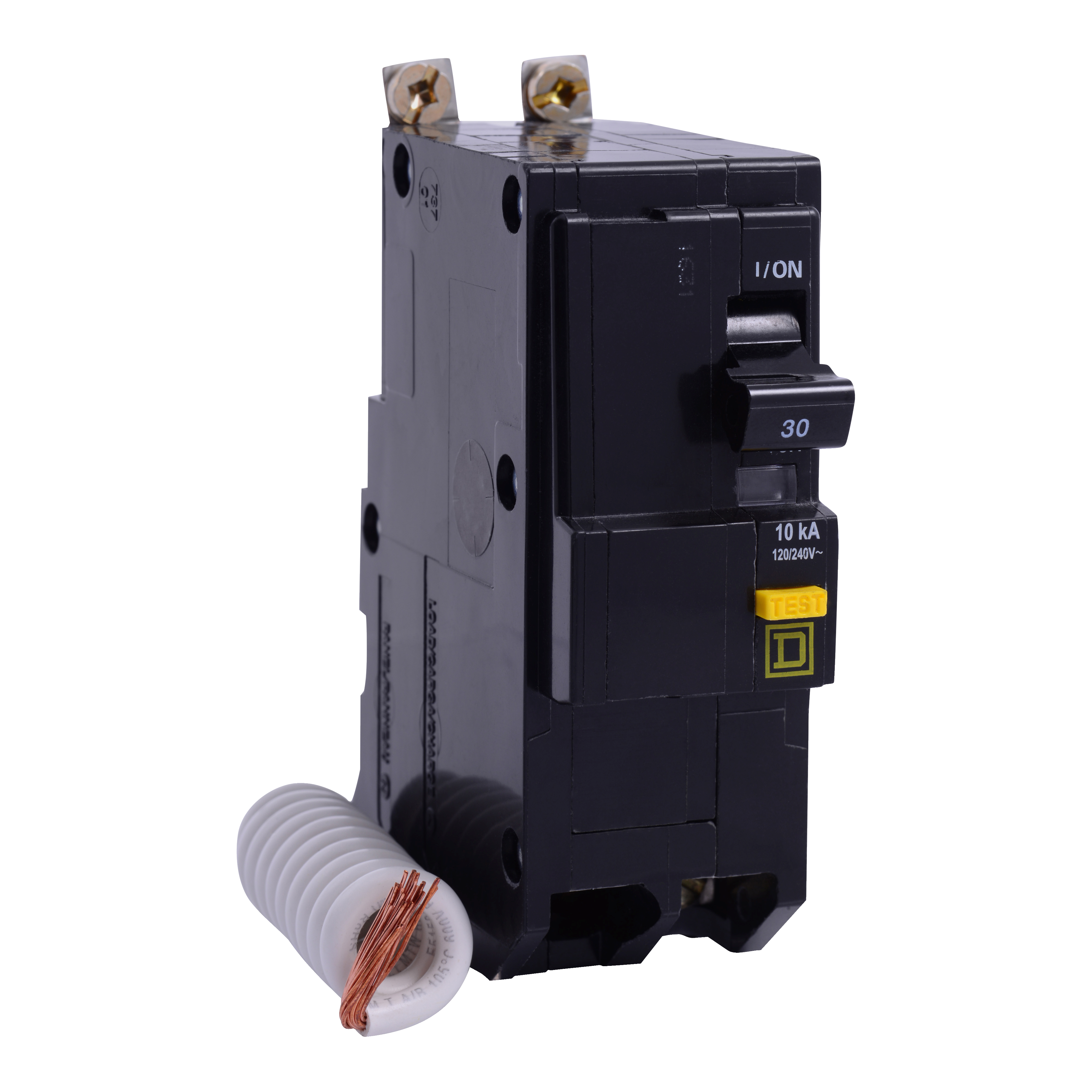

Square D™ QOB230GFI5237 Type QOB Class A GFI Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB230GFI5237 Type QOB Class A GFI Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKUPDW~6414046
MFGR #QOB230GFI5237
Your Cost: $507.90/ea
List: Square D™ Miniature Circuit Breaker, Type QOB Class A GFI, 120/240 VAC, 30 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Ring Tongue, 12 to 8 AWG Al, 14 to 8 AWG Cu Wire, NEMA AB1, Bolt-On Mount, 104 deg F, 1.5 in W x 2.91 in D x 4.12 in H
Square D™ Miniature Circuit Breaker, Type QOB Class A GFI, 120/240 VAC, 30 A, 50/60 Hz, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Ring Tongue, 12 to 8 AWG Al, 14 to 8 AWG Cu Wire, NEMA AB1, Bolt-On Mount, 104 deg F, 1.5 in W x 2.91 in D x 4.12 in H
Alternate Catalog Number QOB230GFI5237 Application Not rated ARRA Compliant N Buy American Compliant N Catalog Number QOB230GFI5237 Connection Ring tongue;AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium Connection Type Ring Tongue Country of Origin MX Currency USD Dimensions 1.5 in W x 2.91 in D x 4.12 in H Enclosure Type NEMA AB1 EU RoHS Indicator Y Frequency Rating 50/60 Gross Weight Per Pack 0.9600 lb Gross Weight per Pack Metric 435.45 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 2.7559 in Height [Metric] 6.8580 cm Item Group 00015 Length 6.2992 in Length [Metric] 16.2560 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400937&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 40 A°C Returnable Y Standard UL LISTED-CSA Sub Brand QO Temperature Rating 104 Type Type QOB Class A GFI UNSPSC 39121603 UPC 11 78590118683 UPC 12 785901186830 Warranty Description Contractual Warranty:18 months Width 3.5433 in Width [Metric] 8.6360 cm Wire Size 12 to 8 AWG Al, 14 to 8 AWG Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Interrupt Rating 10 Trip Type Thermal Magnetic Voltage Rating 120/240 Not rated GROUND FAULT PROTECTING CLASS A 6 MA
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB230GFI5237 |
| Application | Not rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB230GFI5237 |
| Connection | Ring tongue;AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium |
| Connection Type | Ring Tongue |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 1.5 in W x 2.91 in D x 4.12 in H |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 0.9600 lb |
| Gross Weight per Pack Metric | 435.45 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 2.7559 in |
| Height [Metric] | 6.8580 cm |
| Item Group | 00015 |
| Length | 6.2992 in |
| Length [Metric] | 16.2560 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400937&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 A°C |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Sub Brand | QO |
| Temperature Rating | 104 |
| Type | Type QOB Class A GFI |
| UNSPSC | 39121603 |
| UPC 11 | 78590118683 |
| UPC 12 | 785901186830 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.5433 in |
| Width [Metric] | 8.6360 cm |
| Wire Size | 12 to 8 AWG Al, 14 to 8 AWG Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Interrupt Rating | 10 |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 |
| Not rated |
| GROUND FAULT PROTECTING CLASS A 6 MA |
