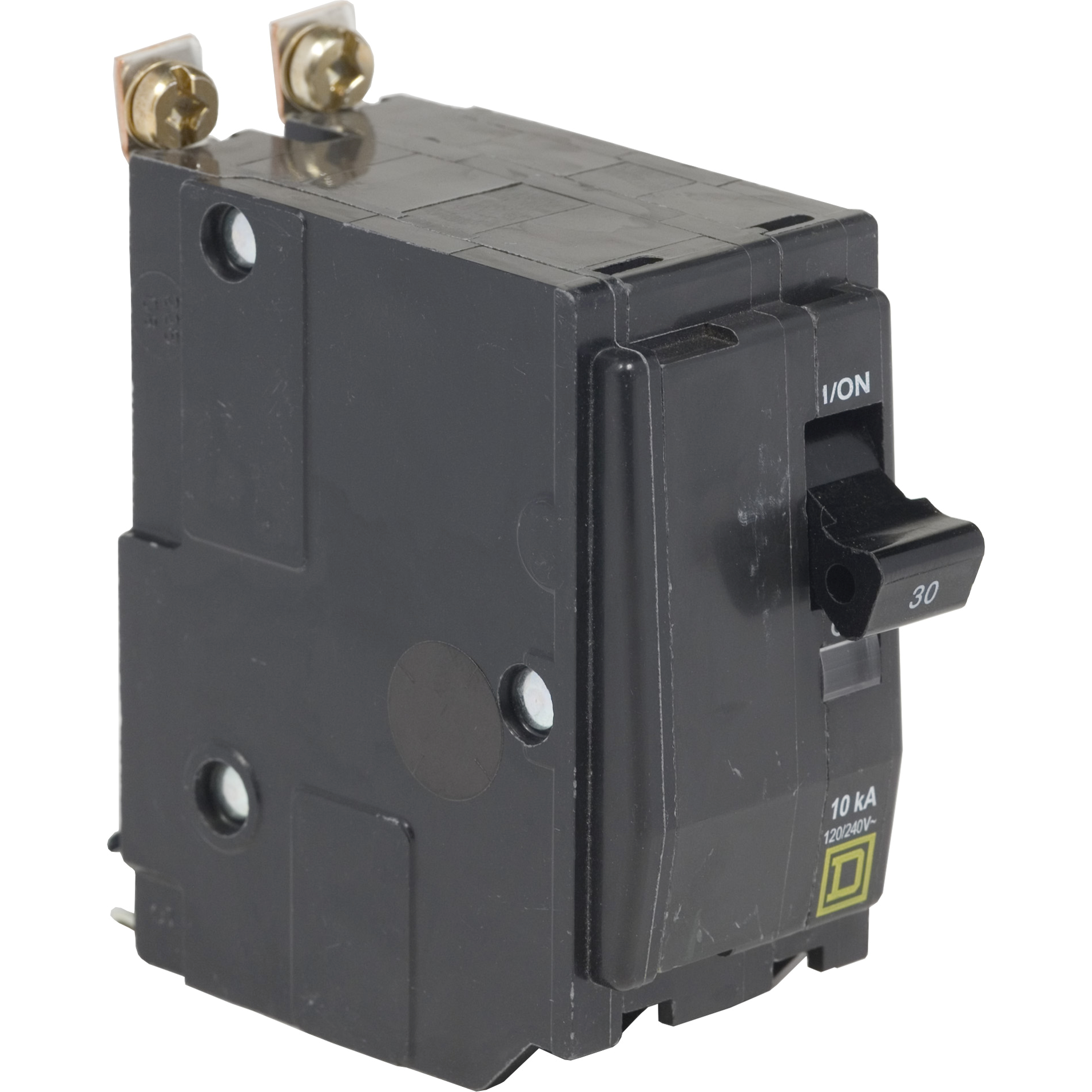

Square D™ QOB2305237 Type QOB Miniature Circuit Breaker, 120/240 VAC, 48 VDC, 30 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB2305237 Type QOB Miniature Circuit Breaker, 120/240 VAC, 48 VDC, 30 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
SKUPDW~6414058
MFGR #QOB2305237
Your Cost: $101.96/ea
List: Square D™ Miniature Circuit Breaker, Type QOB, 120/240 VAC, 48 VDC, 30 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Ring Tongue Connection, 14 to 8 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3 in H x 1.5 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Square D™ Miniature Circuit Breaker, Type QOB, 120/240 VAC, 48 VDC, 30 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Ring Tongue Connection, 14 to 8 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3 in H x 1.5 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Alternate Catalog Number QOB2305237 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOB2305237 Connection Ring tongue;AWG 14...AWG 8 copper or aluminium Connection Type Ring Tongue Country of Origin MX Currency USD Dimensions 3 in H x 1.5 in W x 2.91 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 17.34 Gross Volume per Pack Metric 284.15 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.5401 lb Gross Weight per Pack Metric 254.01 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.8100 in Height [Metric] 3.8100 cm Item Group 00015 Length 8.6360 in Length [Metric] 8.6360 cm Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400901&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 40 A°C Phase 1 Returnable Y Standard UL LISTED-CSA Sub Brand QO Temperature Rating 104 Type Type QOB UNSPSC 39121603 UPC 11 78590178356 UPC 12 785901783565 Warranty Description Contractual Warranty:18 months Width 8.6360 in Width [Metric] 8.6360 cm Wire Size 14 to 8 AWG Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Interrupt Rating 10 kA at 120/240 VAC, 5 kA at 48 VDC Trip Type Thermal Magnetic Voltage Rating 120/240 VAC, 48 VDC HACR rated STANDARD
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB2305237 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB2305237 |
| Connection | Ring tongue;AWG 14...AWG 8 copper or aluminium |
| Connection Type | Ring Tongue |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in H x 1.5 in W x 2.91 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 17.34 |
| Gross Volume per Pack Metric | 284.15 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.5401 lb |
| Gross Weight per Pack Metric | 254.01 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.8100 in |
| Height [Metric] | 3.8100 cm |
| Item Group | 00015 |
| Length | 8.6360 in |
| Length [Metric] | 8.6360 cm |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400901&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 A°C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Sub Brand | QO |
| Temperature Rating | 104 |
| Type | Type QOB |
| UNSPSC | 39121603 |
| UPC 11 | 78590178356 |
| UPC 12 | 785901783565 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.6360 in |
| Width [Metric] | 8.6360 cm |
| Wire Size | 14 to 8 AWG Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Interrupt Rating | 10 kA at 120/240 VAC, 5 kA at 48 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC, 48 VDC |
| HACR rated |
