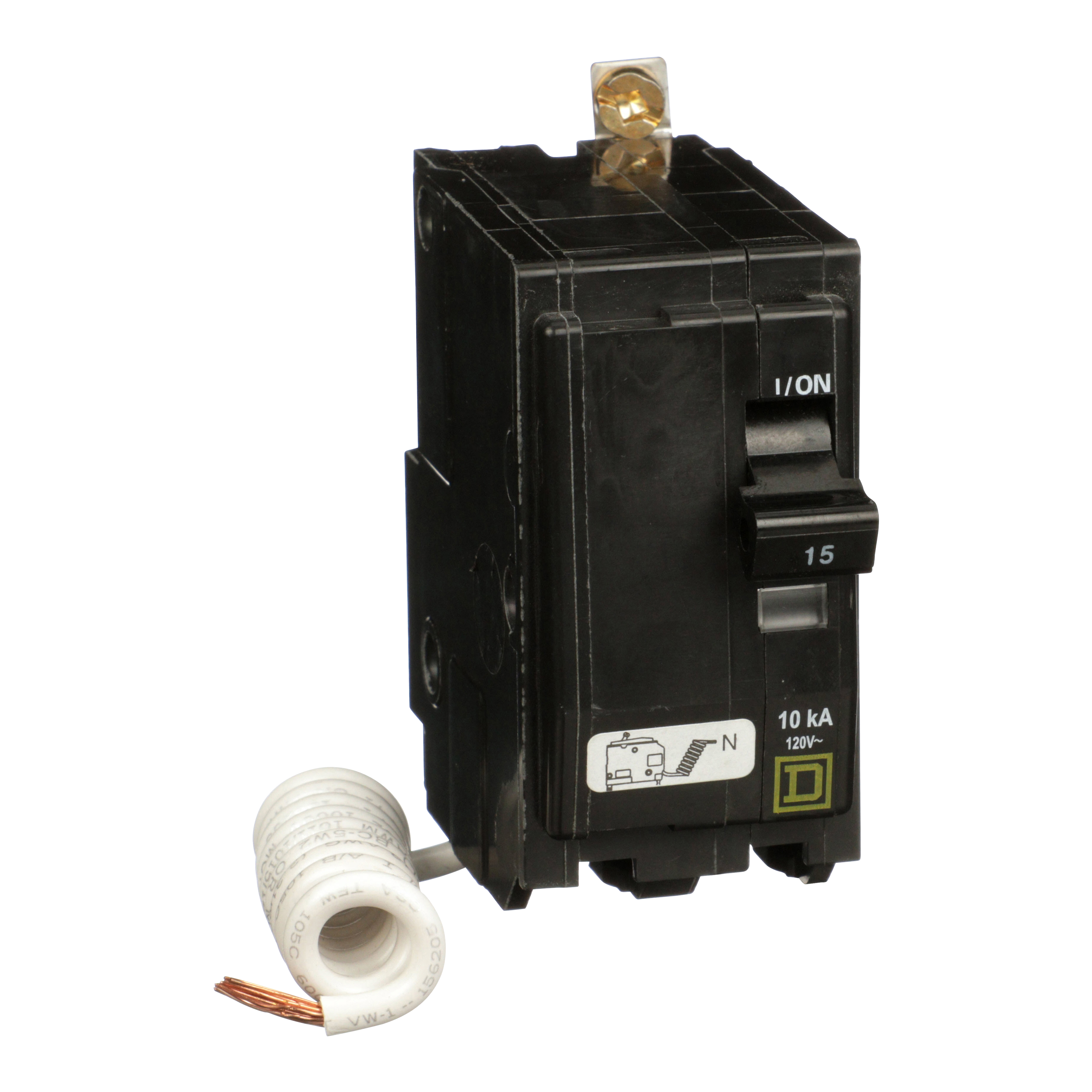

Square D™ QOB215SWN Miniature Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Circuit Breakers
296541
MFG #: QOB215SWN
Square D™
113.85000
/ ea
Square D QOB215SWN MINIATURE CIRCUIT BREAKER 120V 15A,1-Phase,10kA,120 Vac,15A,2P,Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),Provides overload and short circuit protection Designed to protect gas pump assemblies.,QO,Switch Neutral Bolt-On,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8151193360Den&ext=webp(360 Degree View URL)
- Catalog URL - Square_D_QOB110_Catalog.pdf(Catalog URL)
- Compliance Cert URL - Square_D_QOB215SWN_Compliance_Certificate.pdf(Compliance Cert URL)
- Brochure URL - 11003_SF18VI3Y75ANRTGZ.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=0102BR0201.pdf(Brochure URL)
- User Manual URL - 11003_4OPHZUT6J8L1YG7E.pdf(User Manual URL)
- Spec Sheet URL(Spec Sheet URL)
- User Manual URL(User Manual URL)
- Tech Drawing URL - 11003_DHK6PX8QOTA72EN9.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_AV6NK7850O1P2SET.pdf(Tech Drawing URL)
- Video - https://youtube.com/embed/ECi6An24KbQ(Video)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_8ETUDBN5AVC2P9WO.pdf(Spec Sheet URL)
- Applications
- Features
| Not rated |
| SWITCH NEUTRAL BOLT-ON |
| These circuit breakers have provisions for switching the grounded conductor as outlined in the National Electrical Code |
| The QO-SWN and QOB-SWN circuit breakers are designed to simultaneously open all grounded and ungrounded conductors |
| All branch circuit wiring is terminated on the load side of the circuit breaker |
| The panel neutral connection is made using the pigtail lead built into the circuit breaker |
| Two-wire circuit breakers require two pole spaces, three-wire circuit breaker require three pole spaces |
| VISI-TRIP feature |
| For use with NQOD panelboards/interiors |
| 14 - 10 AWG copper, 14 - 8 AWG copper/aluminum |
| Common trip |
| Switch Neutra |
