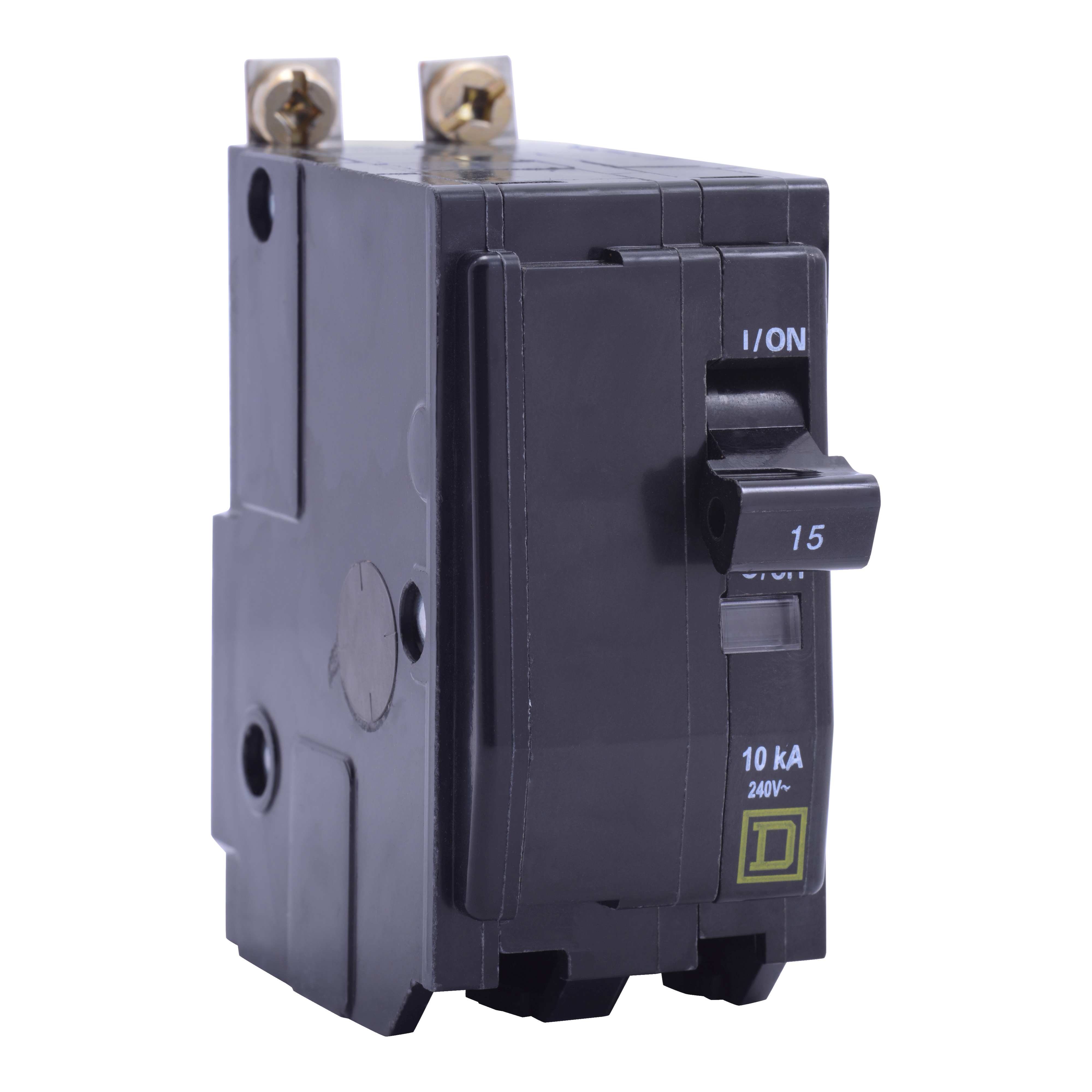

Square D™ QOB21535 Type QOB Miniature Circuit Breaker, 120/240 VAC, 48 VDC, 15 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB21535 Type QOB Miniature Circuit Breaker, 120/240 VAC, 48 VDC, 15 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 2 Poles, Thermal/Magnetic Trip
SKUPDW~6414004
MFGR #QOB21535
Your Cost: $100.06/ea
List: Square D™ Miniature Circuit Breaker, Type QOB, 120/240 VAC, 48 VDC, 15 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 2 Pole, Pressure Plate Connection, 14 to 8 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3 in H x 1.5 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Square D™ Miniature Circuit Breaker, Type QOB, 120/240 VAC, 48 VDC, 15 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 2 Pole, Pressure Plate Connection, 14 to 8 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3 in H x 1.5 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Alternate Catalog Number QOB21535 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOB21535 Connection Pressure plate;AWG 14...AWG 8 copper or aluminium Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 3 in H x 1.5 in W x 2.91 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frequency Rating 50/60 Gross Weight Per Pack 0.6100 lb Gross Weight per Pack Metric 276.69 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 1.5748 in Height [Metric] 3.8100 cm Item Group 00015 Length 3.5433 in Length [Metric] 8.6360 cm Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400671&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 50 A°C Returnable N Standard UL LISTED-CSA Sub Brand QO Temperature Rating 104 Type Type QOB UNSPSC 39121603 UPC 11 78590116537 UPC 12 785901165378 Warranty Description Contractual Warranty:18 months Width 3.1496 in Width [Metric] 8.3820 cm Wire Size 14 to 8 AWG Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 10 kA at 120/240 VAC, 5 kA at 48 VDC Trip Type Thermal Magnetic Voltage Rating 120/240 VAC, 48 VDC HACR rated STANDARD
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB21535 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB21535 |
| Connection | Pressure plate;AWG 14...AWG 8 copper or aluminium |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in H x 1.5 in W x 2.91 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 0.6100 lb |
| Gross Weight per Pack Metric | 276.69 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.5748 in |
| Height [Metric] | 3.8100 cm |
| Item Group | 00015 |
| Length | 3.5433 in |
| Length [Metric] | 8.6360 cm |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400671&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 50 A°C |
| Returnable | N |
| Standard | UL LISTED-CSA |
| Sub Brand | QO |
| Temperature Rating | 104 |
| Type | Type QOB |
| UNSPSC | 39121603 |
| UPC 11 | 78590116537 |
| UPC 12 | 785901165378 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.1496 in |
| Width [Metric] | 8.3820 cm |
| Wire Size | 14 to 8 AWG Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 10 kA at 120/240 VAC, 5 kA at 48 VDC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC, 48 VDC |
| HACR rated |
| STANDARD |
