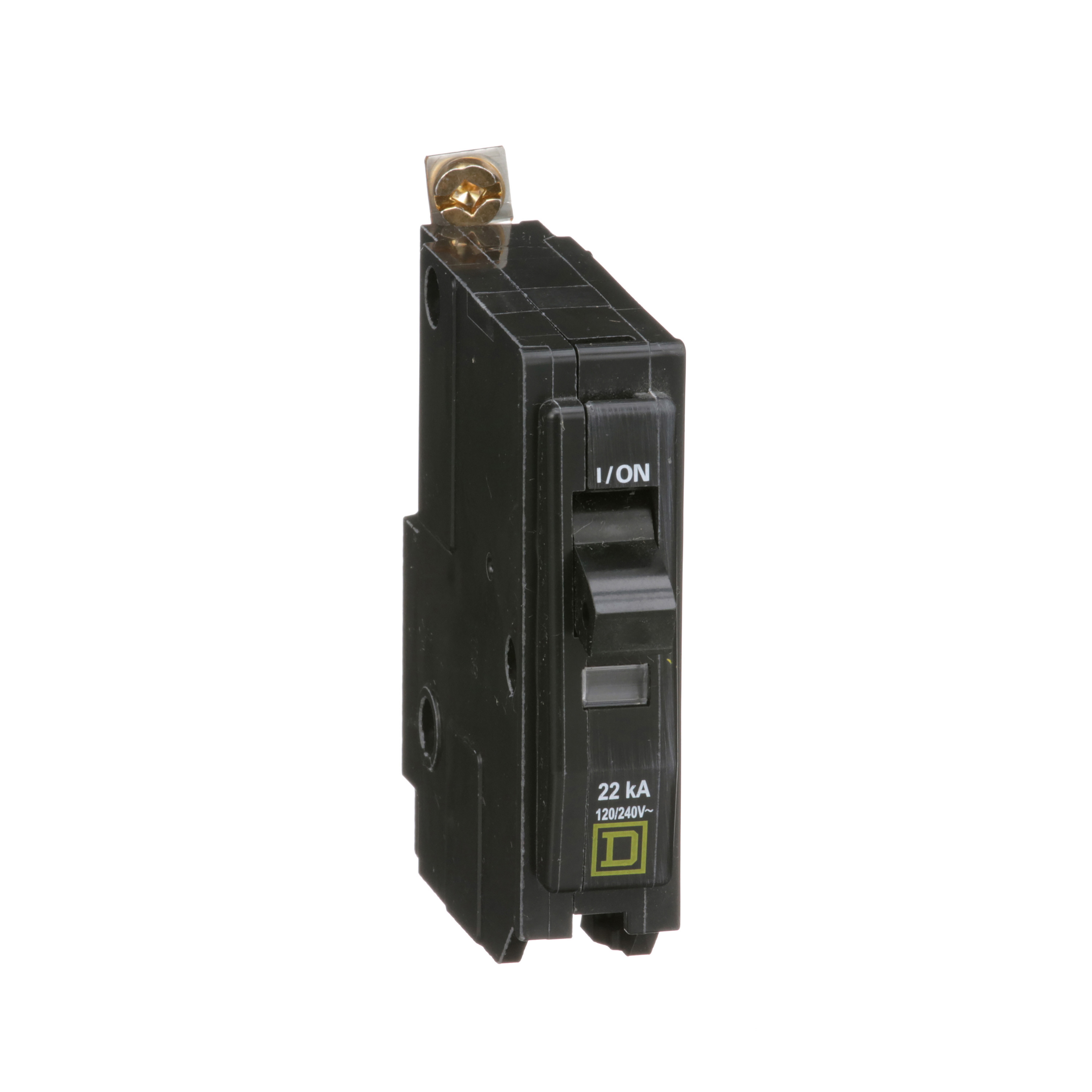

Square D™ QOB140VH Type QOB-VH Miniature Circuit Breaker, 120/240 VAC, 40 A, 22 kA at 120/240 VAC Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™ QOB140VH Type QOB-VH Miniature Circuit Breaker, 120/240 VAC, 40 A, 22 kA at 120/240 VAC Interrupt, 1 Pole
SKU767674
MFGR #QOB140VH
Your Cost: $101.20/ea
Square D QOB140VH MINIATURE CIRCUIT BREAKER 120/240V 40A,1-Phase,1-Pole,120/240 V AC,120/240 V AC,22 kA,40 A,Box Lugs #8 to #2 AWG(Al/Cu),HACR rated,QO,QO,UL Listed - CSA Certified,miniature circuit-breaker,standard
Square D QOB140VH MINIATURE CIRCUIT BREAKER 120/240V 40A,1-Phase,1-Pole,120/240 V AC,120/240 V AC,22 kA,40 A,Box Lugs #8 to #2 AWG(Al/Cu),HACR rated,QO,QO,UL Listed - CSA Certified,miniature circuit-breaker,standard
Alternate Catalog Number QOB140VH Amperage Rating 40 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB140VH Connection BOX LUGS Connection Type Box Lug Country of Origin US Currency USD Dimensions 3.12 in H x 0.75 in W x 2.91 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 309.9900 lb Gross Weight per Pack Metric 140.61 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 2.0320 in Height [Metric] 2.0320 cm Interrupt Rating 22 kA at 120/240 VAC Item Group 00015 Length 8.8900 in Length [Metric] 8.8900 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267982130&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED-CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number NQ430L2C Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QOB-VH UNSPSC 39121603 UPC 11 78590108857 UPC 12 785901088578 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 8 to 2 AWG Al/Cu HACR rated STANDARD Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB140VH |
| Amperage Rating | 40 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB140VH |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 3.12 in H x 0.75 in W x 2.91 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 309.9900 lb |
| Gross Weight per Pack Metric | 140.61 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 2.0320 in |
| Height [Metric] | 2.0320 cm |
| Interrupt Rating | 22 kA at 120/240 VAC |
| Item Group | 00015 |
| Length | 8.8900 in |
| Length [Metric] | 8.8900 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267982130&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | NQ430L2C |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QOB-VH |
| UNSPSC | 39121603 |
| UPC 11 | 78590108857 |
| UPC 12 | 785901088578 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 8 to 2 AWG Al/Cu |
| HACR rated |
| STANDARD |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
