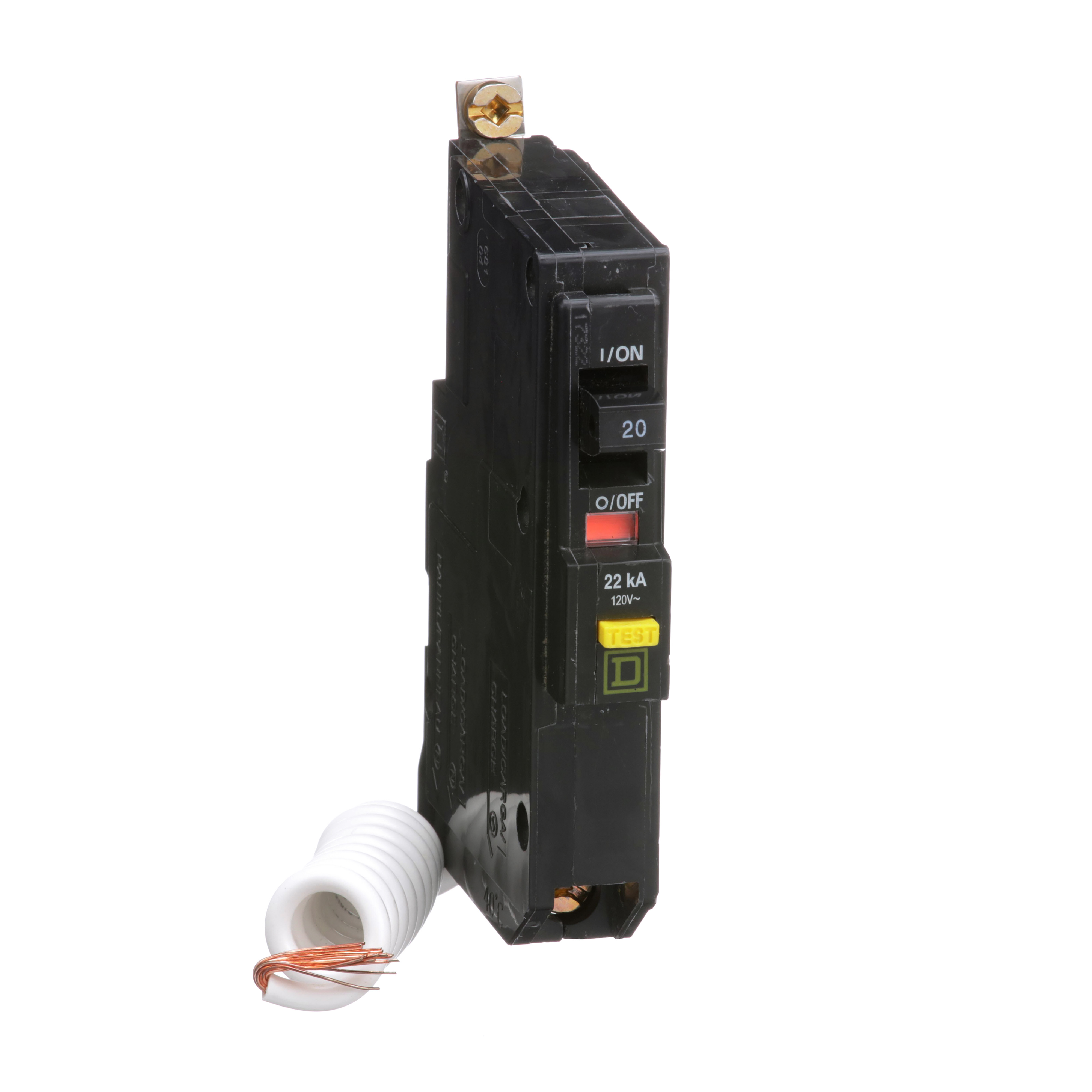

Square D™ QOB120VHGFI Type QOB-VHGFI Miniature Circuit Breaker, 120 VAC, 20 A, 22 kA at 120 VAC Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™ QOB120VHGFI Type QOB-VHGFI Miniature Circuit Breaker, 120 VAC, 20 A, 22 kA at 120 VAC Interrupt, 1 Pole
SKU145162
MFGR #QOB120VHGFI
Your Cost: $547.91/ea
Square D QOB120VHGFI MINIATURE CIRCUIT BREAKER 120V 20A,1-Phase,120 Vac,20A,22kA,Ground Fault Protecting (Class A 6mA) Bolt-On,Miniature Circuit Breaker,Pressure Plate #12 to #8 AWG(Al) - #14 to #8 AWG(Cu),Provides overload and short circuit protection Designed to offer Class A ground-fault protection for people,QO,UL Listed - CSA Certified
Square D QOB120VHGFI MINIATURE CIRCUIT BREAKER 120V 20A,1-Phase,120 Vac,20A,22kA,Ground Fault Protecting (Class A 6mA) Bolt-On,Miniature Circuit Breaker,Pressure Plate #12 to #8 AWG(Al) - #14 to #8 AWG(Cu),Provides overload and short circuit protection Designed to offer Class A ground-fault protection for people,QO,UL Listed - CSA Certified
Alternate Catalog Number QOB120VHGFI Amperage Rating 20 A Application Not rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QOB120VHGFI Connection PRESSURE PLATE #12 TO #8 AWG(AL) - #14 TO #8 AWG(CU) Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 4.12 in H x 0.75 in W x 2.91 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 32.40 Gross Volume per Pack Metric 530.94 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 500.0100 lb Gross Weight per Pack Metric 226.80 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.8100 in Height [Metric] 13.9700 cm Interrupt Rating 22 kA at 120 VAC Item Group 00015 Length 10.1600 in Length [Metric] 3.0480 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400409&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 pH Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number NQ430L1C Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QOB-VHGFI UNSPSC 39121603 UPC 11 78590152071 UPC 12 785901520719 Voltage Rating 120 VAC Warranty Description Contractual Warranty:18 months Width 13.7160 in Width [Metric] 9.6520 cm Wire Size 14 to 8 AWG Cu/12 to 8 AWG Al Not rated GROUND FAULT PROTECTING (CLASS A 6MA) BOLT-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB120VHGFI |
| Amperage Rating | 20 A |
| Application | Not rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB120VHGFI |
| Connection | PRESSURE PLATE #12 TO #8 AWG(AL) - #14 TO #8 AWG(CU) |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.12 in H x 0.75 in W x 2.91 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 32.40 |
| Gross Volume per Pack Metric | 530.94 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 500.0100 lb |
| Gross Weight per Pack Metric | 226.80 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.8100 in |
| Height [Metric] | 13.9700 cm |
| Interrupt Rating | 22 kA at 120 VAC |
| Item Group | 00015 |
| Length | 10.1600 in |
| Length [Metric] | 3.0480 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400409&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | NQ430L1C |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QOB-VHGFI |
| UNSPSC | 39121603 |
| UPC 11 | 78590152071 |
| UPC 12 | 785901520719 |
| Voltage Rating | 120 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 13.7160 in |
| Width [Metric] | 9.6520 cm |
| Wire Size | 14 to 8 AWG Cu/12 to 8 AWG Al |
| Not rated |
| GROUND FAULT PROTECTING (CLASS A 6MA) BOLT-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
