Square D™

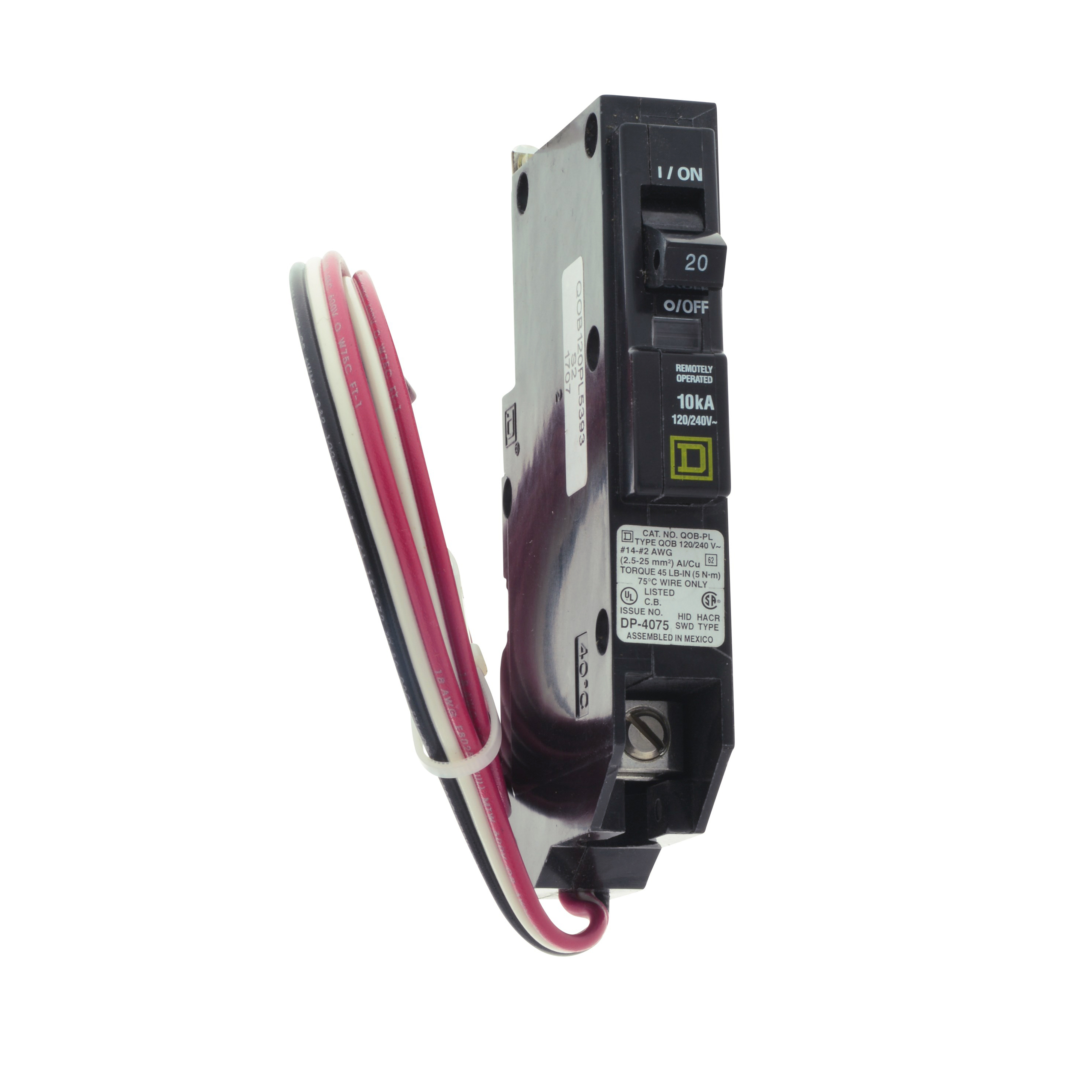

Square D™ QOB120PL5393 Type QOB-PL Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA at 120/240 VAC Interrupt, 1 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QOB120PL5393 Type QOB-PL Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA at 120/240 VAC Interrupt, 1 Poles, Thermal/Magnetic Trip
SKUPDW~6413925
MFGR #QOB120PL5393
Your Cost: $174.40/ea
Square D™ Miniature Circuit Breaker, Type QOB-PL, 120/240 VAC, 20 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC Interrupt, Thermal/Magnetic Trip, 1 Pole, Box Lug Connection, 12 to 2 AWG Al, 14 to 2 AWG Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 4.55 in H x 0.75 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Square D™ Miniature Circuit Breaker, Type QOB-PL, 120/240 VAC, 20 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC Interrupt, Thermal/Magnetic Trip, 1 Pole, Box Lug Connection, 12 to 2 AWG Al, 14 to 2 AWG Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 4.55 in H x 0.75 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Alternate Catalog Number QOB120PL5393 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOB120PL5393 Connection Box lugs;AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper Connection Type Box Lug Country of Origin MX Currency USD Dimensions 4.55 in H x 0.75 in W x 2.91 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frequency Rating 50/60 Gross Volume Per Pack 26.68 Gross Volume per Pack Metric 437.14 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.7216 lb Gross Weight per Pack Metric 272.15 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 9.6520 in Height [Metric] 9.6520 cm Item Group 09650 Length 13.7160 in Length [Metric] 13.7160 cm Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253887&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 A°C Returnable Y Standard UL LISTED-CSA Sub Brand QO Substitute Product Catalog Number QO2DTIM Temperature Rating 104 Type Type QOB-PL UNSPSC 39121603 UPC 11 78590140475 UPC 12 785901404750 Warranty Description Contractual Warranty:18 months Width 3.3020 in Width [Metric] 3.3020 cm Wire Size 12 to 2 AWG Al, 14 to 2 AWG Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 10 kA at 120/240 VAC Trip Type Thermal Magnetic Voltage Rating 120/240 VAC HACR rated STANDARD
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB120PL5393 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB120PL5393 |
| Connection | Box lugs;AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.55 in H x 0.75 in W x 2.91 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Volume Per Pack | 26.68 |
| Gross Volume per Pack Metric | 437.14 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.7216 lb |
| Gross Weight per Pack Metric | 272.15 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 9.6520 in |
| Height [Metric] | 9.6520 cm |
| Item Group | 09650 |
| Length | 13.7160 in |
| Length [Metric] | 13.7160 cm |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253887&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 A°C |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO2DTIM |
| Temperature Rating | 104 |
| Type | Type QOB-PL |
| UNSPSC | 39121603 |
| UPC 11 | 78590140475 |
| UPC 12 | 785901404750 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.3020 in |
| Width [Metric] | 3.3020 cm |
| Wire Size | 12 to 2 AWG Al, 14 to 2 AWG Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 10 kA at 120/240 VAC |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| HACR rated |
| STANDARD |
