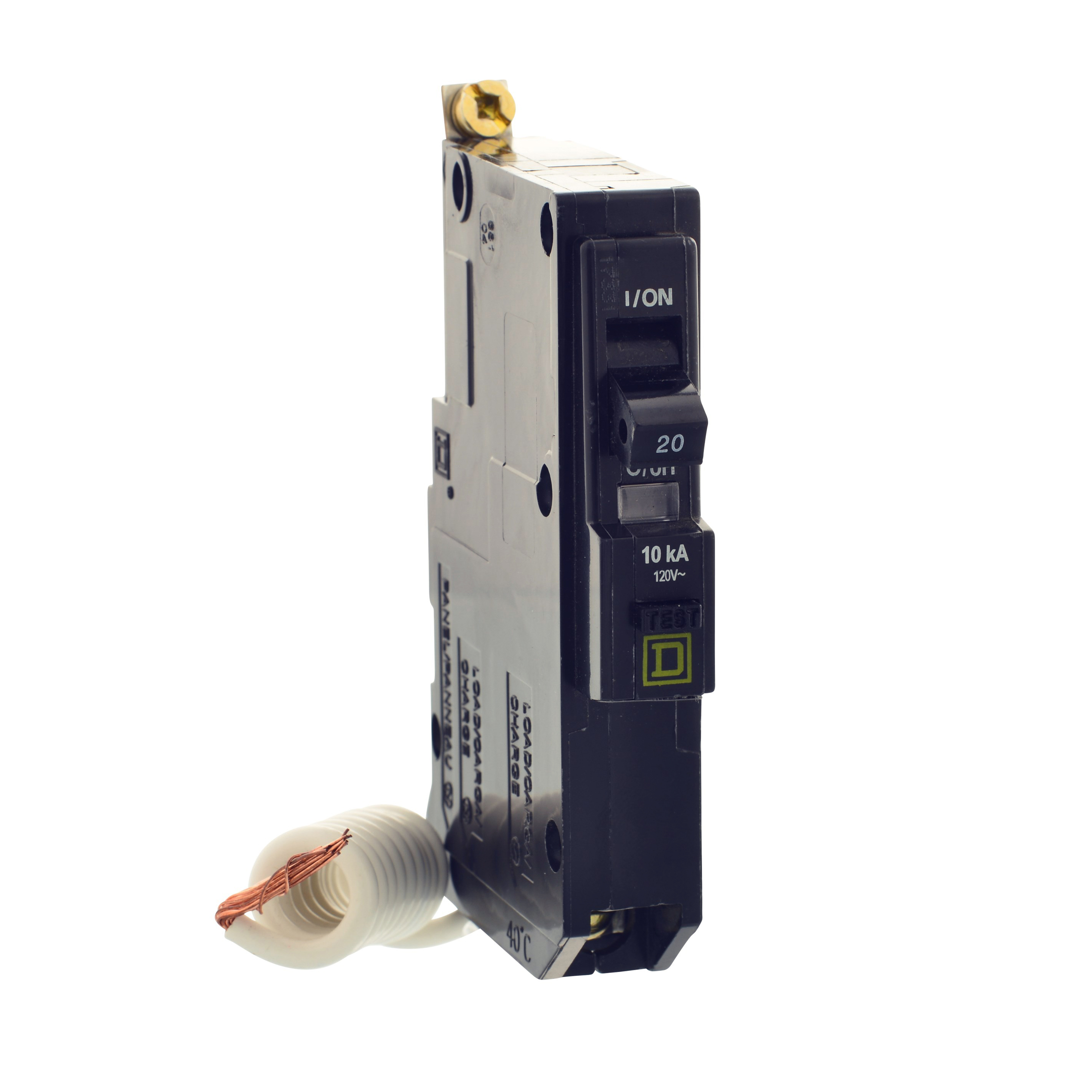

Square D™ QOB120EPD5237 Type QOB-EPD Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA at 120 VAC Interrupt, 1 Poles, Thermal/Magnetic Trip
Miniature Circuit Breakers
PDW~6413915
MFG #: QOB120EPD5237
Square D™
0.00000
/ ea
Square D™ Miniature Circuit Breaker, Type QOB-EPD, 120 VAC, 20 A, 50/60 Hz Frequency, 10 kA at 120 VAC Interrupt, Thermal/Magnetic Trip, 1 Pole, Pressure Plate Connection, 14 to 8 AWG Cu, 12 to 8 AWG Al Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 4.12 in H x 1.5 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
- 360 Degree View URL - 360(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QOB120EPD5237(3D Rendering URL)
- Brochure URL - 11003_SF18VI3Y75ANRTGZ.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_86D0L93G7EQF1PMX.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_YR2NWPOBI381ZF40.pdf(Service Manual URL)
- Spec Sheet URL - 11003_DFPU3KHYWVE0NI4S.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_BUQ23ZKAIV50MFSE.pdf(Tech Drawing URL)
- Warranty URL - files?p_enDocType=Warranty&p_File_Name=0700DB2001.pdf(Warranty URL)
- Applications
- Features
| Residential and Light Commercial, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault Protections |
| Designed for superior safety, quality, and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space - compact 3/4 in W design for small system footprint |
| Faster installation - fewer connections |
| Frees gutter space - no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting - time saver diagnostics provide additional circuit information at the touch of a button |
