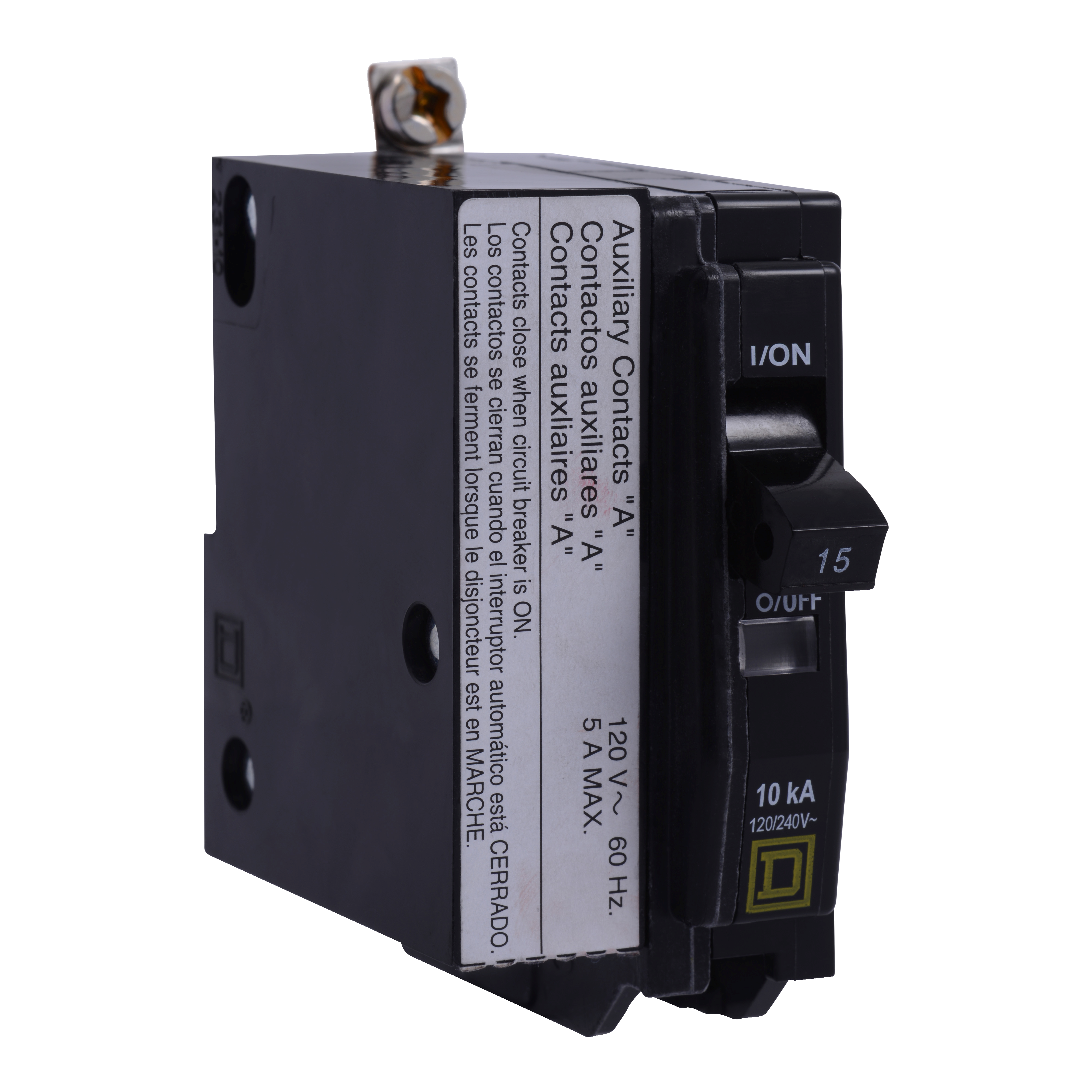

Square D™ QOB1201200 Type QOB Miniature Circuit Breaker With Auxiliary Switch, 120/240 VAC/48 VDC, 20 A, 1 Pole
Custom_Product_Images_Illustration
Square D™ QOB1201200 Type QOB Miniature Circuit Breaker With Auxiliary Switch, 120/240 VAC/48 VDC, 20 A, 1 Pole
SKU451582
MFGR #QOB1201200
Your Cost: $189.61/ea
Square D QOB1201200 MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,10kA,120/240 Vac,1P,20A,Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,HACR and Switching Duty rated,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Bolt-On,UL Listed - CSA Certified
Square D QOB1201200 MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,10kA,120/240 Vac,1P,20A,Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,HACR and Switching Duty rated,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Bolt-On,UL Listed - CSA Certified
Alternate Catalog Number QOB1201200 Amperage Rating 20 A Application HACR and Switching Duty rated ARRA Compliant N Auxiliary Contact Rating 1A Brand Square D™ Buy American Compliant N Catalog Number QOB1201200 Connection Pressure Plate Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 3 in H x 1.5 in W x 2.91 in D EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 670.0100 lb Gross Weight per Pack Metric 303.91 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 1.1811 in Height [Metric] 3.1750 cm Interrupt Rating 10 kA at 120/240 VAC/5 kA at 48 VDC Item Group 00015 Length 3.1496 in Length [Metric] 7.6200 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400319&lang=en-us Mounting Type Bolt-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable N Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR Ratedeccn: EAR99 Stock Status NONSTOCK Sub Brand QO Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QOB UNSPSC 39121603 UPC 11 78590143547 UPC 12 785901435471 Voltage Rating 120/240 VAC/48 VDC Warranty Description Contractual Warranty:18 months Width 3.5433 in Width [Metric] 8.8900 cm Wire Size 14 to 8 AWG Al/Cu HACR and Switching Duty rated STANDARD BOLT-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button Switching duty rated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB1201200 |
| Amperage Rating | 20 A |
| Application | HACR and Switching Duty rated |
| ARRA Compliant | N |
| Auxiliary Contact Rating | 1A |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QOB1201200 |
| Connection | Pressure Plate |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in H x 1.5 in W x 2.91 in D |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 670.0100 lb |
| Gross Weight per Pack Metric | 303.91 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 1.1811 in |
| Height [Metric] | 3.1750 cm |
| Interrupt Rating | 10 kA at 120/240 VAC/5 kA at 48 VDC |
| Item Group | 00015 |
| Length | 3.1496 in |
| Length [Metric] | 7.6200 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400319&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | N |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR Ratedeccn: EAR99 |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QOB |
| UNSPSC | 39121603 |
| UPC 11 | 78590143547 |
| UPC 12 | 785901435471 |
| Voltage Rating | 120/240 VAC/48 VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.5433 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 14 to 8 AWG Al/Cu |
| HACR and Switching Duty rated |
| STANDARD BOLT-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
| Switching duty rated |
