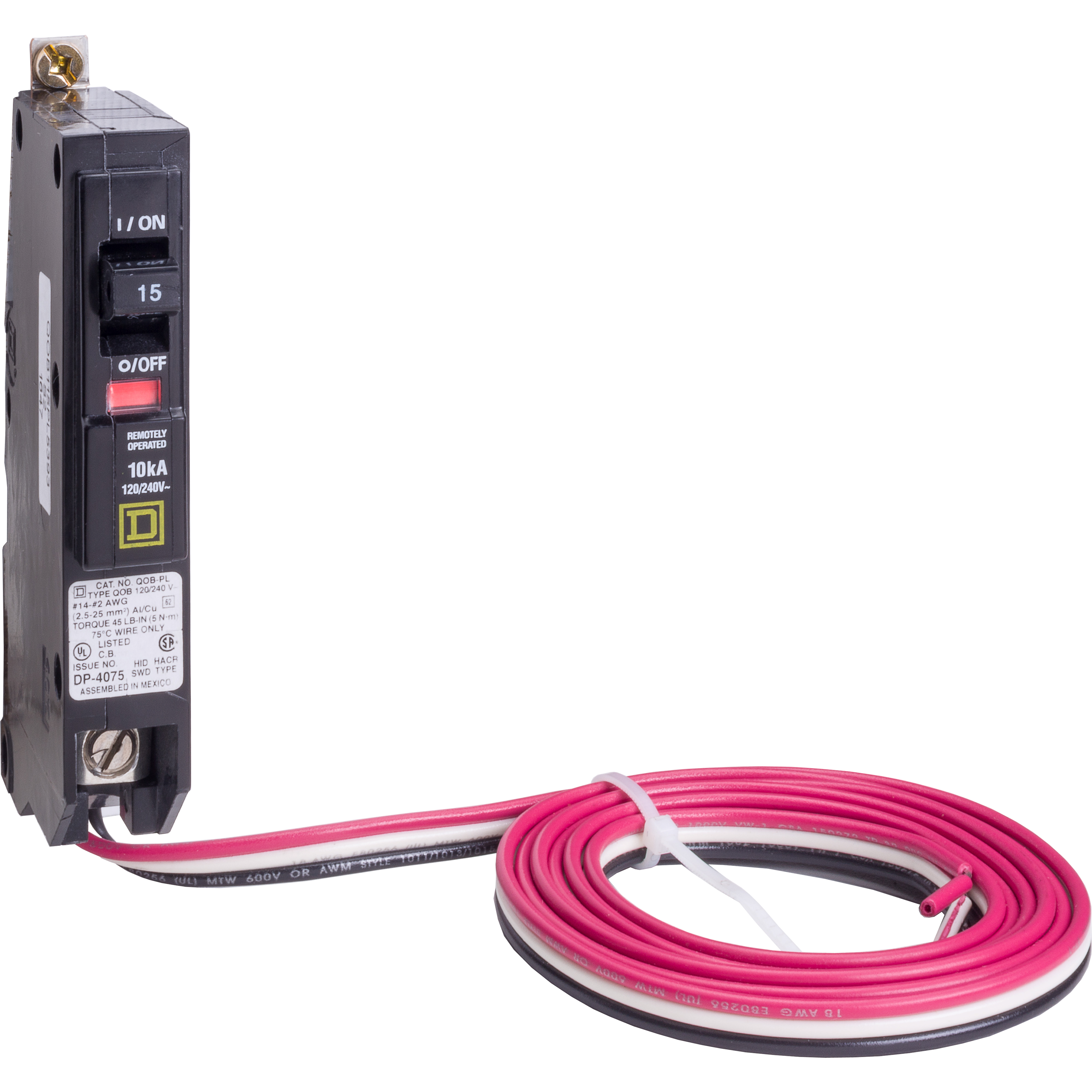

Square D™ QOB115PL5393 Type QOB-PL Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA at 120/240 VAC Interrupt, 1 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB115PL5393 Type QOB-PL Miniature Circuit Breaker, 120/240 VAC, 15 A, 10 kA at 120/240 VAC Interrupt, 1 Poles, Thermal/Magnetic Trip
SKUPDW~6413898
MFGR #QOB115PL5393
Price Not Available
Square D™ Miniature Circuit Breaker, Type QOB-PL, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC Interrupt, Thermal/Magnetic Trip, 1 Pole, Box Lug Connection, 12 to 2 AWG Al, 14 to 2 AWG Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 4.55 in H x 0.75 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Square D™ Miniature Circuit Breaker, Type QOB-PL, 120/240 VAC, 15 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC Interrupt, Thermal/Magnetic Trip, 1 Pole, Box Lug Connection, 12 to 2 AWG Al, 14 to 2 AWG Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 4.55 in H x 0.75 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Alternate Catalog Number QOB115PL5393 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QOB115PL5393 Connection AWG 12...AWG 2 ALUMINIUM-AWG 14...AWG 2 COPPER,BOX LUGS Country of Origin MX Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.6000 lb Gross Weight per Pack Metric 0.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 3.9370 in Height [Metric] 9.6520 cm Item Group 09650 Length 5.5118 in Length [Metric] 13.7160 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403081345&lang=en-us Number Of Poles 1 Operating Temperature 40 A°C Returnable N Standard UL LISTED-CSA Sub Brand QO Type CIRCUIT BREAKER UNSPSC 39121603 UPC 11 78590142804 UPC 12 785901428046 Warranty Description Contractual Warranty:18 months Width 1.1811 in Width [Metric] 3.3020 cm Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 10 KA,10 KA 120/240 V AC 50/60 HZ- 10 KA Voltage Rating 120/240 VAC HACR RATED STANDARD
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB115PL5393 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB115PL5393 |
| Connection | AWG 12...AWG 2 ALUMINIUM-AWG 14...AWG 2 COPPER,BOX LUGS |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.6000 lb |
| Gross Weight per Pack Metric | 0.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.9370 in |
| Height [Metric] | 9.6520 cm |
| Item Group | 09650 |
| Length | 5.5118 in |
| Length [Metric] | 13.7160 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403081345&lang=en-us |
| Number Of Poles | 1 |
| Operating Temperature | 40 A°C |
| Returnable | N |
| Standard | UL LISTED-CSA |
| Sub Brand | QO |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121603 |
| UPC 11 | 78590142804 |
| UPC 12 | 785901428046 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.1811 in |
| Width [Metric] | 3.3020 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 10 KA,10 KA 120/240 V AC 50/60 HZ- 10 KA |
| Voltage Rating | 120/240 VAC |
| HACR RATED |
| STANDARD |
