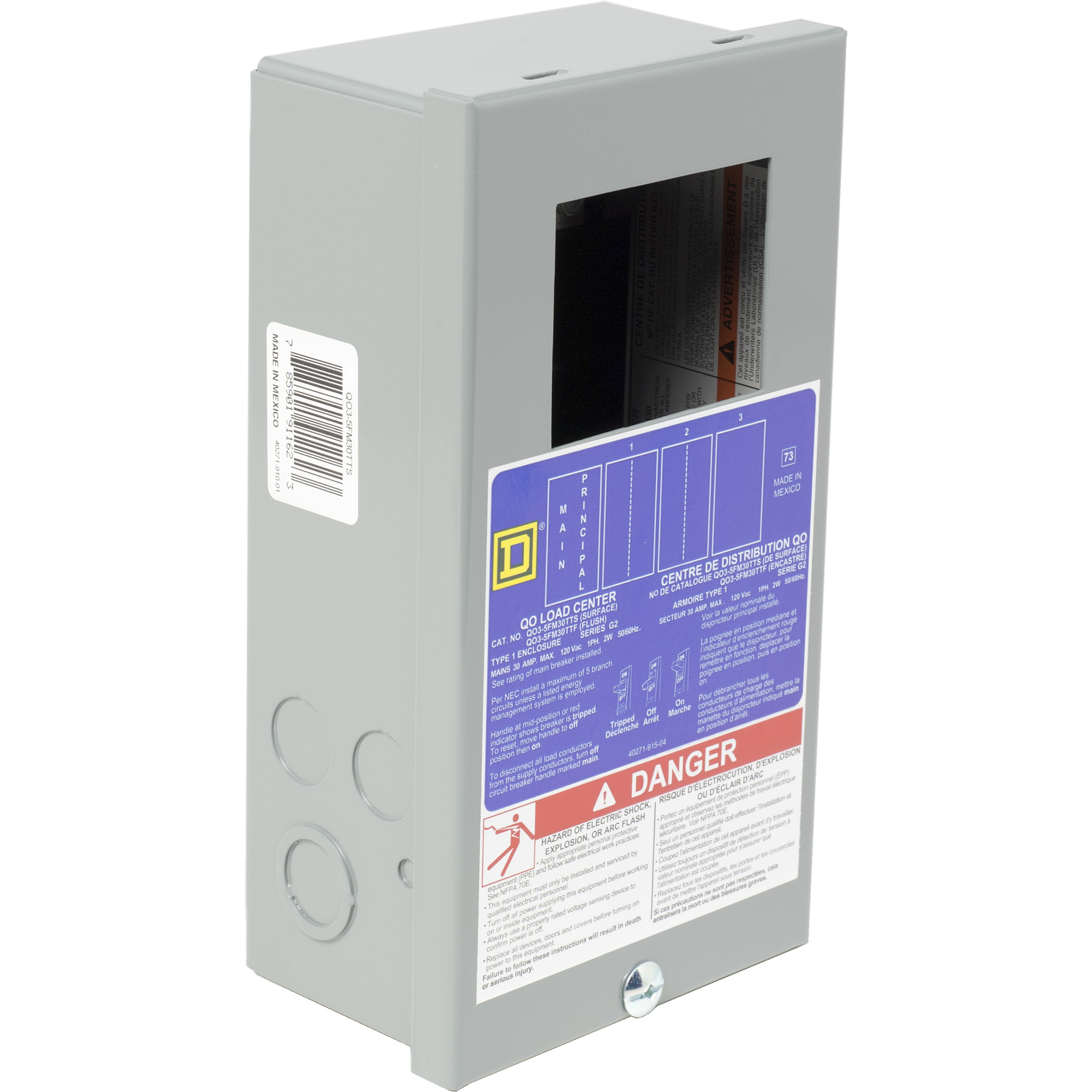

Square D™ QO35FM30TTS LD CTR QO MB 120V 3
SKU773910
MFGR #QO35FM30TTS
Your Cost: $64.13/ea
List: Square D QO35FM30TTS LD CTR QO MB 120V 30A 1PH 3SP NEMA1 SURF,1 phase,10 kA 120VAC,120 VAC,3 5 0,30 A,Main breaker load center,NEMA 1,QO,QO,UL Listed, CSA,surface cover
Square D QO35FM30TTS LD CTR QO MB 120V 30A 1PH 3SP NEMA1 SURF,1 phase,10 kA 120VAC,120 VAC,3 5 0,30 A,Main breaker load center,NEMA 1,QO,QO,UL Listed, CSA,surface cover
Alternate Catalog Number QO35FM30TTS ARRA Compliant N Breaker Mounting Panel Buy American Compliant N Cable Size AWG 14...AWG 8 ALUMINIUM/COPPER Catalog Number QO35FM30TTS Circuit Breaker Type QO Country of Origin MX Cover Type Surface Cover Currency USD Depth 3.1496 in Dimensions 9.30 in H x 4.81 in W x 3.19 in D Enclosure Baked enamel Gray;Welded sheet steel;3 Enclosure Box Size 3 Enclosure Type NEMA 1 EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 164.73 Gross Volume per Pack Metric 2699.43 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.5300 lb Gross Weight per Pack Metric 1.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8538100000 Height 8.4000 in Height [Metric] 8.4000 cm Housing Material Sheet Steel Item Group 00101 Length 24.4000 in Length [Metric] 24.4000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360891&lang=en-us Mounting Type Surface Number of Circuits 5 Number Of Feeders 5 Number Of Poles 1 Number Of Spaces 3 Phase 1 Returnable Y Standard UL Listed, CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedNOM CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QO Substitute Product Catalog Number QO120GFI Type 1-Phase UNSPSC 39121101 UPC 11 78590191162 UPC 12 785901911623 Warranty Description Contractual Warranty:18 months Width 13.0000 in Width [Metric] 13.0000 cm Wire Size 14 to 8 AWG Al/Cu Wiring Configuration 2-wire Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 30 A Interrupt Rating 10 kA Voltage Rating 120/240 VAC MAIN BREAKER,TIN PLATED ALUMINIUM BUSBAR Tin plated aluminum busbar Shielded 1-piece tin plated copper bus construction on convertible mains panels, an industry exclusive for protection and performance Service entrance equipment capable panels Split branch neutral for clutter-free wiring Top or bottom feed by rotating convertible mains panels 180 deg Single captive screw interior mounting on indoor panels to ease removal Straight-in wiring to help minimize service cable installation Side hinge doors on outdoor convertible main panels Gray baked enamel surface finish
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | QO35FM30TTS |
| ARRA Compliant | N |
| Breaker Mounting | Panel |
| Buy American Compliant | N |
| Cable Size | AWG 14...AWG 8 ALUMINIUM/COPPER |
| Catalog Number | QO35FM30TTS |
| Circuit Breaker Type | QO |
| Country of Origin | MX |
| Cover Type | Surface Cover |
| Currency | USD |
| Depth | 3.1496 in |
| Dimensions | 9.30 in H x 4.81 in W x 3.19 in D |
| Enclosure | Baked enamel Gray;Welded sheet steel;3 |
| Enclosure Box Size | 3 |
| Enclosure Type | NEMA 1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 164.73 |
| Gross Volume per Pack Metric | 2699.43 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.5300 lb |
| Gross Weight per Pack Metric | 1.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8538100000 |
| Height | 8.4000 in |
| Height [Metric] | 8.4000 cm |
| Housing Material | Sheet Steel |
| Item Group | 00101 |
| Length | 24.4000 in |
| Length [Metric] | 24.4000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360891&lang=en-us |
| Mounting Type | Surface |
| Number of Circuits | 5 |
| Number Of Feeders | 5 |
| Number Of Poles | 1 |
| Number Of Spaces | 3 |
| Phase | 1 |
| Returnable | Y |
| Standard | UL Listed, CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedNOM CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO120GFI |
| Type | 1-Phase |
| UNSPSC | 39121101 |
| UPC 11 | 78590191162 |
| UPC 12 | 785901911623 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 13.0000 in |
| Width [Metric] | 13.0000 cm |
| Wire Size | 14 to 8 AWG Al/Cu |
| Wiring Configuration | 2-wire |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 30 A |
| Interrupt Rating | 10 kA |
| Voltage Rating | 120/240 VAC |
| MAIN BREAKER,TIN PLATED ALUMINIUM BUSBAR |
| Tin plated aluminum busbar |
| Shielded 1-piece tin plated copper bus construction on convertible mains panels, an industry exclusive for protection and performance |
| Service entrance equipment capable panels |
| Split branch neutral for clutter-free wiring |
| Top or bottom feed by rotating convertible mains panels 180 deg |
| Single captive screw interior mounting on indoor panels to ease removal |
| Straight-in wiring to help minimize service cable installation |
| Side hinge doors on outdoor convertible main panels |
| Gray baked enamel surface finish |
