Square D™

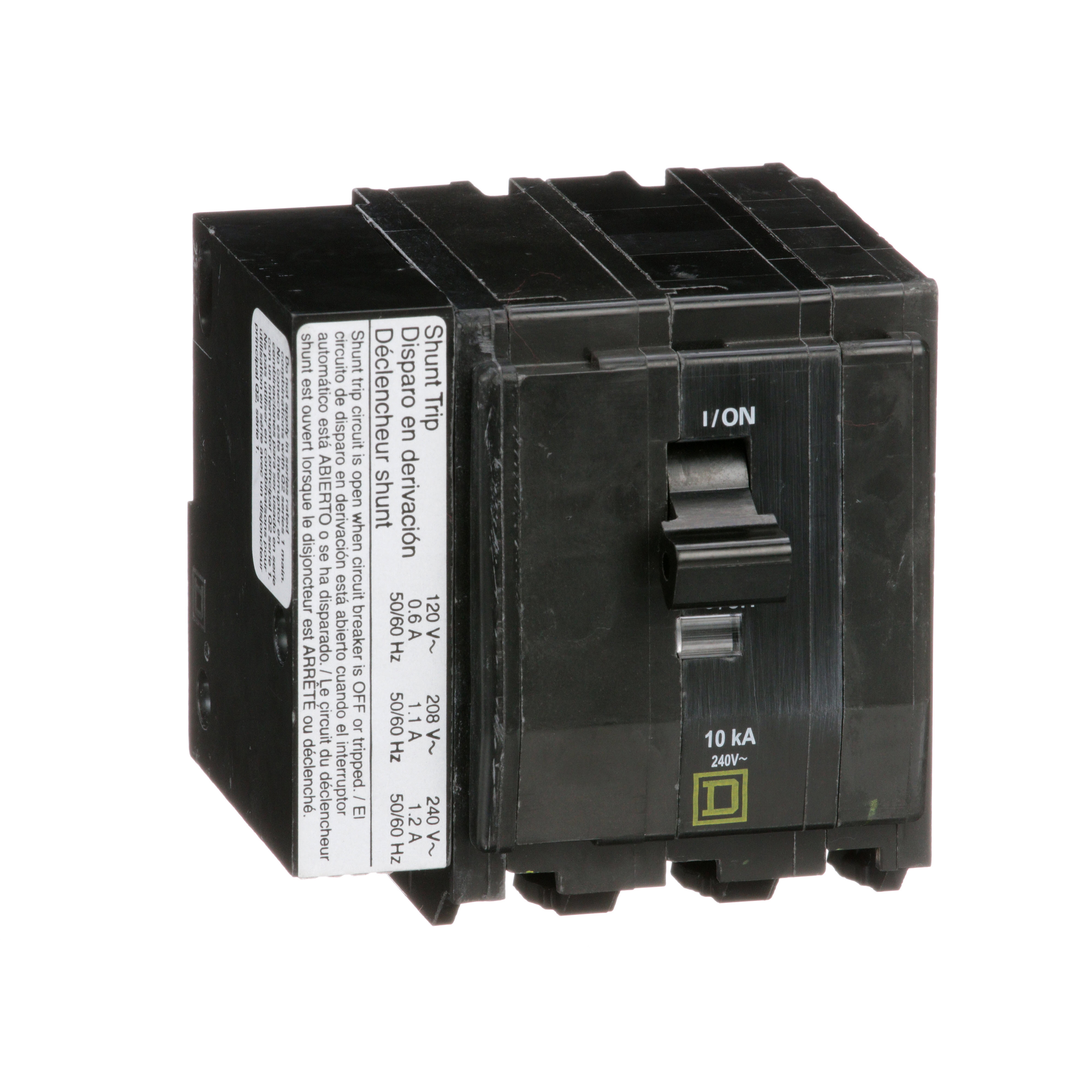

Square D™ QO3201021 Miniature Circuit Breaker, 240 VAC, 20 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QO3201021 Miniature Circuit Breaker, 240 VAC, 20 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU362979
MFGR #QO3201021
Your Cost: $507.95/ea
Square D QO3201021 MINIATURE CIRCUIT BREAKER 240V 20A,10kA,20A,240 Vac,3-Phase,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO3201021 MINIATURE CIRCUIT BREAKER 240V 20A,10kA,20A,240 Vac,3-Phase,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO3201021 Amperage Rating 20 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO3201021 Connection Pressure Plate Connection Type Pressure Plate Country of Origin IE Currency USD Dimensions 2.91 in L EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 51.52 Gross Volume per Pack Metric 844.26 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.1900 lb Gross Weight per Pack Metric 539.77 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 8.1280 in Height [Metric] 8.1280 cm Interrupt Rating 10 kA Item Group 00012 Length 11.6840 in Length [Metric] 11.6840 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399763&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable N Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO142L225PG Temperature Rating 104 °F Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590149409 UPC 12 785901494096 Voltage Rating 240 VAC Warranty Description Contractual Warranty:18 months Width 9.3980 in Width [Metric] 9.3980 cm Wire Size 14 to 8 AWG HACR rated STANDARD PLUG-ON QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication Plug-on QO™ circuit breakers are for use in QO™ loadcenters, NQ and NQOD panelboards, OEM mounting bases and Speed D™ switchboard distribution panels QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit Common trip 120/208/240 VAC shunt trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO3201021 |
| Amperage Rating | 20 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO3201021 |
| Connection | Pressure Plate |
| Connection Type | Pressure Plate |
| Country of Origin | IE |
| Currency | USD |
| Dimensions | 2.91 in L |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 51.52 |
| Gross Volume per Pack Metric | 844.26 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.1900 lb |
| Gross Weight per Pack Metric | 539.77 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.1280 in |
| Height [Metric] | 8.1280 cm |
| Interrupt Rating | 10 kA |
| Item Group | 00012 |
| Length | 11.6840 in |
| Length [Metric] | 11.6840 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399763&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | N |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO142L225PG |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590149409 |
| UPC 12 | 785901494096 |
| Voltage Rating | 240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.3980 in |
| Width [Metric] | 9.3980 cm |
| Wire Size | 14 to 8 AWG |
| HACR rated |
| STANDARD PLUG-ON |
| QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| Plug-on QO™ circuit breakers are for use in QO™ loadcenters, NQ and NQOD panelboards, OEM mounting bases and Speed D™ switchboard distribution panels |
| QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| Common trip |
| 120/208/240 VAC shunt trip |
