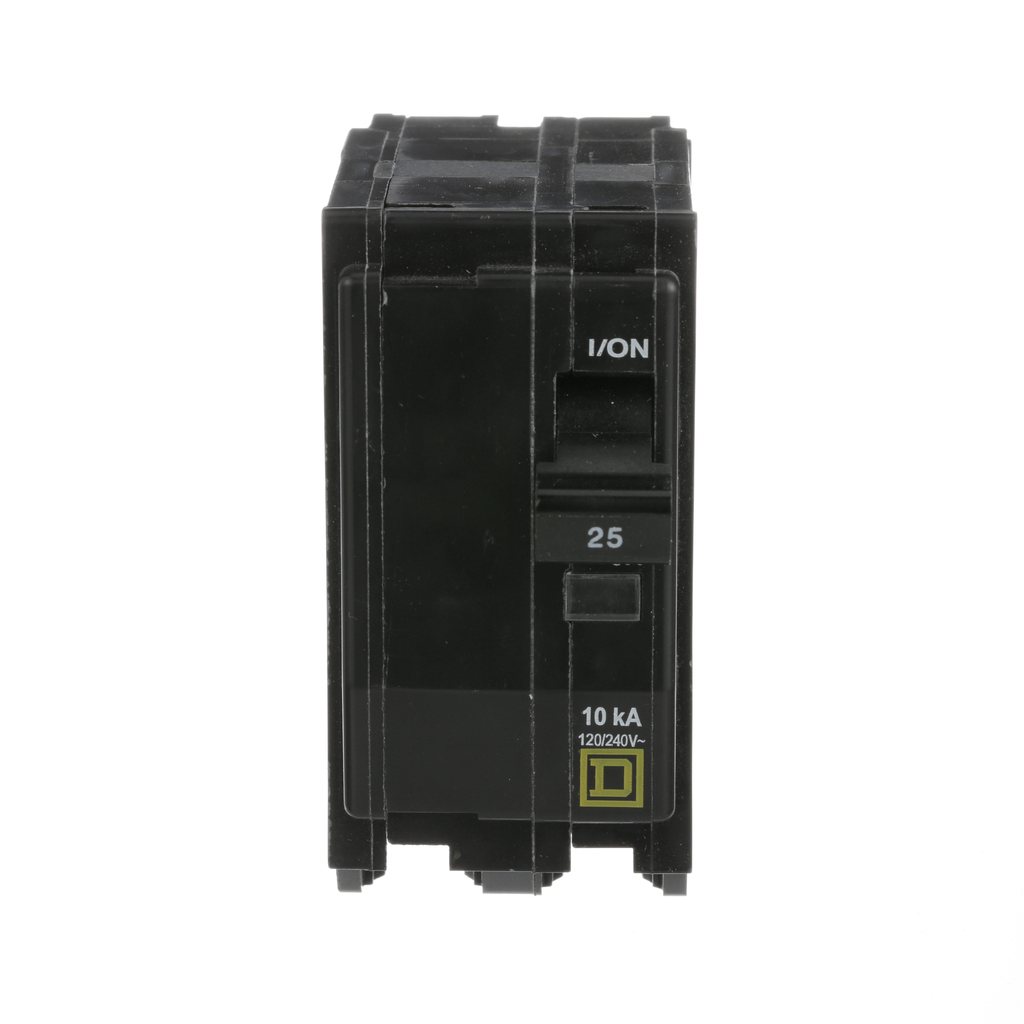

Square D™ QO225HID Type QO-HID Miniature Circuit Breaker, 120/240 VAC/48 VDC, 25 A, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QO225HID Type QO-HID Miniature Circuit Breaker, 120/240 VAC/48 VDC, 25 A, 2 Poles, Thermal Magnetic Trip
SKUPDW~6415121
MFGR #QO225HID
Your Cost: $78.98/ea
List: QO circuit breakers come in plug-on or bolt-on options and a complete range of amperages and interrupting ranges to fit into various QO distribution panels. QO is the ''World's Finest" industry leading offer since 1955, with features engineered for faster installation, reliability and quality.
QO circuit breakers come in plug-on or bolt-on options and a complete range of amperages and interrupting ranges to fit into various QO distribution panels. QO is the ''World's Finest" industry leading offer since 1955, with features engineered for faster installation, reliability and quality.
Amperage Rating 25 A Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS. ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO225HID Connection PRESSURE PLATE #14 TO #8 AWG(AL/CU) Connection Type Pressure Plate Country of Origin MX Dimensions 2.91 in L x 1.5 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.6100 lb Harmonization Tariff Schedule Code 8536200020 Height 3 in Interrupt Rating 10 kA Item Group 00080 Length 2.91 in Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Mounting Type Plug-In Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO1PL Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QO UNSPSC 39121603 UPC 11 785901335344 UPC 12 785901335344 Voltage Rating 120/240 VAC Width 1.5 in Wire Size 14 to 8 AWG PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS. HIGH INTENSITY DISCHARGE PLUG-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button High intensity discharge rated
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 25 A |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS. |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO225HID |
| Connection | PRESSURE PLATE #14 TO #8 AWG(AL/CU) |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Dimensions | 2.91 in L x 1.5 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.6100 lb |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3 in |
| Interrupt Rating | 10 kA |
| Item Group | 00080 |
| Length | 2.91 in |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Mounting Type | Plug-In |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1PL |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QO |
| UNSPSC | 39121603 |
| UPC 11 | 785901335344 |
| UPC 12 | 785901335344 |
| Voltage Rating | 120/240 VAC |
| Width | 1.5 in |
| Wire Size | 14 to 8 AWG |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED FOR USE ON CIRCUITS FEEDING FLUORESCENT AND OTHER HIGH INTENSITY DISCHARGE LIGHTING SYSTEMS. |
| HIGH INTENSITY DISCHARGE PLUG-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
| High intensity discharge rated |
