Square D™

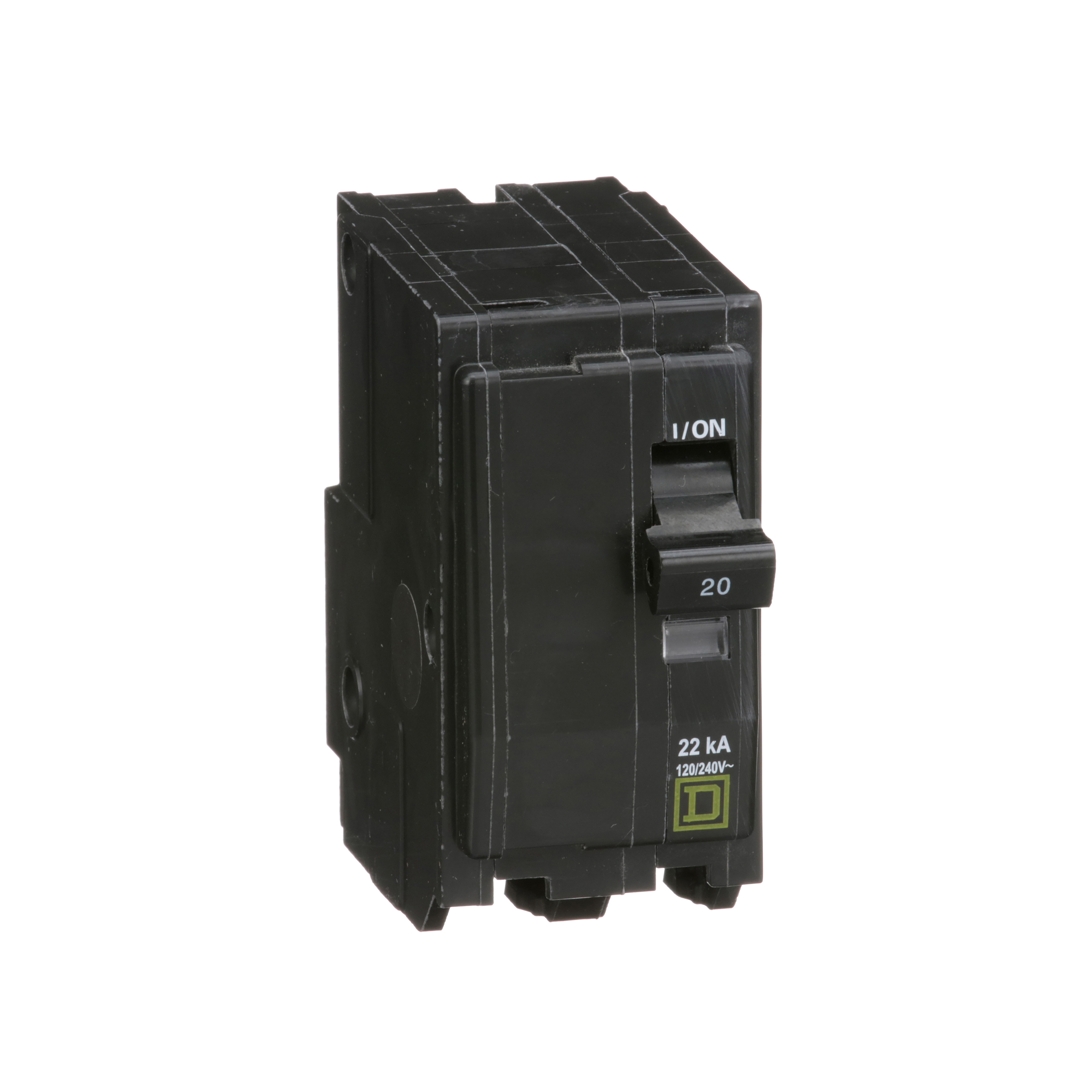

Square D™ QO220VH Miniature Circuit Breaker, 120/240 VAC, 20 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ QO220VH Miniature Circuit Breaker, 120/240 VAC, 20 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU199093
MFGR #QO220VH
Your Cost: $98.11/ea
List: Square D QO220VH MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,120/240 Vac,20A,22kA,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO220VH MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,120/240 Vac,20A,22kA,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO220VH Amperage Rating 20 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO220VH Connection Pressure Plate Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 2.91 in L x 1.5 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 19.58 Gross Volume per Pack Metric 320.86 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 550.0100 lb Gross Weight per Pack Metric 249.48 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.8100 in Height [Metric] 3.8100 cm Interrupt Rating 22 kA Item Group 00926 Length 8.8900 in Length [Metric] 8.8900 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399069&lang=en-us Mounting Type Plug-On Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO1816M200FTRB Temperature Rating 104 °F Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590137182 UPC 12 785901371823 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 14 to 8 AWG HACR rated STANDARD PLUG-ON Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D™ switchboard distribution panels
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO220VH |
| Amperage Rating | 20 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO220VH |
| Connection | Pressure Plate |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 1.5 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 19.58 |
| Gross Volume per Pack Metric | 320.86 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 550.0100 lb |
| Gross Weight per Pack Metric | 249.48 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.8100 in |
| Height [Metric] | 3.8100 cm |
| Interrupt Rating | 22 kA |
| Item Group | 00926 |
| Length | 8.8900 in |
| Length [Metric] | 8.8900 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399069&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1816M200FTRB |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590137182 |
| UPC 12 | 785901371823 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 14 to 8 AWG |
| HACR rated |
| STANDARD PLUG-ON |
| Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D™ switchboard distribution panels |
