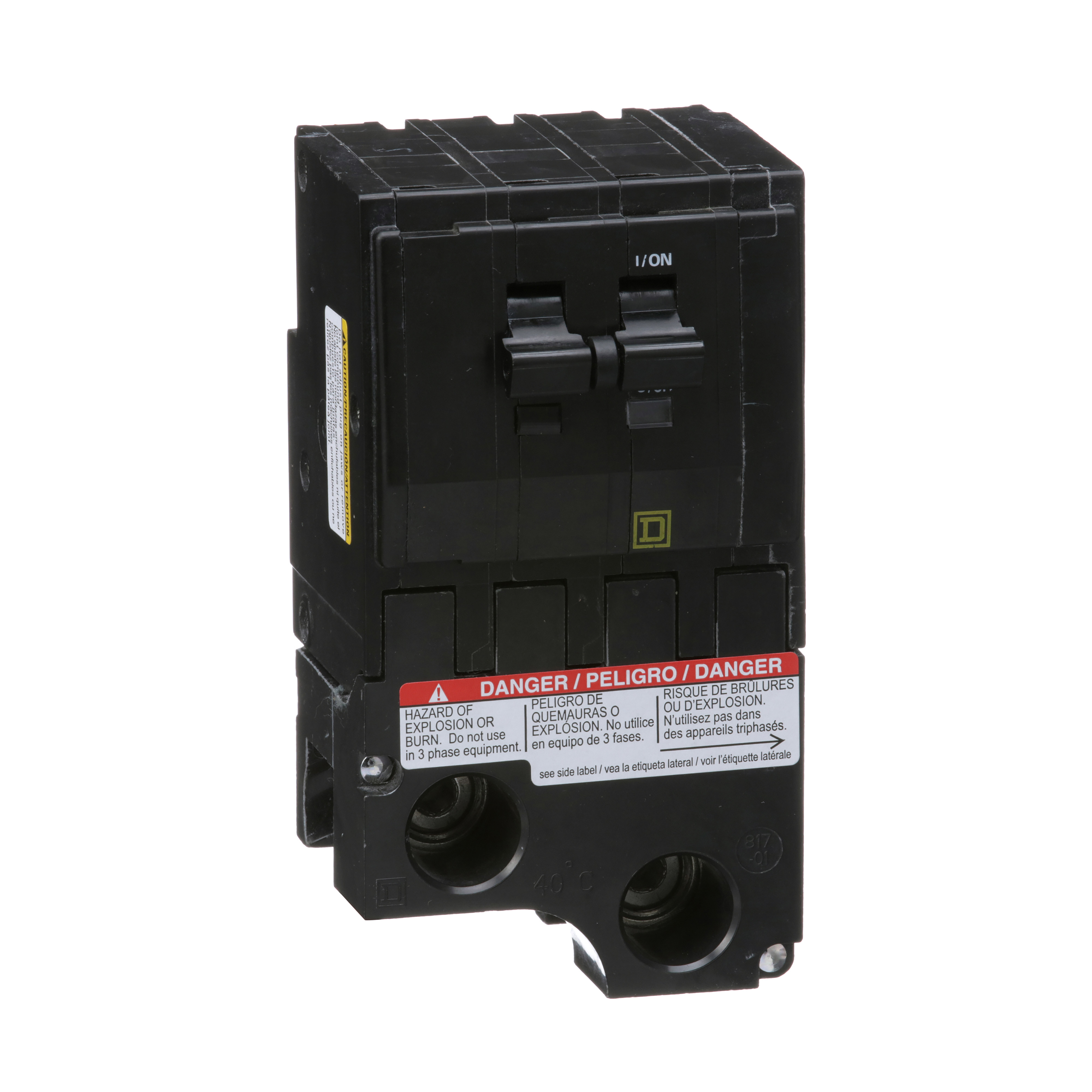

Square D™ QO2150VH Type QO-VH Miniature Circuit Breaker, 120/240 VAC, 150 A, 22 kA at 120/240 VAC Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ QO2150VH Type QO-VH Miniature Circuit Breaker, 120/240 VAC, 150 A, 22 kA at 120/240 VAC Interrupt, 2 Poles
SKU259148
MFGR #QO2150VH
Your Cost: $1,233.27/ea
Square D QO2150VH MINIATURE CIRCUIT BREAKER 120/240V 150A,1-Phase,120/240 Vac,150A,22kA,2P,Box Lugs #1 to 300 AWG/kcmil(Al/Cu),Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified,not rated
Square D QO2150VH MINIATURE CIRCUIT BREAKER 120/240V 150A,1-Phase,120/240 Vac,150A,22kA,2P,Box Lugs #1 to 300 AWG/kcmil(Al/Cu),Calibrated for use at 40 degrees C. See Data Bulletin 0100DB0101 for re-rating information.,Fiberglass filled thermoset molding material.,Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified,not rated
Alternate Catalog Number QO2150VH Amperage Rating 150 A Application Not rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO2150VH Connection BOX LUGS Connection Type Box Lug Country of Origin US Currency USD Dimensions 4.9 in L x 3 in W x 5.72 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 2.7600 lb Gross Weight per Pack Metric 1.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 12.9540 in Height [Metric] 12.9540 cm Interrupt Rating 22 kA Item Group 00083 Length 20.0660 in Length [Metric] 20.0660 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398889&lang=en-us Mounting Type Plug-In Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO142L225PG Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QO-VH Standard UNSPSC 39121603 UPC 11 78590146388 UPC 12 785901463887 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 17.2720 in Width [Metric] 17.2720 cm Wire Size 1 AWG to 300 kcmil Not rated STANDARD PLUG-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO2150VH |
| Amperage Rating | 150 A |
| Application | Not rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO2150VH |
| Connection | BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.9 in L x 3 in W x 5.72 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 2.7600 lb |
| Gross Weight per Pack Metric | 1.25 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 12.9540 in |
| Height [Metric] | 12.9540 cm |
| Interrupt Rating | 22 kA |
| Item Group | 00083 |
| Length | 20.0660 in |
| Length [Metric] | 20.0660 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398889&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO142L225PG |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QO-VH Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590146388 |
| UPC 12 | 785901463887 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 17.2720 in |
| Width [Metric] | 17.2720 cm |
| Wire Size | 1 AWG to 300 kcmil |
| Not rated |
| STANDARD PLUG-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
