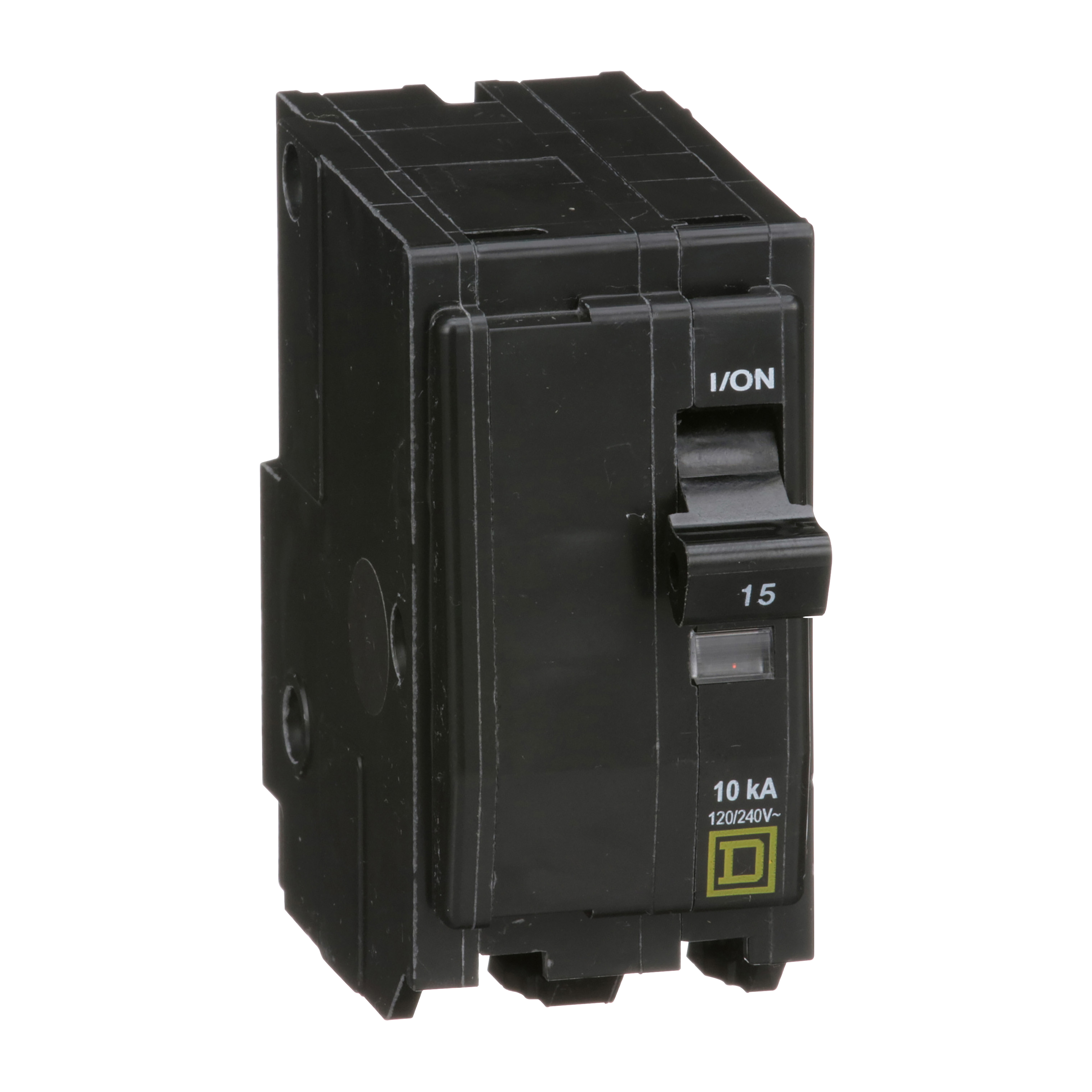

Square D™ QO215 Type QO Miniature Circuit Breaker, 120/240 VAC/48 VDC, 15 A, 2 Poles, Thermal Magnetic Trip
Circuit Breakers
33197
MFG #: QO215
Square D™
26.03000
/ ea
Square D QO215 MINIATURE CIRCUIT BREAKER 120/240V 15A,1-Phase,10kA,120/240 Vac,15A,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Plug-On,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8027746360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QO215(3D Rendering URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog URL - Square_D_QO215_Catalog.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_5SBPNH6D134WRE7C.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_1Q0IMPWU8TXZLDYV.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0102DB2301.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/h3tJoPmFAOw(Video)
- Warranty URL - Square_D_PA21000RC_Warranty.pdf(Warranty URL)
- Applications
- Features
| HACR rated |
| STANDARD PLUG-ON |
| QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in two-and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Plug-on QO circuit breakers are for use in QO load centers, NQ and NQOD panelboards, OEM mounting bases, and Speed D™ switchboard distribution panels |
| QO and QOB circuit breakers have VISI-TRIP feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| 14 - 10 AWG copper, 14 - 8 AWG copper/aluminum |
| Common trip |
| Standard |
