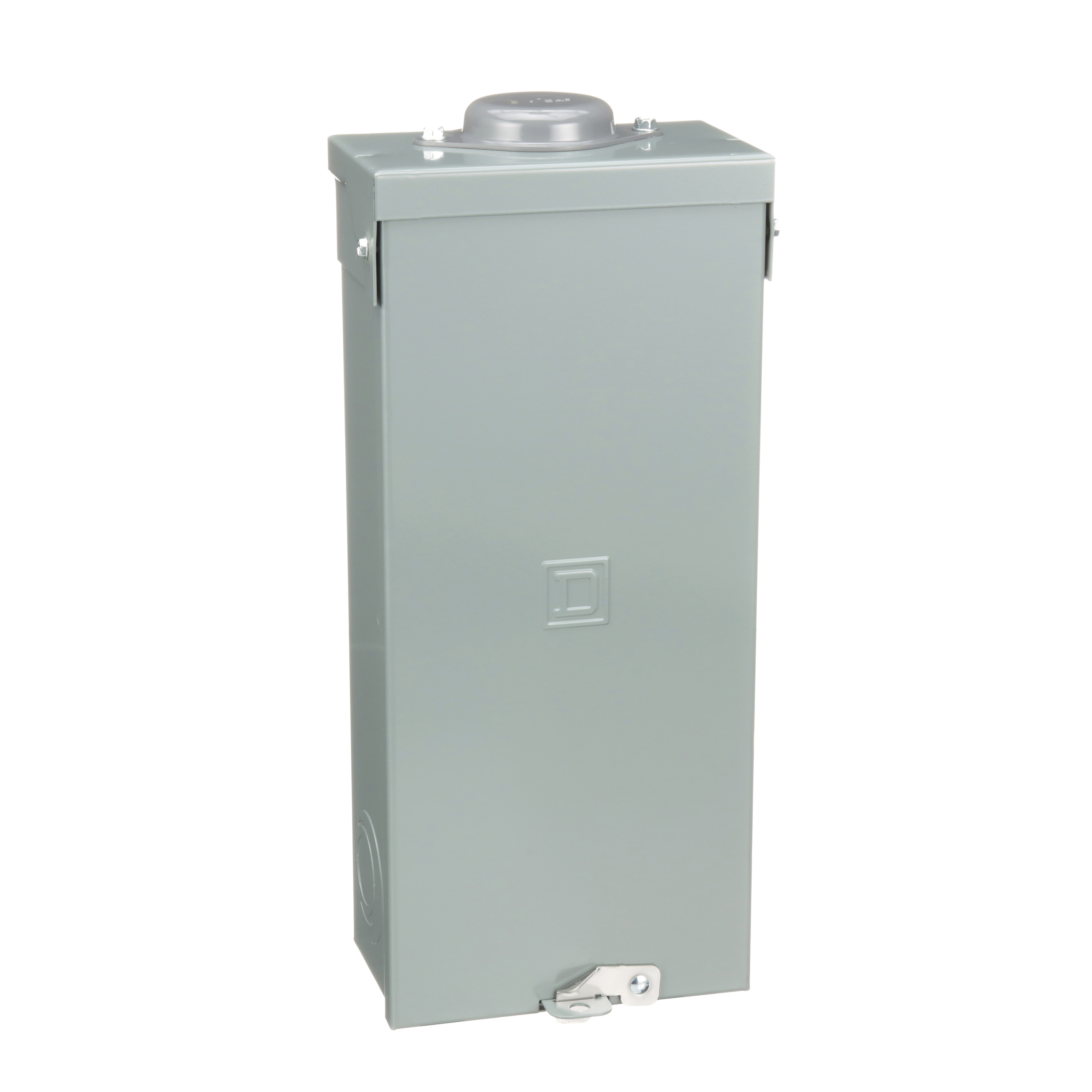

Square D™ QO2125BNRB 1-Phase Circuit Breaker Enclosure, 6.93 in W x 4.12 in D x 16.18 in H, NEMA 3R NEMA Rating, Steel/Tin Plated Copper
Circuit Breaker Enclosures
1124074
MFG #: QO2125BNRB
Square D™
110.60000
/ ea
Square D™, QO2125BNRB, Circuit Breaker Enclosure, 1-Phase, 6.93 in Width, 4.12 in Depth, 16.18 in Height, NEMA 3R NEMA Rating, 2 Pole, 124 A at 120/240 VAC Electrical Rating, Surface Mounting, Steel/Tin Plated Copper, Baked Enamel Coated, Gray
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=7994020360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QO2125BNRB(3D Rendering URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3044.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3044.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_T3AYI5VEBOQ4XD7W.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_H0NMYB95A8SXJCUG.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_AIXJU2WGHO3QSRKB.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_VYUJCH4OFX3G26PB.zip(Tech Drawing URL)
- Applications
- Features
| For use with QO miniature circuit breaker |
| Lug electrical connection |
| 22 kA short circuit current, 2 spaces, 2-circuit, 1-phase |
| 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper AWG wire |
| Lugs electrical connection |
| 3-wire wiring configuration |
