Square D™

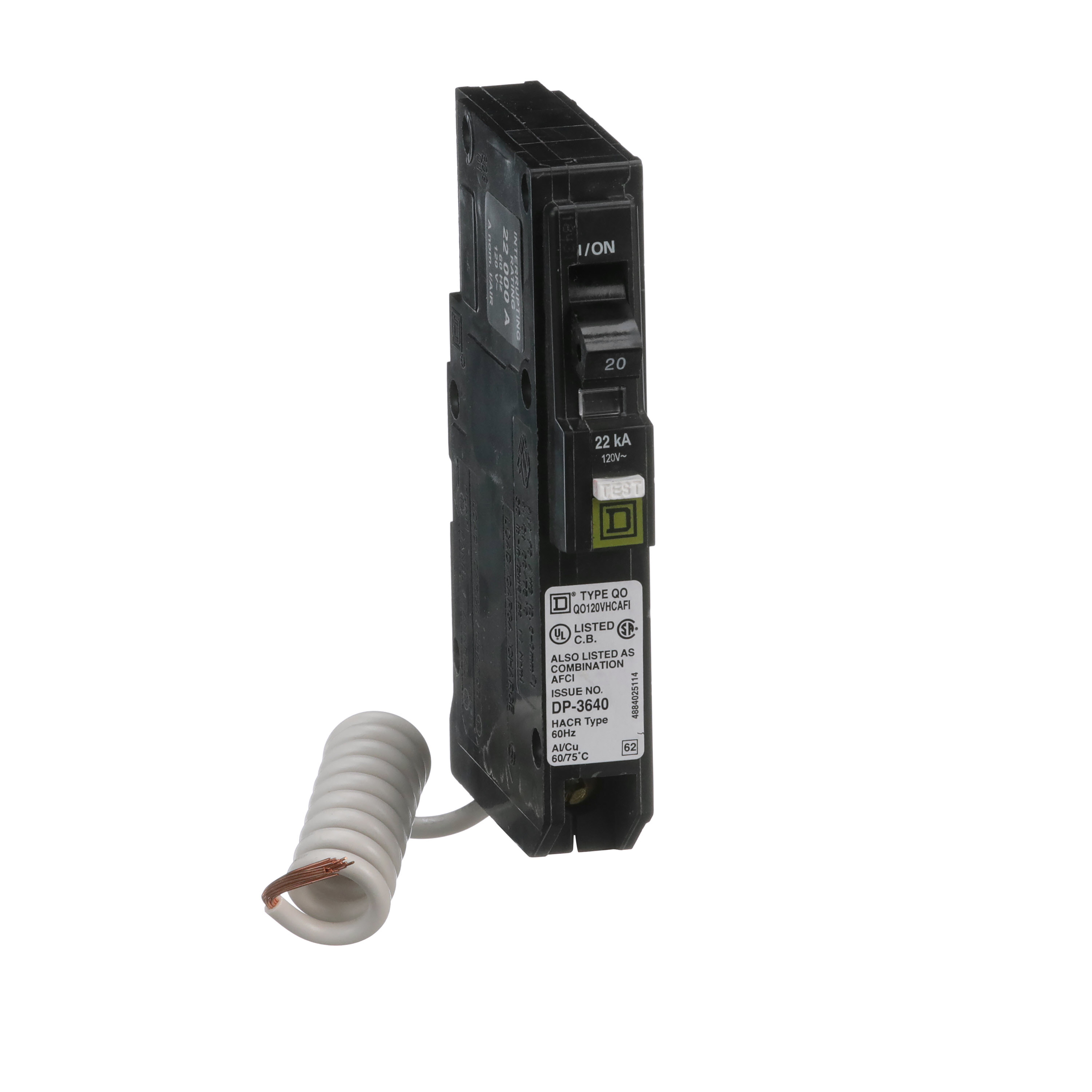

Square D™ QO120VHCAFI Type QO-VHCAFI Miniature Circuit Breaker, 120 VAC, 20 A, 22 kA at 120 VAC Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Square D™ QO120VHCAFI Type QO-VHCAFI Miniature Circuit Breaker, 120 VAC, 20 A, 22 kA at 120 VAC Interrupt, 1 Pole
SKU885453
MFGR #QO120VHCAFI
Your Cost: $620.70/ea
Square D QO120VHCAFI MINIATURE CIRCUIT BREAKER 120V 20A,1-Phase,120 Vac,1P,20A,22kA,Combination ARC-Fault Plug-On,Miniature Circuit Breaker,Pressure Plate #12 to #8 AWG(Al) - #14 to #8 AWG(Cu),Provides overload and short circuit protection Designed to detect arc faults,QO,UL Listed - CSA Certified
Square D QO120VHCAFI MINIATURE CIRCUIT BREAKER 120V 20A,1-Phase,120 Vac,1P,20A,22kA,Combination ARC-Fault Plug-On,Miniature Circuit Breaker,Pressure Plate #12 to #8 AWG(Al) - #14 to #8 AWG(Cu),Provides overload and short circuit protection Designed to detect arc faults,QO,UL Listed - CSA Certified
Alternate Catalog Number QO120VHCAFI Amperage Rating 20 A Application Not rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO120VHCAFI Connection PRESSURE PLATE #12 TO #8 AWG(AL) - #14 TO #8 AWG(CU) Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 2.91 in L x 0.75 in W x 4.75 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.5600 lb Gross Weight per Pack Metric 254.01 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 3.5560 in Height [Metric] 3.5560 cm Interrupt Rating 22 kA Item Group 06303 Length 14.2240 in Length [Metric] 14.2240 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360115&lang=en-us Mounting Type Plug-In Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QO-VHCAFI Combination Miniature UNSPSC 39121603 UPC 11 78590170983 UPC 12 785901709831 Voltage Rating 120 VAC Warranty Description Contractual Warranty:18 months Width 10.6680 in Width [Metric] 10.6680 cm Wire Size 12 to 8 AWG, 14 to 8 AWG Not rated COMBINATION ARC-FAULT PLUG-ON Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO120VHCAFI |
| Amperage Rating | 20 A |
| Application | Not rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO120VHCAFI |
| Connection | PRESSURE PLATE #12 TO #8 AWG(AL) - #14 TO #8 AWG(CU) |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 4.75 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.5600 lb |
| Gross Weight per Pack Metric | 254.01 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 3.5560 in |
| Height [Metric] | 3.5560 cm |
| Interrupt Rating | 22 kA |
| Item Group | 06303 |
| Length | 14.2240 in |
| Length [Metric] | 14.2240 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360115&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QO-VHCAFI Combination Miniature |
| UNSPSC | 39121603 |
| UPC 11 | 78590170983 |
| UPC 12 | 785901709831 |
| Voltage Rating | 120 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 10.6680 in |
| Width [Metric] | 10.6680 cm |
| Wire Size | 12 to 8 AWG, 14 to 8 AWG |
| Not rated |
| COMBINATION ARC-FAULT PLUG-ON |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
