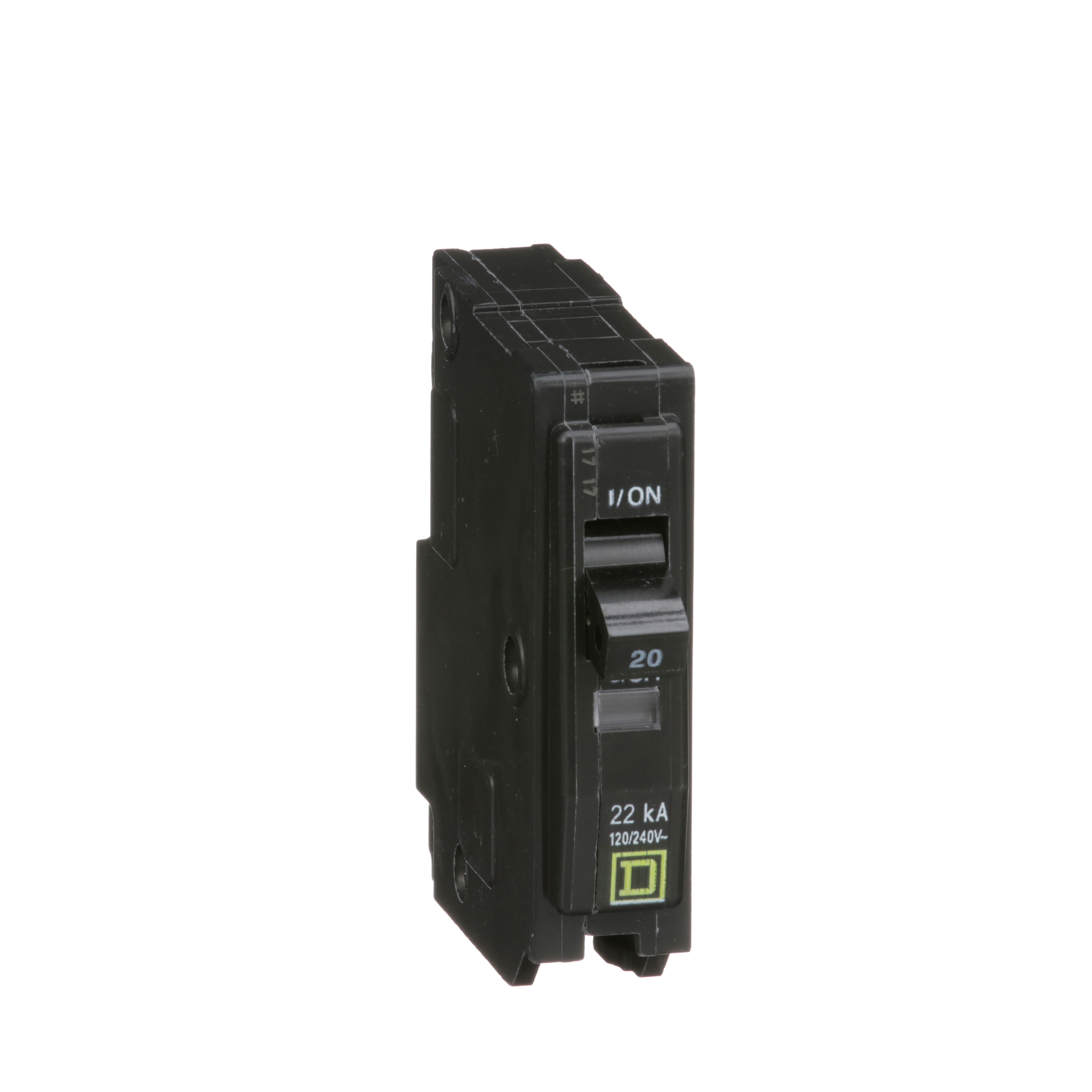

Square D™ QO120VH Miniature Circuit Breaker, 120/240 VAC, 20 A, 22 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QO120VH Miniature Circuit Breaker, 120/240 VAC, 20 A, 22 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU98005
MFGR #QO120VH
Your Cost: $30.06/ea
List: Square D QO120VH MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,120/240 Vac,20A,22kA,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO120VH MINIATURE CIRCUIT BREAKER 120/240V 20A,1-Phase,120/240 Vac,20A,22kA,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO120VH Amperage Rating 20 A Application SWITCHING DUTY RATED ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO120VH Connection PRESSURE PLATE #14 TO #8 AWG(AL/CU) Connection Type Pressure Plate Country of Origin IE Currency USD Dimensions 2.91 in L x 0.75 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 7.92 Gross Volume per Pack Metric 129.78 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 540.1300 lb Gross Weight per Pack Metric 245.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 0.8380 in Height [Metric] 0.8380 cm Interrupt Rating 22 kA Item Group 00926 Length 0.7620 in Length [Metric] 0.7620 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398485&lang=en-us Mounting Type Plug-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QOHPL Temperature Rating 104 °F Trip Type Thermal Magnetic Type Standard UNSPSC 39121603 UPC 11 78590137178 UPC 12 785901371786 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 0.2030 in Width [Metric] 0.2030 cm Wire Size 14 to 8 AWG SWITCHING DUTY RATED STANDARD PLUG-ON QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously Plug-on QO® circuit breakers are for use in QO® load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D® switchboard distribution panels QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit 14 to 8 AWG aluminum/copper wire Standard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO120VH |
| Amperage Rating | 20 A |
| Application | SWITCHING DUTY RATED |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO120VH |
| Connection | PRESSURE PLATE #14 TO #8 AWG(AL/CU) |
| Connection Type | Pressure Plate |
| Country of Origin | IE |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 7.92 |
| Gross Volume per Pack Metric | 129.78 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 540.1300 lb |
| Gross Weight per Pack Metric | 245.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 0.8380 in |
| Height [Metric] | 0.8380 cm |
| Interrupt Rating | 22 kA |
| Item Group | 00926 |
| Length | 0.7620 in |
| Length [Metric] | 0.7620 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398485&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QOHPL |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590137178 |
| UPC 12 | 785901371786 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 0.2030 in |
| Width [Metric] | 0.2030 cm |
| Wire Size | 14 to 8 AWG |
| SWITCHING DUTY RATED |
| STANDARD PLUG-ON |
| QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Plug-on QO® circuit breakers are for use in QO® load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D® switchboard distribution panels |
| QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| 14 to 8 AWG aluminum/copper wire |
| Standard |
