Square D™

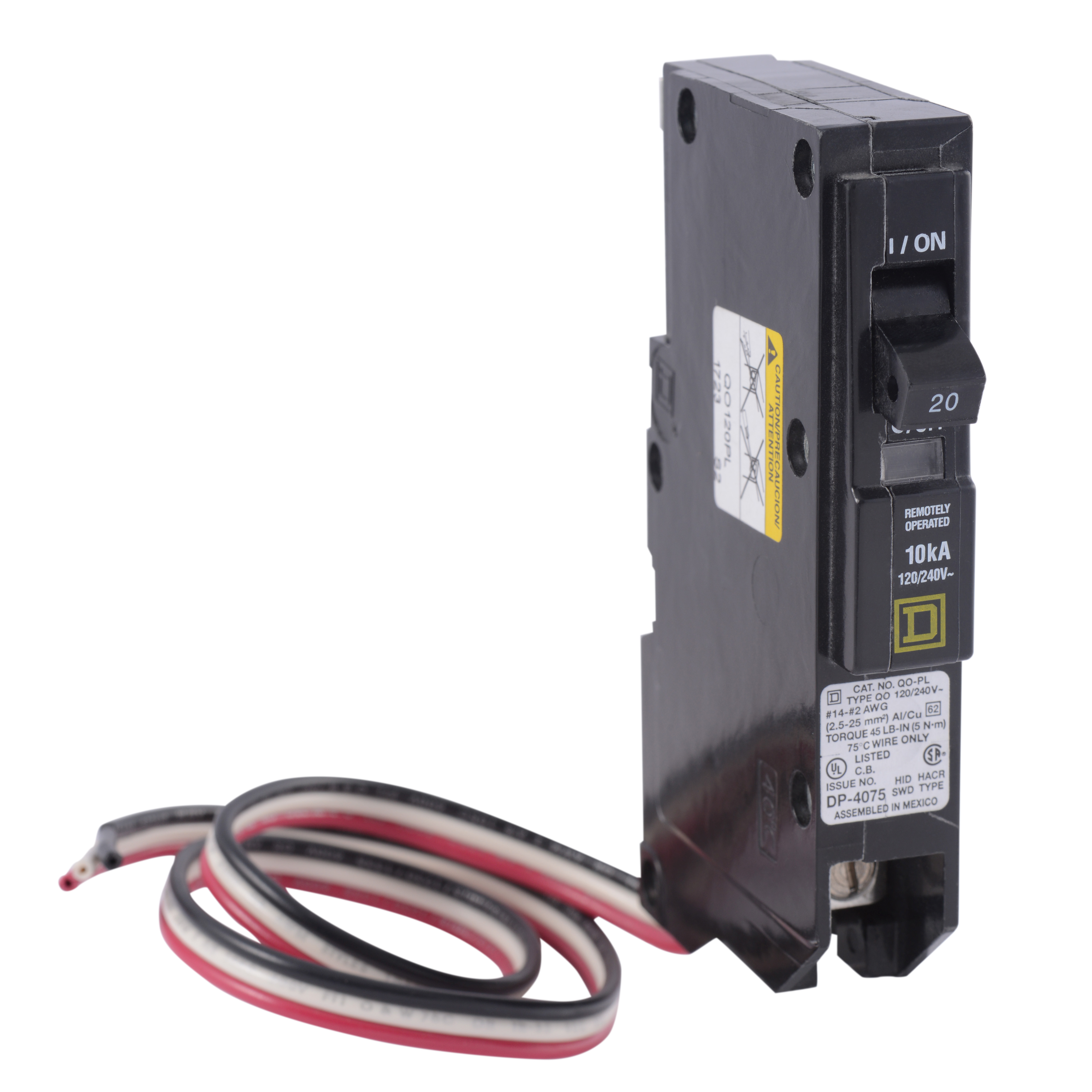

Square D™ QO120PL5393 Type QO-PL Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA at 120/240 VAC Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Square D™ QO120PL5393 Type QO-PL Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA at 120/240 VAC Interrupt, 1 Pole
SKU825617
MFGR #QO120PL5393
Your Cost: $139.61/ea
Square D QO120PL5393 MINIATURE CIRCUIT BREAKER 120/240V 20A
Square D QO120PL5393 MINIATURE CIRCUIT BREAKER 120/240V 20A
Alternate Catalog Number QO120PL5393 Amperage Rating 20 A Application HACR rated ARRA Compliant N Brand Square D™ Buy American Compliant N Catalog Number QO120PL5393 Connection AWG 12...AWG 2 ALUMINIUM-AWG 14...AWG 2 COPPER,BOX LUGS Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 0.75 in W x 4.55 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Weight Per Pack 0.6000 lb Gross Weight per Pack Metric 0.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 9.6520 in Height [Metric] 9.6520 cm Interrupt Rating 10 kA Item Group 09650 Length 13.7160 in Length [Metric] 13.7160 cm Manufacturer Schneider Electric Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254000&lang=en-us Mounting Type Plug-In Number Of Poles 1 Operating Temperature 40 °C Returnable N Standard UL LISTED-CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Stock Status NONSTOCK Sub Brand QO Substitute Product Catalog Number QO142L225PG Temperature Rating 104 °F Trip Type Thermal Magnetic Type Type QO-PL Standard UNSPSC 39121603 UPC 11 78590140472 UPC 12 785901404729 Voltage Rating 120/240 VAC Warranty Description Contractual Warranty:18 months Width 3.3020 in Width [Metric] 3.3020 cm Wire Size 12 to 2 AWG, 14 to 2 AWG HACR RATED STANDARD Designed for superior safety, quality and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space compact 3/4 in W design for small system footprint Faster installation fewer connections Frees gutter space no pigtails with the innovative plug-on neutral design Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button Remote control switching capability
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO120PL5393 |
| Amperage Rating | 20 A |
| Application | HACR rated |
| ARRA Compliant | N |
| Brand | Square D™ |
| Buy American Compliant | N |
| Catalog Number | QO120PL5393 |
| Connection | AWG 12...AWG 2 ALUMINIUM-AWG 14...AWG 2 COPPER,BOX LUGS |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 4.55 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.6000 lb |
| Gross Weight per Pack Metric | 0.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 9.6520 in |
| Height [Metric] | 9.6520 cm |
| Interrupt Rating | 10 kA |
| Item Group | 09650 |
| Length | 13.7160 in |
| Length [Metric] | 13.7160 cm |
| Manufacturer | Schneider Electric |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254000&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Returnable | N |
| Standard | UL LISTED-CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Stock Status | NONSTOCK |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO142L225PG |
| Temperature Rating | 104 °F |
| Trip Type | Thermal Magnetic |
| Type | Type QO-PL Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590140472 |
| UPC 12 | 785901404729 |
| Voltage Rating | 120/240 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.3020 in |
| Width [Metric] | 3.3020 cm |
| Wire Size | 12 to 2 AWG, 14 to 2 AWG |
| HACR RATED |
| STANDARD |
| Designed for superior safety, quality and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space compact 3/4 in W design for small system footprint |
| Faster installation fewer connections |
| Frees gutter space no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button |
| Remote control switching capability |
