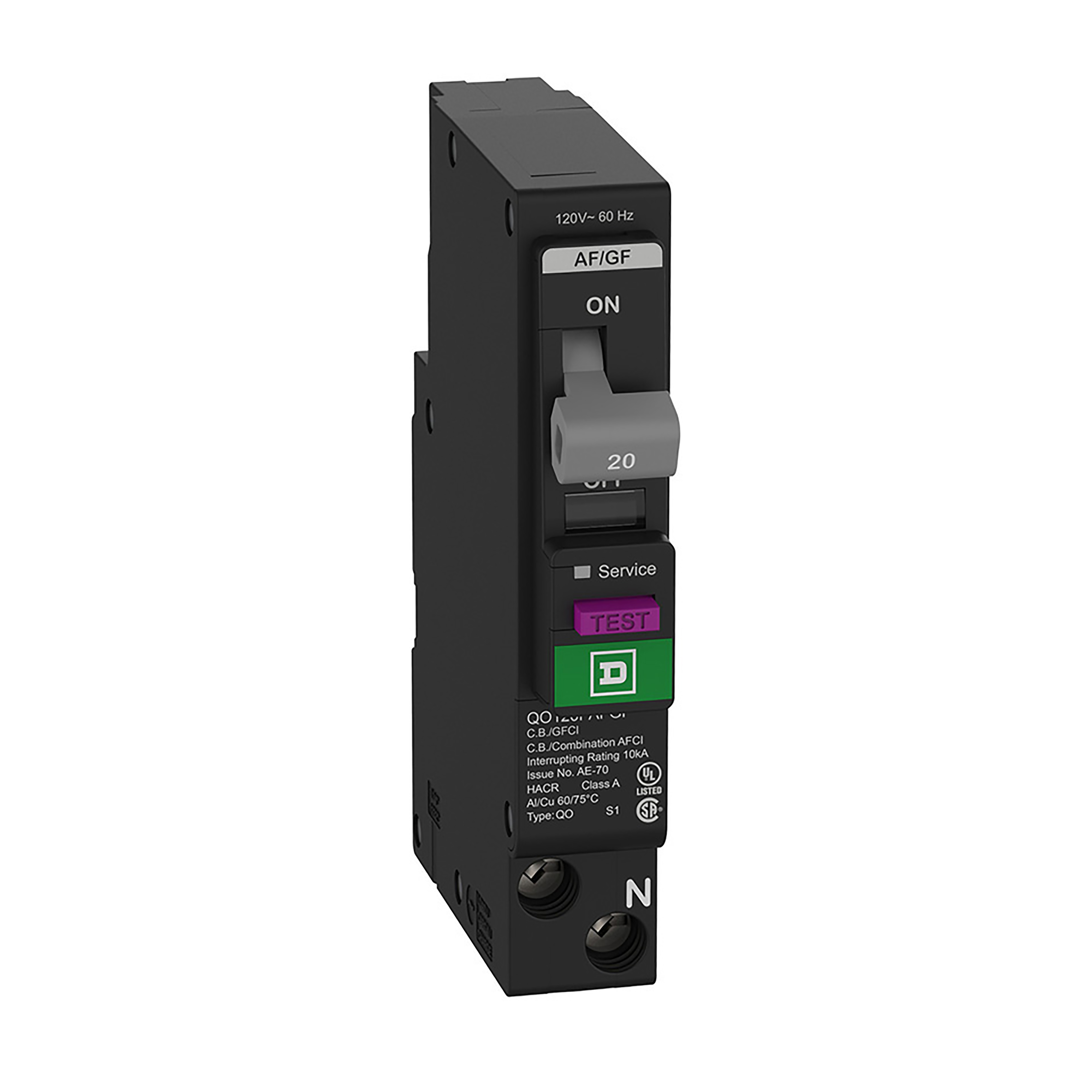

Square D™ QO120PAFGF QO Series Combination ARC And Ground Fault 1 Pole Mini Circuit Breaker, 120 VAC, 20 A, 10 kA at 120 VAC Interrupt, 1 Poles, Shunt Trip
Miniature Circuit Breakers
1345556
MFG #: QO120PAFGF
Square D™
94.58000
/ ea
Square D™, QO120PAFGF, 1 Pole Mini Circuit Breaker, Combination ARC And Ground Fault, Series: QO Series, 120 VAC, 20 A, 50, 60 Hz Frequency, 10 kA at 120 VAC Interrupt, Shunt Trip, 1 Pole, Toggle Actuator, Pressure Plate Connection, 14 to 8 AWG Copper/Aluminium Wire, Plug-In Mounting, 104 deg F, 4.10 in H x 0.75 in W x 2.72 in D Dimensions
- 360 Degree View URL - index.html?pid=11003&id=17632238360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Service Manual URL - 11003_KG59ZMXOH3TLI0EF.pdf(Service Manual URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0102DB2301.pdf(Tech Bulletin URL)
- Spec Sheet URL - 11003_ZVTIQ2JK91F8UXN4.pdf(Spec Sheet URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_5WUI18FQPHXJ6LZS.pdf(Tech Drawing URL)
- Applications
- Features
| Not rated |
| QO one-pole standard circuit breakers (10 A to 70 A) |
| QO two-pole standard circuit breakers (10 A to 200A) |
| QO three-pole standard circuit breakers (10 A to 100 A) |
| QO tandem circuit breakers (15 A to 20 A) |
| QO ground-fault circuit interrupters (1- and 2-pole, 15 A to 60 A; 3-pole 15 A - 50 A) |
| QO-EPD circuit breakers with 30 mA equipment ground-fault protection (1-pole, 2-pole, 15 A to 60 A; 3-pole, 15 A - 50 A) |
| QO arc-fault circuit interrupters (1-pole, 15 A and 20 A) |
| QO combination arc-fault circuit interrupters (1-pole, 15 A and 20 A) |
| QO Dual Function Circuit Breakers (1-pole, 15 A and 20 A) |
| QO-SWN circuit breakers with switch neutral common trip, NEC 514-5 (2- and 3-pole, 10 A to 50 A) |
| QO-SWN circuit breakers with switch neutral common trip, NEC 514-5 (2- and 3-pole, 10 A to 50 A) |
| QO-HID circuit breakers for circuits feeding fluorescent or high intensity discharge (1-, 2- and 3-pole, 15 A to 50 A) |
| A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches, is also available |
| QO sub-feed lugs, 2-pole rated 60A, 125A and 225A, 3-pole rated 125A |
