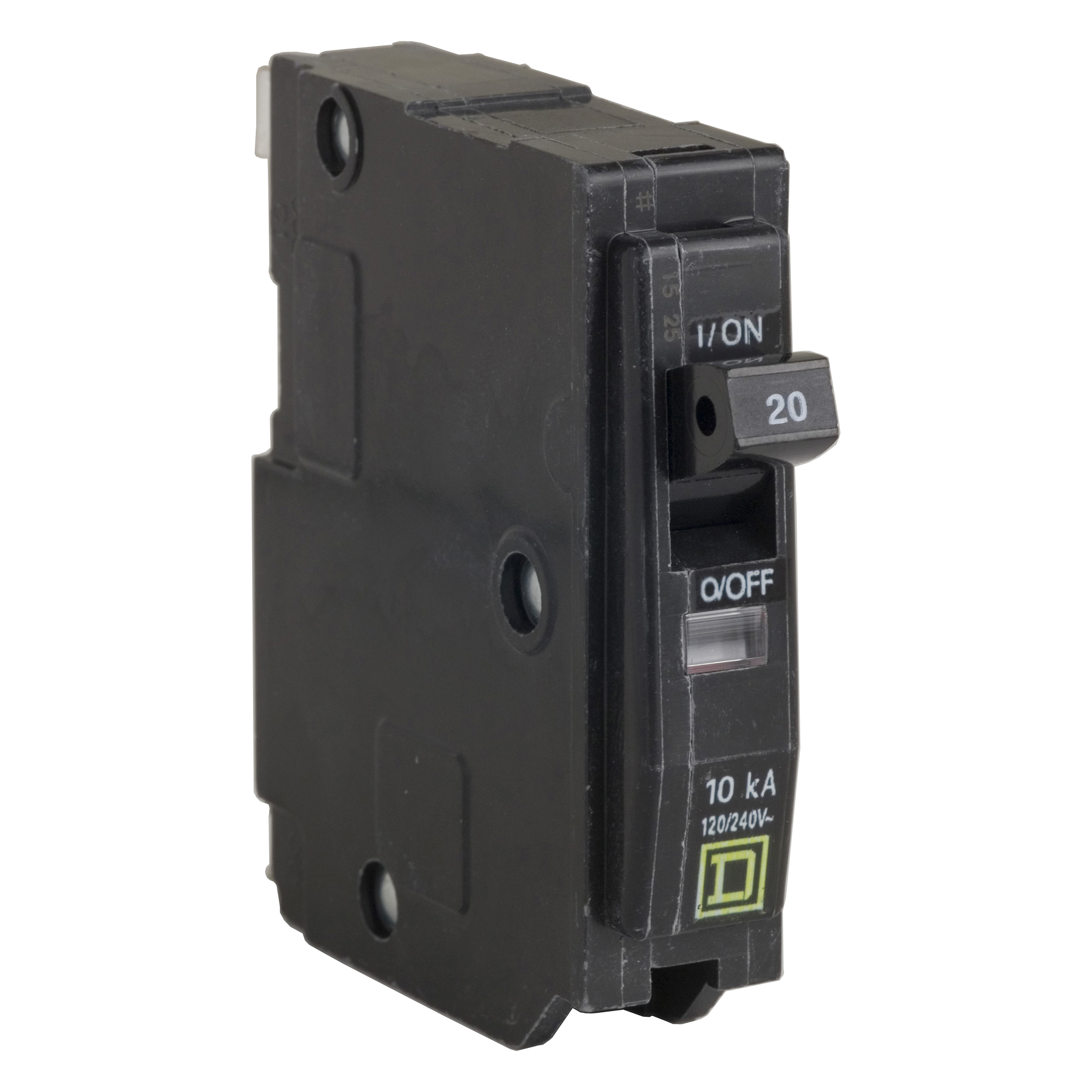

Square D™ QO12035 Type QO Miniature Circuit Breaker, 120/240 VAC, 48 VDC, 20 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 1 Poles, Thermal/Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QO12035 Type QO Miniature Circuit Breaker, 120/240 VAC, 48 VDC, 20 A, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, 1 Poles, Thermal/Magnetic Trip
SKUPDW~6414913
MFGR #QO12035
Your Cost: $47.66/ea
List: Square D™ Miniature Circuit Breaker, Type QO, 120/240 VAC, 48 VDC, 20 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 1 Pole, Pressure Plate Connection, 14 to 8 AWG Al/Cu Wire, NEMA AB1 Enclosure, Plug-In Mounting, 104 deg F, 3 in H x 0.75 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Square D™ Miniature Circuit Breaker, Type QO, 120/240 VAC, 48 VDC, 20 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 1 Pole, Pressure Plate Connection, 14 to 8 AWG Al/Cu Wire, NEMA AB1 Enclosure, Plug-In Mounting, 104 deg F, 3 in H x 0.75 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Alternate Catalog Number QO12035 Application Not rated ARRA Compliant N Buy American Compliant N Catalog Number QO12035 Connection AWG 14...AWG 8 COPPER OR ALUMINIUM,PRESSURE PLATE Connection Type Pressure Plate Country of Origin MX Currency USD Dimensions 3 in H x 0.75 in W x 2.91 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frequency Rating 50/60 Gross Weight Per Pack 1.4061 lb Gross Weight per Pack Metric 140.61 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 2.0320 in Height [Metric] 2.0320 cm Item Group 00080 Length 8.3820 in Length [Metric] 8.3820 cm Material Fiberglass Filled Thermoset Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398411&lang=en-us Mounting Type Plug-In Number Of Poles 1 Operating Temperature 50 A°C Returnable N Standard UL LISTED-CSA Sub Brand QO Temperature Rating 104 Type Miniature circuit-breaker UNSPSC 39121603 UPC 11 78590175175 UPC 12 785901751755 Warranty Description Contractual Warranty:18 months Width 7.6200 in Width [Metric] 7.6200 cm Wire Size 14 to 8 AWG Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 10 KA 120/240 V AC 50/60 HZ- 10 KA 120 V AC 50/60 HZ- 5 KA 48 V DC,10 KA-5 KA Trip Type Thermal Magnetic Voltage Rating 120/240 V AC-120 V AC-48 V DC NOT RATED STANDARD
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO12035 |
| Application | Not rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QO12035 |
| Connection | AWG 14...AWG 8 COPPER OR ALUMINIUM,PRESSURE PLATE |
| Connection Type | Pressure Plate |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in H x 0.75 in W x 2.91 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 1.4061 lb |
| Gross Weight per Pack Metric | 140.61 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 2.0320 in |
| Height [Metric] | 2.0320 cm |
| Item Group | 00080 |
| Length | 8.3820 in |
| Length [Metric] | 8.3820 cm |
| Material | Fiberglass Filled Thermoset |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398411&lang=en-us |
| Mounting Type | Plug-In |
| Number Of Poles | 1 |
| Operating Temperature | 50 A°C |
| Returnable | N |
| Standard | UL LISTED-CSA |
| Sub Brand | QO |
| Temperature Rating | 104 |
| Type | Miniature circuit-breaker |
| UNSPSC | 39121603 |
| UPC 11 | 78590175175 |
| UPC 12 | 785901751755 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.6200 in |
| Width [Metric] | 7.6200 cm |
| Wire Size | 14 to 8 AWG Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 10 KA 120/240 V AC 50/60 HZ- 10 KA 120 V AC 50/60 HZ- 5 KA 48 V DC,10 KA-5 KA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 V AC-120 V AC-48 V DC |
