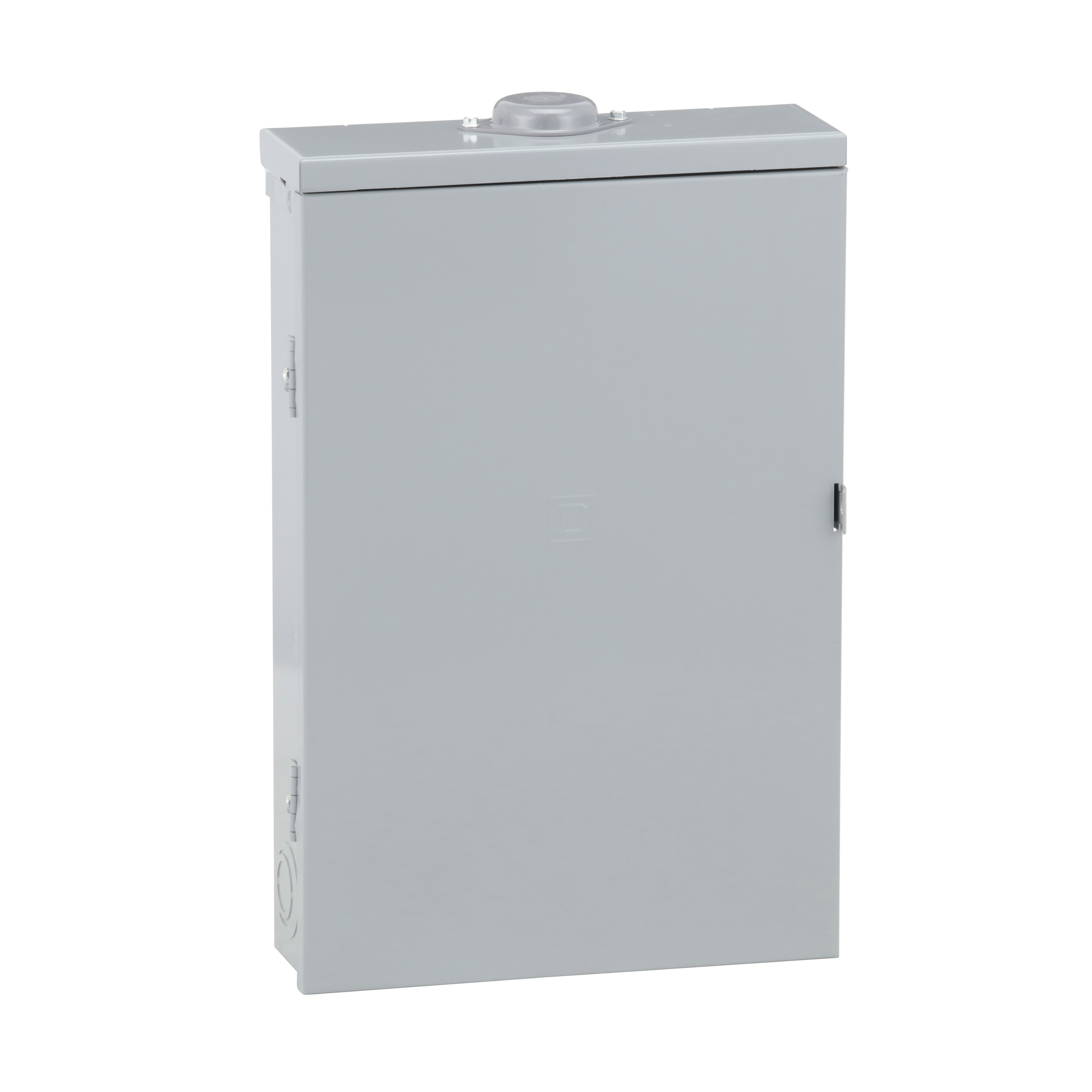

Square D™ QO11624L125GRB Convertible Load Center, 120/240 VAC, 125 A, 24 Pole, 65 kA Interrupt
Custom_Product_Images_Illustration
Square D™ QO11624L125GRB Convertible Load Center, 120/240 VAC, 125 A, 24 Pole, 65 kA Interrupt
SKU100034
MFGR #QO11624L125GRB
Your Cost: $329.53/ea
List: Square D QO11624L125GRB LOADCTR QO MLO 240V 125A 1PH 16SP NEMA3R,#6 to 2/0 AWG(Al/Cu),1 phase,120/240 V AC,120/240 V AC,65 kA,125 A,3-Wire,Convertible Mains (lugs),Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Load Center,NEMA 3R,QO,UL Listed
Square D QO11624L125GRB LOADCTR QO MLO 240V 125A 1PH 16SP NEMA3R,#6 to 2/0 AWG(Al/Cu),1 phase,120/240 V AC,120/240 V AC,65 kA,125 A,3-Wire,Convertible Mains (lugs),Designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.,Load Center,NEMA 3R,QO,UL Listed
Application DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. Breaker Mounting Panel Cable Size AWG 6...AWG 2/0 ALUMINIUM/COPPER Catalog Number QO11624L125GRB Country of Origin US Cover Type Surface Cover Currency USD Dimensions 22.06 in H x 14.75 in W x 4.52 in D Enclosure 4R,NEMA 3R OUTDOOR,BAKED ENAMEL GREY,WELDED GALVANNEALED STEEL Enclosure Box Size 4R Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Volume per Pack Metric 60.45 Gross Volume UOM CI Gross Volume UOM Metric kg Gross Weight Per Pack 24.0800 lb Gross Weight per Pack Metric 24.08 Harmonization Tariff Schedule Code 8537109150 Height 23.80 in Housing Material Steel Item Group 00002 Length 15.40 in Mounting Type Surface Number of Circuits 24 Number Of Feeders 24 Number Of Poles 24 Number Of Spaces 16 Phase 1 Returnable N Standard UL Listed Sub Brand QO Type 1-Phase Convertible Rainproof UNSPSC 39121101 UPC 11 78590186788 UPC 12 785901867883 Warranty Description cm Width 5.00 in Wire Size 6 to 2/0 AWG Wiring Configuration 3-Wire Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Interrupt Rating 65 kA Voltage Rating 120/240 VAC DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. MAIN LUGS,TIN PLATED COPPER BUSBAR Aluminum bus construction on fixed mains panels Tin plated 1-piece copper bus helps prevent corrosion and ensures superior performance Service entrance equipment capable panels Split neutral bars for neat wiring Top or bottom feed by rotating convertible mains panels 180 deg Single captive screw interior mounting on indoor panels to ease removal Straight-in wiring to help minimize service cable installation Side hinge doors on outdoor convertible main panels Baked enamel gray surface finish Multiple ground bar locations to customized the panel to your needs Backed-out screws on neutral, ground a and twin and quad breaker terminals Factory removed main breaker knockout Low profile busbars and insulated shielding improved safety and protection Flexible and convenient main and branch breaker knockouts 6 to 2/0 AWG Al/Cu Rugged design and high quality Spring loaded self-adjusting surface/flush trim reduces installation time Premium quality and design
content loaded
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Media
- Substitute Products
| Application | DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| Breaker Mounting | Panel |
| Cable Size | AWG 6...AWG 2/0 ALUMINIUM/COPPER |
| Catalog Number | QO11624L125GRB |
| Country of Origin | US |
| Cover Type | Surface Cover |
| Currency | USD |
| Dimensions | 22.06 in H x 14.75 in W x 4.52 in D |
| Enclosure | 4R,NEMA 3R OUTDOOR,BAKED ENAMEL GREY,WELDED GALVANNEALED STEEL |
| Enclosure Box Size | 4R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Volume per Pack Metric | 60.45 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | kg |
| Gross Weight Per Pack | 24.0800 lb |
| Gross Weight per Pack Metric | 24.08 |
| Harmonization Tariff Schedule Code | 8537109150 |
| Height | 23.80 in |
| Housing Material | Steel |
| Item Group | 00002 |
| Length | 15.40 in |
| Mounting Type | Surface |
| Number of Circuits | 24 |
| Number Of Feeders | 24 |
| Number Of Poles | 24 |
| Number Of Spaces | 16 |
| Phase | 1 |
| Returnable | N |
| Standard | UL Listed |
| Sub Brand | QO |
| Type | 1-Phase Convertible Rainproof |
| UNSPSC | 39121101 |
| UPC 11 | 78590186788 |
| UPC 12 | 785901867883 |
| Warranty Description | cm |
| Width | 5.00 in |
| Wire Size | 6 to 2/0 AWG |
| Wiring Configuration | 3-Wire |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Interrupt Rating | 65 kA |
| Voltage Rating | 120/240 VAC |
| DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE. |
| MAIN LUGS,TIN PLATED COPPER BUSBAR |
| Aluminum bus construction on fixed mains panels |
| Tin plated 1-piece copper bus helps prevent corrosion and ensures superior performance |
| Service entrance equipment capable panels |
| Split neutral bars for neat wiring |
| Top or bottom feed by rotating convertible mains panels 180 deg |
| Single captive screw interior mounting on indoor panels to ease removal |
| Straight-in wiring to help minimize service cable installation |
| Side hinge doors on outdoor convertible main panels |
| Baked enamel gray surface finish |
| Multiple ground bar locations to customized the panel to your needs |
| Backed-out screws on neutral, ground a and twin and quad breaker terminals |
| Factory removed main breaker knockout |
| Low profile busbars and insulated shielding improved safety and protection |
| Flexible and convenient main and branch breaker knockouts |
| 6 to 2/0 AWG Al/Cu |
| Rugged design and high quality |
| Spring loaded self-adjusting surface/flush trim reduces installation time |
| Premium quality and design |
