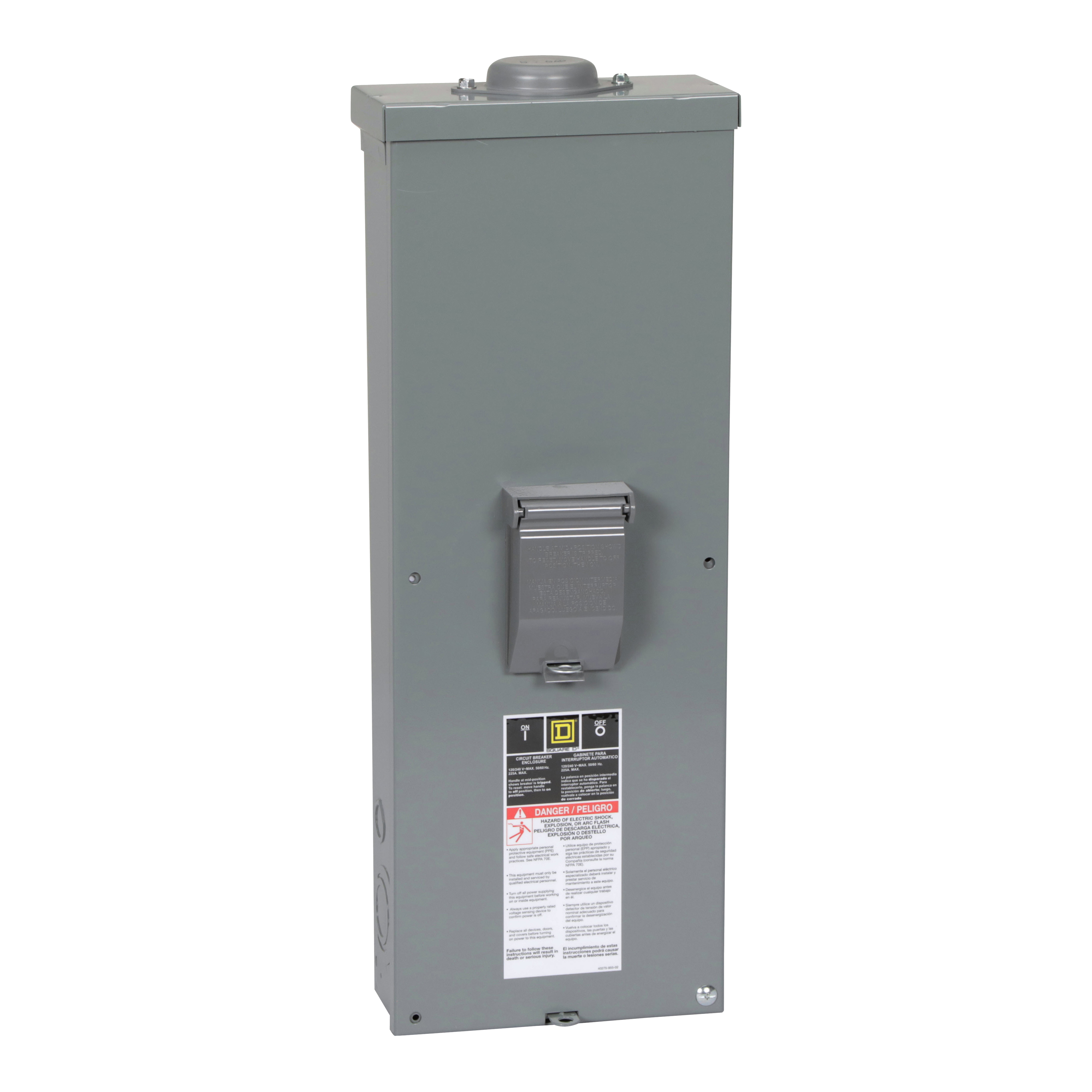

Square D™ QO™ QOM2E2200NRB Convertible Enclosed Main Circuit Breaker Load Center With Rainproof Cover, 120/240 VAC, 200 A, 2 Poles, 22 kA Interrupt
Custom_Product_Images_Illustration
Square D™ QO™ QOM2E2200NRB Convertible Enclosed Main Circuit Breaker Load Center With Rainproof Cover, 120/240 VAC, 200 A, 2 Poles, 22 kA Interrupt
SKU147367
MFGR #QOM2E2200NRB
$/ea
Square D™ QO™ Main Circuit Breaker Load Center, Convertible Enclosed, 120/240 VAC, 200 A, 2 Pole, 22 kA Interrupt, Bolt-On Breaker Mounting, 4 AWG to 300 kcmil Wire, Bolt-On Mounting, NEMA 3R Enclosure, 8.68 in W x 24.55 in H Dimensions
Square D™ QO™ Main Circuit Breaker Load Center, Convertible Enclosed, 120/240 VAC, 200 A, 2 Pole, 22 kA Interrupt, Bolt-On Breaker Mounting, 4 AWG to 300 kcmil Wire, Bolt-On Mounting, NEMA 3R Enclosure, 8.68 in W x 24.55 in H Dimensions
Alternate Catalog Number QOM2E2200NRB Application Outdoor Applications ARRA Compliant N Buy American Compliant N Catalog Number QOM2E2200NRB Connection AWG 4...300 KCMIL ALUMINIUM/COPPER,LUGS Country of Origin MX Currency USD Current Rating 200 A Depth 4.09450 in Enclosure NEMA 3R EU RoHS Indicator Y Gross Volume Per Pack 1490.17 Gross Volume per Pack Metric 24419.42 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0737 lb Gross Weight per Pack Metric 7.37 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 15.7480 CM Height [Metric] 65.2780 cm Item Group 00100 Length 64.2620 CM Length [Metric] 15.2400 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361235&lang=en-us Number Of Poles 2 Operating Temperature 40 A°C Returnable Y Standard NEMA 3R,UL LISTED Sub Brand QOM2 Trip Range 200 A Type Circuit Breaker UNSPSC 39121616 UPC 11 78590137530 UPC 12 785901375302 Warranty Description Contractual Warranty:18 months Width 24.0000 CM Width [Metric] 24.3840 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 200 A Interrupt Rating 22 kA Voltage Rating 120/240 VAC Outdoor Applications BOLT-ON Aluminum bus construction on fixed mains panel Shielded one-piece tin plated copper bus construction on convertible mains panel, an industry exclusive for protection and performance Service entrance equipment capable panel Split branch neutral for clutter-free wiring Top or bottom feed by rotating convertible mains panel 180 deg Single captive screw-interior mounting on indoor panel to ease removal Straight in wiring to help minimize service cable installation Side hinge doors on outdoor convertible main panel Gray baked enamel, electrodeposited over cleaned, phosphatized steel High amperage breaker enclosure High amperage breaker enclosure 4 AWG to 300 kcmil aluminum/copper wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOM2E2200NRB |
| Application | Outdoor Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOM2E2200NRB |
| Connection | AWG 4...300 KCMIL ALUMINIUM/COPPER,LUGS |
| Country of Origin | MX |
| Currency | USD |
| Current Rating | 200 A |
| Depth | 4.09450 in |
| Enclosure | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1490.17 |
| Gross Volume per Pack Metric | 24419.42 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0737 lb |
| Gross Weight per Pack Metric | 7.37 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 15.7480 CM |
| Height [Metric] | 65.2780 cm |
| Item Group | 00100 |
| Length | 64.2620 CM |
| Length [Metric] | 15.2400 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=361235&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | 40 A°C |
| Returnable | Y |
| Standard | NEMA 3R,UL LISTED |
| Sub Brand | QOM2 |
| Trip Range | 200 A |
| Type | Circuit Breaker |
| UNSPSC | 39121616 |
| UPC 11 | 78590137530 |
| UPC 12 | 785901375302 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 24.0000 CM |
| Width [Metric] | 24.3840 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 200 A |
| Interrupt Rating | 22 kA |
| Voltage Rating | 120/240 VAC |
| Outdoor Applications |
| BOLT-ON |
| Aluminum bus construction on fixed mains panel |
| Shielded one-piece tin plated copper bus construction on convertible mains panel, an industry exclusive for protection and performance |
| Service entrance equipment capable panel |
| Split branch neutral for clutter-free wiring |
| Top or bottom feed by rotating convertible mains panel 180 deg |
| Single captive screw-interior mounting on indoor panel to ease removal |
| Straight in wiring to help minimize service cable installation |
| Side hinge doors on outdoor convertible main panel |
| Gray baked enamel, electrodeposited over cleaned, phosphatized steel |
| High amperage breaker enclosure |
| High amperage breaker enclosure |
| 4 AWG to 300 kcmil aluminum/copper wire |
