Square D™

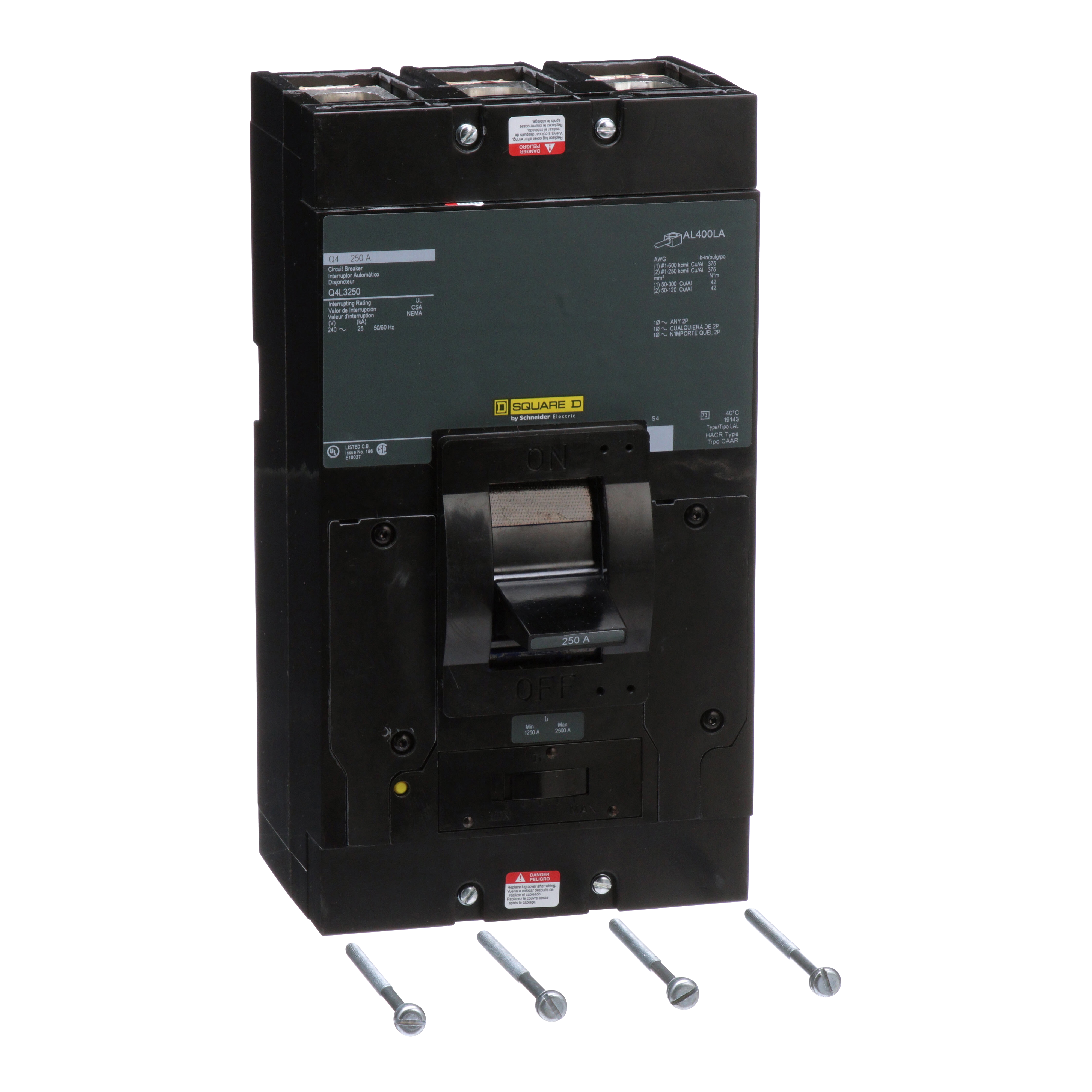

Square D™ Q4L3250 Molded Case Circuit Breaker, 240 VAC, 250 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ Q4L3250 Molded Case Circuit Breaker, 240 VAC, 250 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU208552
MFGR #Q4L3250
Your Cost: $3,322.03/ea
List: Square D Q4L3250 MOLDED CASE CIRCUIT BREAKER 240V 250A,1250...2500 A,250 A,240 V AC,240 V AC,25 kA at 240 V AC,250 A,3P,Q4-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Square D Q4L3250 MOLDED CASE CIRCUIT BREAKER 240V 250A,1250...2500 A,250 A,240 V AC,240 V AC,25 kA at 240 V AC,250 A,3P,Q4-Frame,Thermal Magnetic,UL Listed,circuit breaker,unit mount
Alternate Catalog Number Q4L3250 ARRA Compliant N Buy American Compliant N Catalog Number Q4L3250 Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE Connection Type Line/Load Lugs Country of Origin MX Currency USD Dimensions 11 in H x 6 in W x 5.84 in D EU RoHS Indicator Y Frame Q4 Frequency Rating 50/60 Hz Gross Volume Per Pack 3063.49 Gross Volume per Pack Metric 50201.39 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 16.3100 lb Gross Weight per Pack Metric 7.40 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 23.6220 in Height [Metric] 23.1000 cm Item Group 00933 Length 43.6880 in Length [Metric] 43.9000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434371&lang=en-us Mounting Type Unit Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Standard CSA-IEC-UL LISTED Temperature Rating 104 °F Trip Range 1250 to 2500 A Type Circuit Breaker UNSPSC 39121601 UPC 11 78590164925 UPC 12 785901649250 Warranty Description Contractual Warranty:18 months Width 29.4640 in Width [Metric] 29.5000 cm Wire Size 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 250 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | Q4L3250 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | Q4L3250 |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lugs |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.84 in D |
| EU RoHS Indicator | Y |
| Frame | Q4 |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3063.49 |
| Gross Volume per Pack Metric | 50201.39 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 16.3100 lb |
| Gross Weight per Pack Metric | 7.40 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 23.6220 in |
| Height [Metric] | 23.1000 cm |
| Item Group | 00933 |
| Length | 43.6880 in |
| Length [Metric] | 43.9000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434371&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Standard | CSA-IEC-UL LISTED |
| Temperature Rating | 104 °F |
| Trip Range | 1250 to 2500 A |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590164925 |
| UPC 12 | 785901649250 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.4640 in |
| Width [Metric] | 29.5000 cm |
| Wire Size | 1 AWG to 600 kcmil/1 AWG to 250 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 250 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| UNIT MOUNT |
