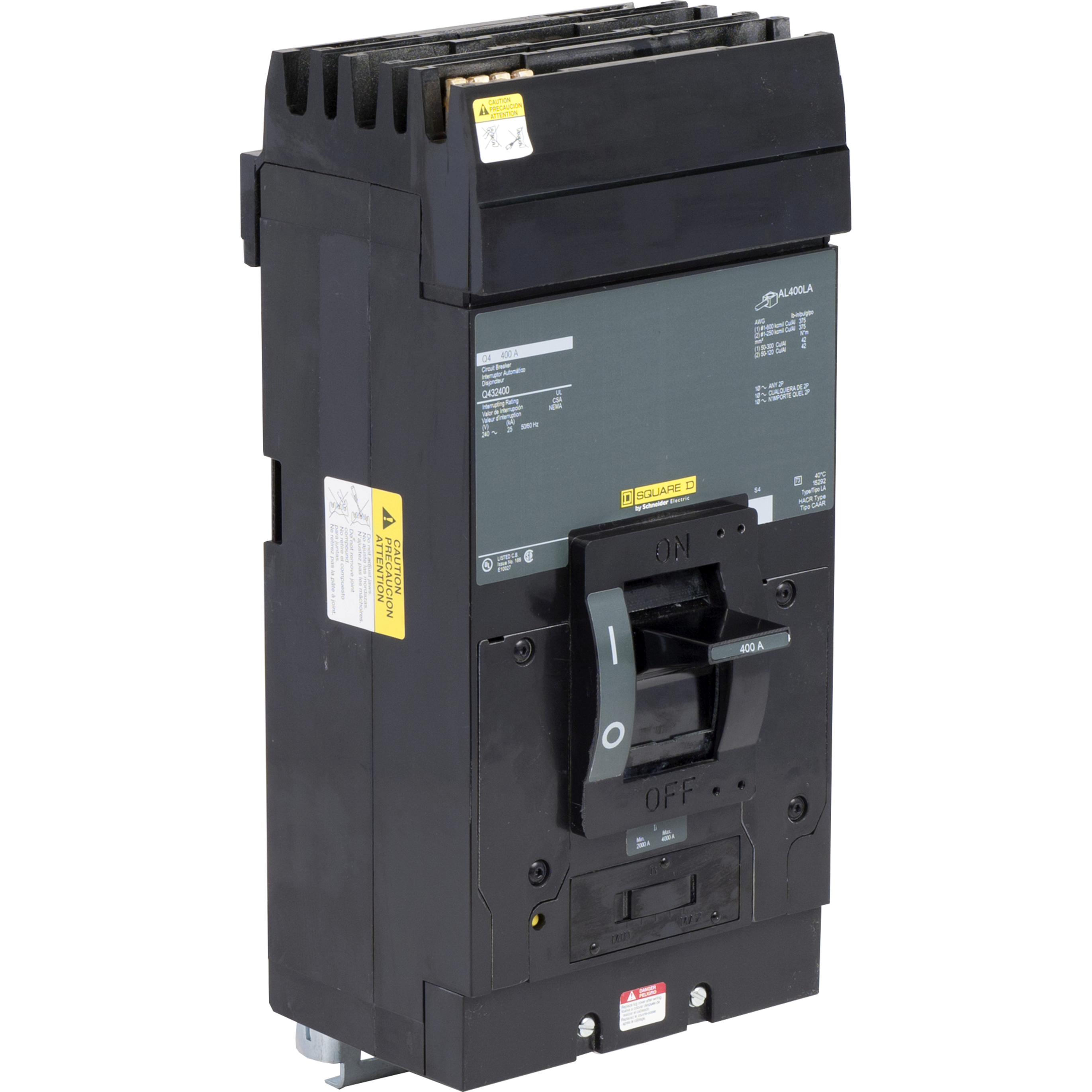

Square D™ Q4 Molded Case Circuit Breaker, 240 VAC, 400 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ Q4 Molded Case Circuit Breaker, 240 VAC, 400 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU99176
MFGR #Q432400
$/ea
Square D Q432400 MOLDED CASE CIRCUIT BREAKER 240V 400A,240 V AC,240 V AC,25 kA at 240 V AC,3P,400 A,400 A,Q4-Frame,UL Listed,circuit breaker,thermal-magnetic,unit mount
Square D Q432400 MOLDED CASE CIRCUIT BREAKER 240V 400A,240 V AC,240 V AC,25 kA at 240 V AC,3P,400 A,400 A,Q4-Frame,UL Listed,circuit breaker,thermal-magnetic,unit mount
Alternate Catalog Number Q432400 ARRA Compliant N Buy American Compliant N Catalog Number Q432400 Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-I-LINE CONNECTION LINE Connection Type I-Line™ Lug Country of Origin MX Currency USD Dimensions 11 in H x 6 in W x 5.8 in D EU RoHS Indicator Y Frame Q4 Frequency Rating 50/60 Hz Gross Volume Per Pack 1887.90 Gross Volume per Pack Metric 30937.02 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0827 lb Gross Weight per Pack Metric 8.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 23.6000 in Height [Metric] 23.6000 cm Item Group 01038 Length 43.9000 in Length [Metric] 43.9000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434291&lang=en-us Number Of Poles 3 Operating Temperature 40 °C Returnable Y Standard UL LISTED-CSA Temperature Rating 40 Trip Range 2000 A, 400 A, 4000 A Type CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590164929 UPC 12 785901649298 Warranty Description Contractual Warranty:18 months Width 29.2000 in Width [Metric] 29.2000 cm Wire Size 1 AWG to 600 kcmil, 1 AWG to 250 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC I-LINE Al/Cu wire 25 kA at 240 VAC interrupt rating Al/Cu wire
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | Q432400 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | Q432400 |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-I-LINE CONNECTION LINE |
| Connection Type | I-Line™ Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.8 in D |
| EU RoHS Indicator | Y |
| Frame | Q4 |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1887.90 |
| Gross Volume per Pack Metric | 30937.02 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0827 lb |
| Gross Weight per Pack Metric | 8.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 23.6000 in |
| Height [Metric] | 23.6000 cm |
| Item Group | 01038 |
| Length | 43.9000 in |
| Length [Metric] | 43.9000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434291&lang=en-us |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Returnable | Y |
| Standard | UL LISTED-CSA |
| Temperature Rating | 40 |
| Trip Range | 2000 A, 400 A, 4000 A |
| Type | CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590164929 |
| UPC 12 | 785901649298 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.2000 in |
| Width [Metric] | 29.2000 cm |
| Wire Size | 1 AWG to 600 kcmil, 1 AWG to 250 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| I-LINE |
| Al/Cu wire |
| 25 kA at 240 VAC interrupt rating |
| Al/Cu wire |
