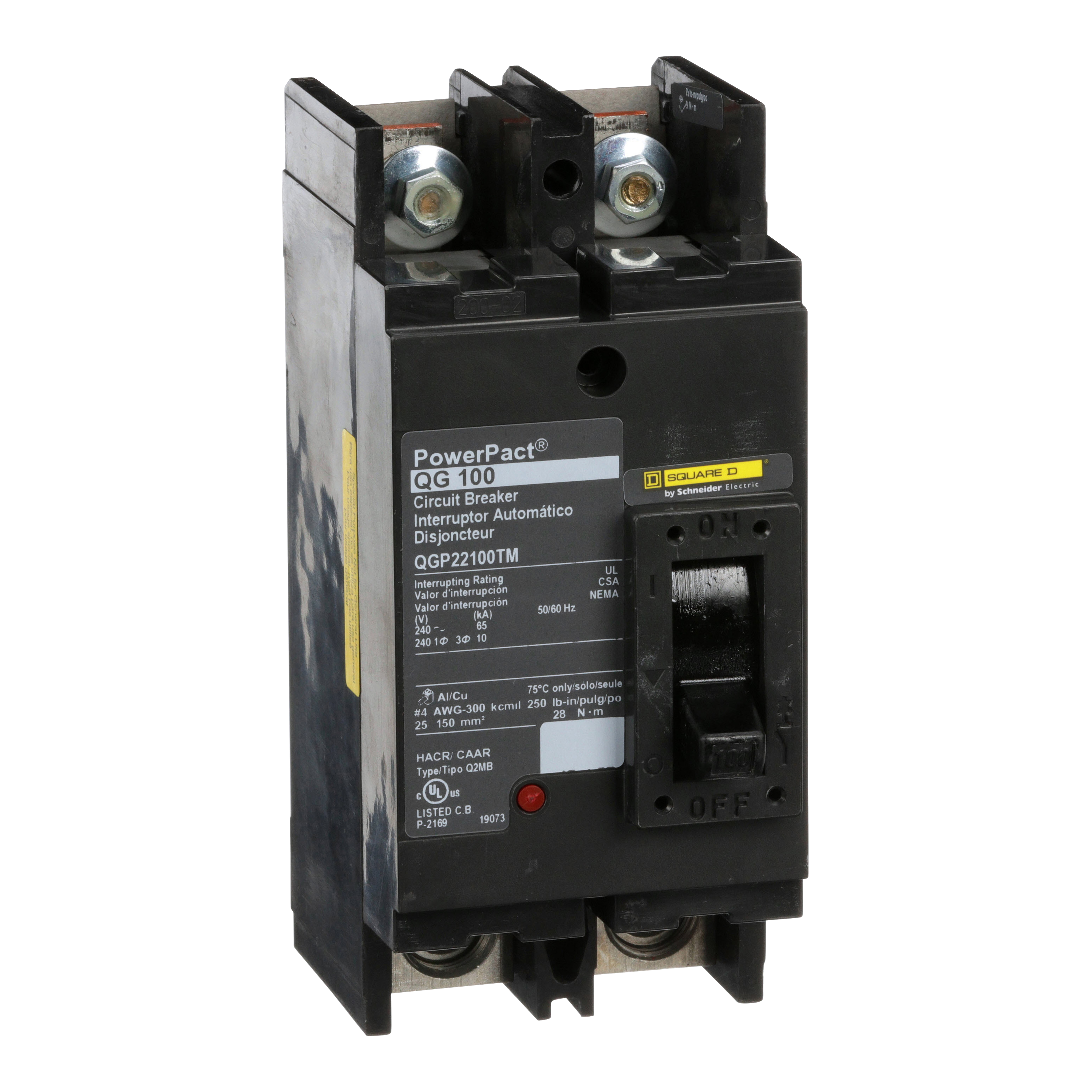

Square D™ PowerPact™Q QGP22100TM Type QG Molded Case Circuit Breaker, 240 VAC, 100 A, 65 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™Q QGP22100TM Type QG Molded Case Circuit Breaker, 240 VAC, 100 A, 65 kA Interrupt, 2 Poles
SKU289876
MFGR #QGP22100TM
$/ea
Square D QGP22100TM MOLDED CASE CIRCUIT BREAKER 240V 100A,100 A,240 V,2P,Circuit Breaker,Metering,Q-Frame,QO,Thermal Magnetic,UL Listed
Square D QGP22100TM MOLDED CASE CIRCUIT BREAKER 240V 100A,100 A,240 V,2P,Circuit Breaker,Metering,Q-Frame,QO,Thermal Magnetic,UL Listed
Actuator Type Toggle Alternate Catalog Number QGP22100TM Application METERING ARRA Compliant N Buy American Compliant N Catalog Number QGP22100TM Connection LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-TERMINAL NUT LINE Connection Type O/OFF End Lugs Country of Origin MX Currency USD Depth 3.93 in Dimensions 6.47 in H x 3 in W x 3.93 in D EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Volume Per Pack 306.68 Gross Volume per Pack Metric 5025.56 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0147 lb Gross Weight per Pack Metric 1.47 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 12.1920 in Height [Metric] 12.2000 cm Item Group 00024 Length 25.0950 in Length [Metric] 25.1000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253871&lang=en-us Mounting Type Unit Number Of Poles 2 Phase 1 pH Returnable Y Standard UL LISTED Standards ARRA CompliantBuy American Act CompliantUL 489CSA C22.2 No. 5-02IEC 60947-2PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QO Substitute Product Catalog Number QBPA Temperature Rating 104 °F Trip Range 1200 to 2400 A Type Type QG UNSPSC 39121601 UPC 11 78590154608 UPC 12 785901546085 Warranty Description Contractual Warranty:18 months Width 15.6970 in Width [Metric] 15.7000 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC METERING UNIT MOUNT Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | QGP22100TM |
| Application | METERING |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QGP22100TM |
| Connection | LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-TERMINAL NUT LINE |
| Connection Type | O/OFF End Lugs |
| Country of Origin | MX |
| Currency | USD |
| Depth | 3.93 in |
| Dimensions | 6.47 in H x 3 in W x 3.93 in D |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 306.68 |
| Gross Volume per Pack Metric | 5025.56 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0147 lb |
| Gross Weight per Pack Metric | 1.47 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 12.1920 in |
| Height [Metric] | 12.2000 cm |
| Item Group | 00024 |
| Length | 25.0950 in |
| Length [Metric] | 25.1000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253871&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantUL 489CSA C22.2 No. 5-02IEC 60947-2PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QO |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | 104 °F |
| Trip Range | 1200 to 2400 A |
| Type | Type QG |
| UNSPSC | 39121601 |
| UPC 11 | 78590154608 |
| UPC 12 | 785901546085 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.6970 in |
| Width [Metric] | 15.7000 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| METERING |
| UNIT MOUNT |
| Field installable handle padlock attachment available for locking in ON or OFF position and may be used with available mechanical interlocks |
