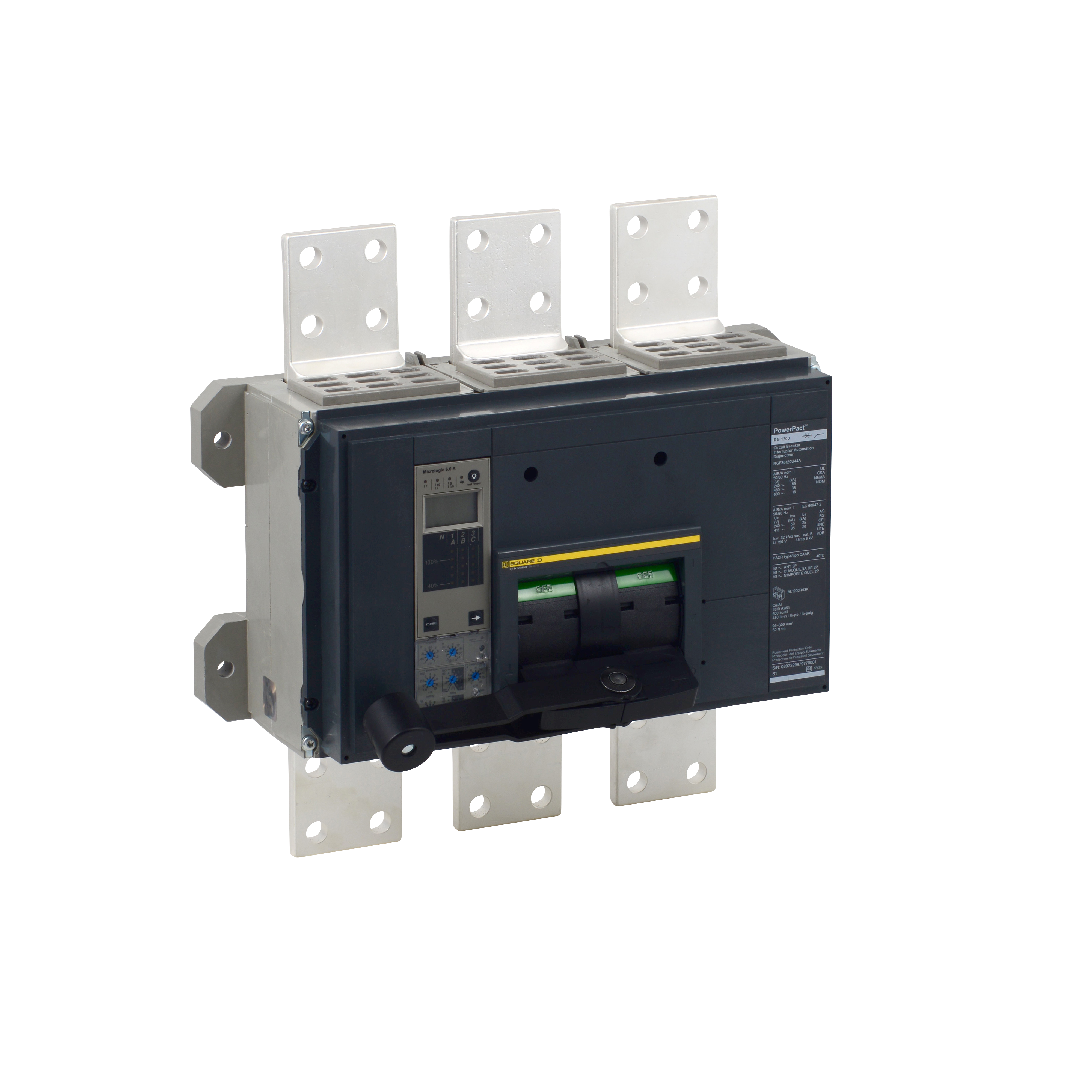

Square D™ PowerPact™ RLF36160CU44A 100% Rated Molded Case Circuit Breaker, 600 VAC, 1600 A, 125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.0 A LSIG Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ RLF36160CU44A 100% Rated Molded Case Circuit Breaker, 600 VAC, 1600 A, 125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC Interrupt, 3 Poles, Electronic Ammeter Micrologic 6.0 A LSIG Trip
SKUPDW~6415783
MFGR #RLF36160CU44A
Your Cost: $26,319.59/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, 100% Rated, 600 VAC, 1600 A, 50/60 Hz Frequency, 125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC Interrupt, R Frame, Electronic Ammeter Micrologic 6.0 A LSIG Trip, 3 Pole, 3 ph, Busbar Line/Load Connection, NEMA AB1 Enclosure, Unit Mounting, -13 to 158 deg F, 16.24 in H x 16.53 in W x 14.49 in D Dimensions
Square D™ PowerPact™ Molded Case Circuit Breaker, 100% Rated, 600 VAC, 1600 A, 50/60 Hz Frequency, 125 kA at 240 VAC, 100 kA at 480 VAC, 50 kA at 600 VAC Interrupt, R Frame, Electronic Ammeter Micrologic 6.0 A LSIG Trip, 3 Pole, 3 ph, Busbar Line/Load Connection, NEMA AB1 Enclosure, Unit Mounting, -13 to 158 deg F, 16.24 in H x 16.53 in W x 14.49 in D Dimensions
Alternate Catalog Number RLF36160CU44A Application For providing overload and short circuit protection ARRA Compliant N Buy American Compliant N Catalog Number RLF36160CU44A Connection Busbar connection, line;busbar connection, load; AWG 3/0...750 kcmil aluminium/copper Country of Origin UKN Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.2359 lb Gross Weight per Pack Metric 23.59 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 33.0000 in Height [Metric] 33.0000 cm Item Group 01245 Length 50.0000 in Length [Metric] 50.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=438051&lang=en-us Number Of Poles 3 Returnable Y Type Circuit Breaker UNSPSC 39121601 UPC 11 78590123403 UPC 12 785901234036 Warranty Description Contractual Warranty:18 months Width 50.0000 in Width [Metric] 50.0000 cm Brand Square D™ Manufacturer Schneider Electric Trip Type ELECTRONIC, AMMETER, MICROLOGIC 6.0 A, LSIG For providing overload and short circuit protection True RMS sensing devices Provide means to manually disconnect power to the circuit Provide enhanced coordination by their adjustability Provide high interrupting ratings and withstand ratings
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | RLF36160CU44A |
| Application | For providing overload and short circuit protection |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | RLF36160CU44A |
| Connection | Busbar connection, line;busbar connection, load; AWG 3/0...750 kcmil aluminium/copper |
| Country of Origin | UKN |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.2359 lb |
| Gross Weight per Pack Metric | 23.59 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 33.0000 in |
| Height [Metric] | 33.0000 cm |
| Item Group | 01245 |
| Length | 50.0000 in |
| Length [Metric] | 50.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=438051&lang=en-us |
| Number Of Poles | 3 |
| Returnable | Y |
| Type | Circuit Breaker |
| UNSPSC | 39121601 |
| UPC 11 | 78590123403 |
| UPC 12 | 785901234036 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 50.0000 in |
| Width [Metric] | 50.0000 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Trip Type | ELECTRONIC, AMMETER, MICROLOGIC 6.0 A, LSIG |
| For providing overload and short circuit protection |
| True RMS sensing devices |
| Provide means to manually disconnect power to the circuit |
| Provide enhanced coordination by their adjustability |
| Provide high interrupting ratings and withstand ratings |
