Square D™

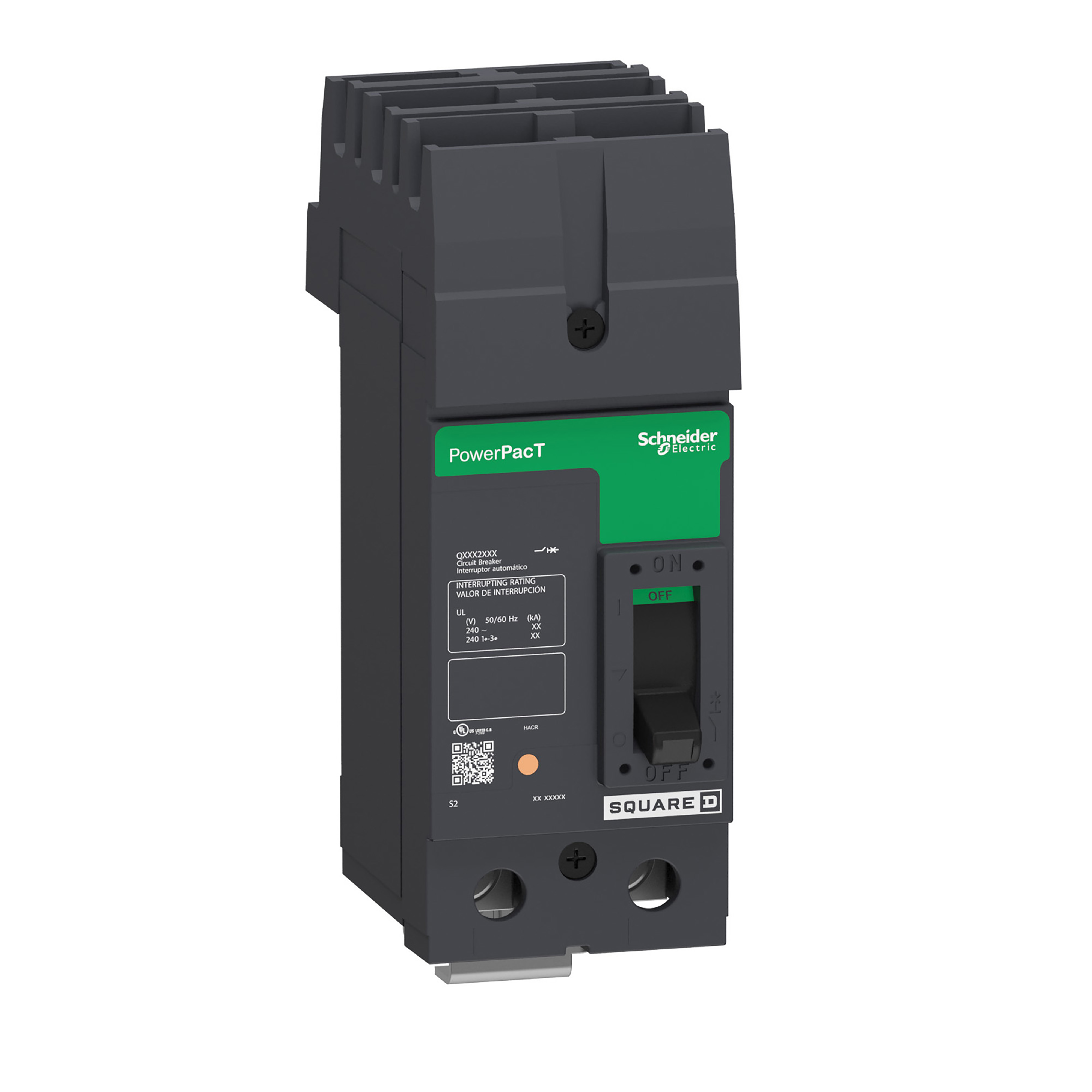

Square D™ PowerPact™ QDA Molded Case Circuit Breaker, 240 VAC, 125 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ QDA Molded Case Circuit Breaker, 240 VAC, 125 A, 25 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU393129
MFGR #QDA221252
Your Cost: $766.09/ea
List: Square D QDA221252 MOLDED CASE CIRCUIT BREAKER 240V 125A,1200 A,125 A,2400 A,125 A,2-Pole,240 V AC,240 V AC,25 kA 240 V AC,D,I-Line Connection (ON end) - Lugs (OFF end) AC,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Square D QDA221252 MOLDED CASE CIRCUIT BREAKER 240V 125A,1200 A,125 A,2400 A,125 A,2-Pole,240 V AC,240 V AC,25 kA 240 V AC,D,I-Line Connection (ON end) - Lugs (OFF end) AC,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,plug-in
Actuator Type Toggle Alternate Catalog Number QDA221252 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number QDA221252 Connection LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-I-LINE CONNECTION LINE AC Connection Type I-Line™/Load Lug Country of Origin MX Currency USD Dimensions 6.47 in H x 3 in W x 3.93 in D EU RoHS Indicator Y Frame D Frequency Rating 50/60 Hz Gross Volume Per Pack 427.50 Gross Volume per Pack Metric 7005.44 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 4.7600 lb Gross Weight per Pack Metric 2.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 11.7000 in Height [Metric] 11.7000 cm Item Group 01023 Length 31.5000 in Length [Metric] 31.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435251&lang=en-us Number Of Poles 2 Returnable Y Series QDA Standard CSA-UL LISTED-IEC Sub Brand POWERPACT Substitute Product Catalog Number QBPA Temperature Rating 104 °F Trip Range 1200 A, 125 A, 2400 A Type Type QD UNSPSC 39121601 UPC 11 78590142122 UPC 12 785901421221 Warranty Description Contractual Warranty:18 months Width 19.3000 in Width [Metric] 19.3000 cm Wire Size 4 AWG to 300 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 125 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE AC-phase connection 25 kA at 240 VAC interrupt rating Al/Cu wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | QDA221252 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QDA221252 |
| Connection | LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-I-LINE CONNECTION LINE AC |
| Connection Type | I-Line™/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.47 in H x 3 in W x 3.93 in D |
| EU RoHS Indicator | Y |
| Frame | D |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 427.50 |
| Gross Volume per Pack Metric | 7005.44 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 4.7600 lb |
| Gross Weight per Pack Metric | 2.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 11.7000 in |
| Height [Metric] | 11.7000 cm |
| Item Group | 01023 |
| Length | 31.5000 in |
| Length [Metric] | 31.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=435251&lang=en-us |
| Number Of Poles | 2 |
| Returnable | Y |
| Series | QDA |
| Standard | CSA-UL LISTED-IEC |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | 104 °F |
| Trip Range | 1200 A, 125 A, 2400 A |
| Type | Type QD |
| UNSPSC | 39121601 |
| UPC 11 | 78590142122 |
| UPC 12 | 785901421221 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 19.3000 in |
| Width [Metric] | 19.3000 cm |
| Wire Size | 4 AWG to 300 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 125 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE |
| AC-phase connection |
| 25 kA at 240 VAC interrupt rating |
| Al/Cu wire |
