Square D™

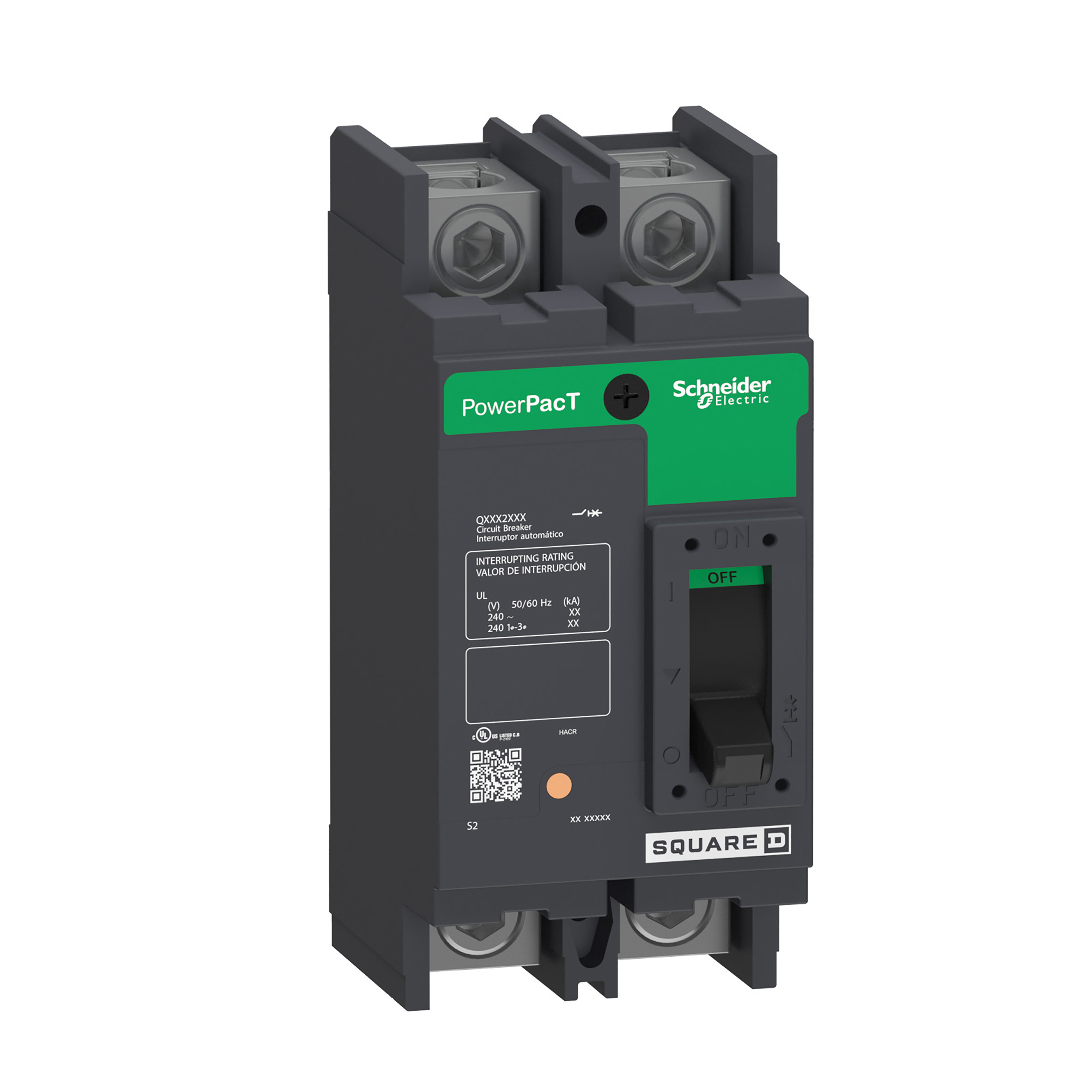

Square D™ PowerPact™ QBL22110 Type QB Molded Case Circuit Breaker, 240 VAC, 110 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™
Square D™ PowerPact™ QBL22110 Type QB Molded Case Circuit Breaker, 240 VAC, 110 A, 10 kA Interrupt, 2 Poles
SKU162162
MFGR #QBL22110
Your Cost: $477.79/ea
List: Square D QBL22110 MOLDED CASE CIRCUIT BREAKER 240V 110A,10 kA 240 V AC,240 V AC,110 A,110 A,1200 A,2400 A,2-Pole,240 V AC,B,Line Lug - Load Lug,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,unit mount
Square D QBL22110 MOLDED CASE CIRCUIT BREAKER 240V 110A,10 kA 240 V AC,240 V AC,110 A,110 A,1200 A,2400 A,2-Pole,240 V AC,B,Line Lug - Load Lug,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,circuit breaker,unit mount
Actuator Type Toggle Alternate Catalog Number QBL22110 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number QBL22110 Connection LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-LUGS LINE AWG 4...300 KCMIL ALUMINIUM/COPPER Connection Type Line/Load Lugs Country of Origin US Currency USD Dimensions 6.47 in H x 3 in W x 3.93 in D Enclosure Type NEMA AB1-1999 EU RoHS Indicator Y Frame Q Series Frequency Rating 50/60 Hz Gross Weight Per Pack 3.4000 lb Gross Weight per Pack Metric 1.54 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 15.4940 in Height [Metric] 15.4940 cm Item Group 00005 Length 24.8920 in Length [Metric] 24.8920 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434917&lang=en-us Mounting Type Unit Number Of Poles 2 Phase 1 pH Returnable Y Standard CSA-IEC-UL LISTED Sub Brand POWERPACT Substitute Product Catalog Number QBPA Temperature Rating 104 °F Trip Range 1200 to 2400 A Type Type QB UNSPSC 39121601 UPC 11 78590170297 UPC 12 785901702979 Warranty Description Contractual Warranty:18 months Width 15.4940 in Width [Metric] 15.4940 cm Wire Size 4 AWG to 300 kcmil Al/Cu Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 110 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION UNIT MOUNT
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | QBL22110 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QBL22110 |
| Connection | LUGS LOAD AWG 4...300 KCMIL ALUMINIUM/COPPER-LUGS LINE AWG 4...300 KCMIL ALUMINIUM/COPPER |
| Connection Type | Line/Load Lugs |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 6.47 in H x 3 in W x 3.93 in D |
| Enclosure Type | NEMA AB1-1999 |
| EU RoHS Indicator | Y |
| Frame | Q Series |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 3.4000 lb |
| Gross Weight per Pack Metric | 1.54 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 15.4940 in |
| Height [Metric] | 15.4940 cm |
| Item Group | 00005 |
| Length | 24.8920 in |
| Length [Metric] | 24.8920 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434917&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | CSA-IEC-UL LISTED |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | 104 °F |
| Trip Range | 1200 to 2400 A |
| Type | Type QB |
| UNSPSC | 39121601 |
| UPC 11 | 78590170297 |
| UPC 12 | 785901702979 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.4940 in |
| Width [Metric] | 15.4940 cm |
| Wire Size | 4 AWG to 300 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 110 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| UNIT MOUNT |
