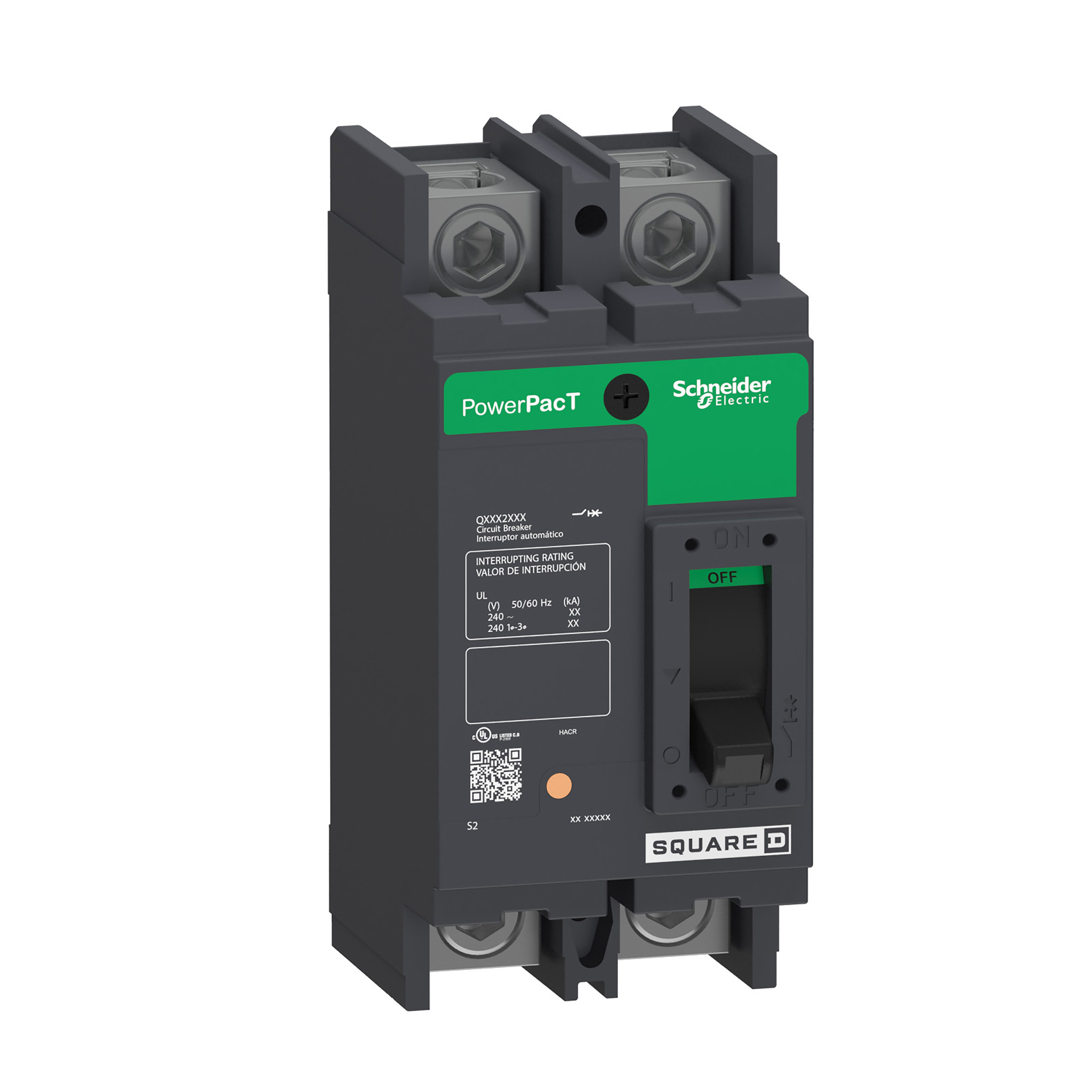

Square D™ PowerPact™ QBL22100 Type QBL Molded Case Circuit Breaker, 240 VAC, 100 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ PowerPact™ QBL22100 Type QBL Molded Case Circuit Breaker, 240 VAC, 100 A, 10 kA Interrupt, 2 Poles
SKU138250
MFGR #QBL22100
$/ea
Square D QBL22100 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 240V 100A,-13F and 158F (-25 C and +70 C),100A,10kA240Vac,2,240 Vac,50/60Hz,Hold 1200A - Trip 2400A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,Q-Frame,UL Listed - CSA Certified - IEC Rated,Unit Mount
Square D QBL22100 by Schneider Electric MOLDED CASE CIRCUIT BREAKER 240V 100A,-13F and 158F (-25 C and +70 C),100A,10kA240Vac,2,240 Vac,50/60Hz,Hold 1200A - Trip 2400A,Line Lug - Load Lug,Molded Case Circuit Breaker,PowerPact,Provides overload and short circuit protection,Q-Frame,UL Listed - CSA Certified - IEC Rated,Unit Mount
Alternate Catalog Number QBL22100 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number QBL22100 Connection LINE: LUG - LOAD: LUG Connection Type Line/Load Lug Country of Origin MX Currency USD Depth 3.93 in Dimensions 6.47 in H x 4.5 in W x 3.93 in D EU RoHS Indicator Y Frame Q Frequency Rating 50/60 Hz Gross Volume Per Pack 297.72 Gross Volume per Pack Metric 4878.80 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0154 lb Gross Weight per Pack Metric 1.53 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 12.1920 in Height [Metric] 11.7000 cm Item Group 00005 Length 24.8920 in Length [Metric] 24.9000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434905&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature -13 to 158F (-25 to 70C) Phase 1 pH Returnable Y Standard UL LISTED - CSA CERTIFIED - IEC RATED Sub Brand POWERPACT Substitute Product Catalog Number QBPA Temperature Rating -13 to 158 °F Trip Range 1200 to 2400 A Type Type QBL UNSPSC 39121601 UPC 11 78590170293 UPC 12 785901702931 Warranty Description Contractual Warranty:18 months Width 15.4940 in Width [Metric] 16.3000 cm Wire Size 4 AWG to 300 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 100 A Interrupt Rating 10 kA Trip Type Long Time/Instantaneous Voltage Rating 240 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION UNIT MOUNT For use with panelboards and switchboards 2400A fixed Ttrip (1200A hold) Standard interrupting capacity, feed-thru, complete with non-interchangeable trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QBL22100 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QBL22100 |
| Connection | LINE: LUG - LOAD: LUG |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 3.93 in |
| Dimensions | 6.47 in H x 4.5 in W x 3.93 in D |
| EU RoHS Indicator | Y |
| Frame | Q |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 297.72 |
| Gross Volume per Pack Metric | 4878.80 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0154 lb |
| Gross Weight per Pack Metric | 1.53 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 12.1920 in |
| Height [Metric] | 11.7000 cm |
| Item Group | 00005 |
| Length | 24.8920 in |
| Length [Metric] | 24.9000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434905&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | -13 to 158F (-25 to 70C) |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | QBPA |
| Temperature Rating | -13 to 158 °F |
| Trip Range | 1200 to 2400 A |
| Type | Type QBL |
| UNSPSC | 39121601 |
| UPC 11 | 78590170293 |
| UPC 12 | 785901702931 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.4940 in |
| Width [Metric] | 16.3000 cm |
| Wire Size | 4 AWG to 300 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 100 A |
| Interrupt Rating | 10 kA |
| Trip Type | Long Time/Instantaneous |
| Voltage Rating | 240 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| UNIT MOUNT |
| For use with panelboards and switchboards |
| 2400A fixed Ttrip (1200A hold) |
| Standard interrupting capacity, feed-thru, complete with non-interchangeable trip |
