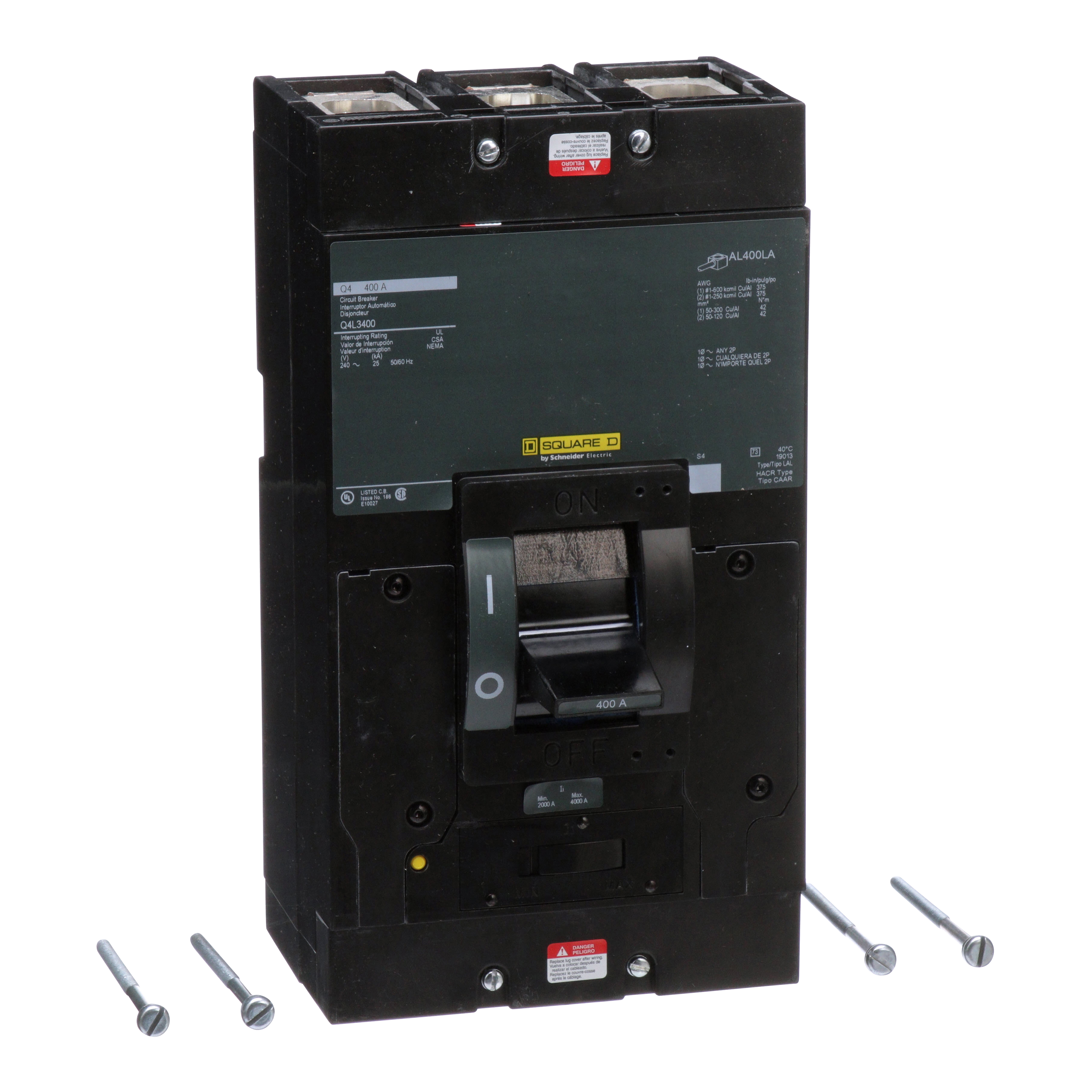

Square D™ PowerPact™ Q4 Molded Case Circuit Breaker, 240 VAC, 400 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ Q4 Molded Case Circuit Breaker, 240 VAC, 400 A, 25 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU34159
MFGR #Q4L3400
$/ea
Square D Q4L3400 MOLDED CASE CIRCUIT BREAKER 240V 400A,240 V AC,400 A,50/60 Hz,Molded Case Circuit Breaker,Q4-frame,Thermal Magnetic,UL, CSA
Square D Q4L3400 MOLDED CASE CIRCUIT BREAKER 240V 400A,240 V AC,400 A,50/60 Hz,Molded Case Circuit Breaker,Q4-frame,Thermal Magnetic,UL, CSA
Alternate Catalog Number Q4L3400 ARRA Compliant N Buy American Compliant N Catalog Number Q4L3400 Connection AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE Connection Type Line/Load Lug Country of Origin IE Currency USD Dimensions 11 in H x 6 in W x 5.8 in D EU RoHS Indicator Y Frame Q4 Frequency Rating 50/60 Hz Gross Volume Per Pack 1871.62 Gross Volume per Pack Metric 30670.32 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0743 lb Gross Weight per Pack Metric 7.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 22.6000 in Height [Metric] 22.6000 cm Item Group 00933 Length 44.2000 in Length [Metric] 44.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434427&lang=en-us Mounting Type Unit Number Of Poles 3 Operating Temperature 40 °C Returnable Y Standard UL, CSA Temperature Rating 40 Trip Range 2000 A, 400 A, 4000 A Type MOLDED CASE CIRCUIT BREAKER UNSPSC 39121601 UPC 11 78590164928 UPC 12 785901649281 Warranty Description Contractual Warranty:18 months Width 29.0000 in Width [Metric] 29.0000 cm Wire Size 1 AWG to 600 kcmil, 1 AWG to 250 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 400 A Interrupt Rating 25 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC UNIT MOUNT Al/Cu wire Unit mounting Al/Cu wire
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | Q4L3400 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | Q4L3400 |
| Connection | AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-LUGS LINE |
| Connection Type | Line/Load Lug |
| Country of Origin | IE |
| Currency | USD |
| Dimensions | 11 in H x 6 in W x 5.8 in D |
| EU RoHS Indicator | Y |
| Frame | Q4 |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1871.62 |
| Gross Volume per Pack Metric | 30670.32 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0743 lb |
| Gross Weight per Pack Metric | 7.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 22.6000 in |
| Height [Metric] | 22.6000 cm |
| Item Group | 00933 |
| Length | 44.2000 in |
| Length [Metric] | 44.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434427&lang=en-us |
| Mounting Type | Unit |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Returnable | Y |
| Standard | UL, CSA |
| Temperature Rating | 40 |
| Trip Range | 2000 A, 400 A, 4000 A |
| Type | MOLDED CASE CIRCUIT BREAKER |
| UNSPSC | 39121601 |
| UPC 11 | 78590164928 |
| UPC 12 | 785901649281 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 29.0000 in |
| Width [Metric] | 29.0000 cm |
| Wire Size | 1 AWG to 600 kcmil, 1 AWG to 250 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 400 A |
| Interrupt Rating | 25 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| UNIT MOUNT |
| Al/Cu wire |
| Unit mounting |
| Al/Cu wire |
