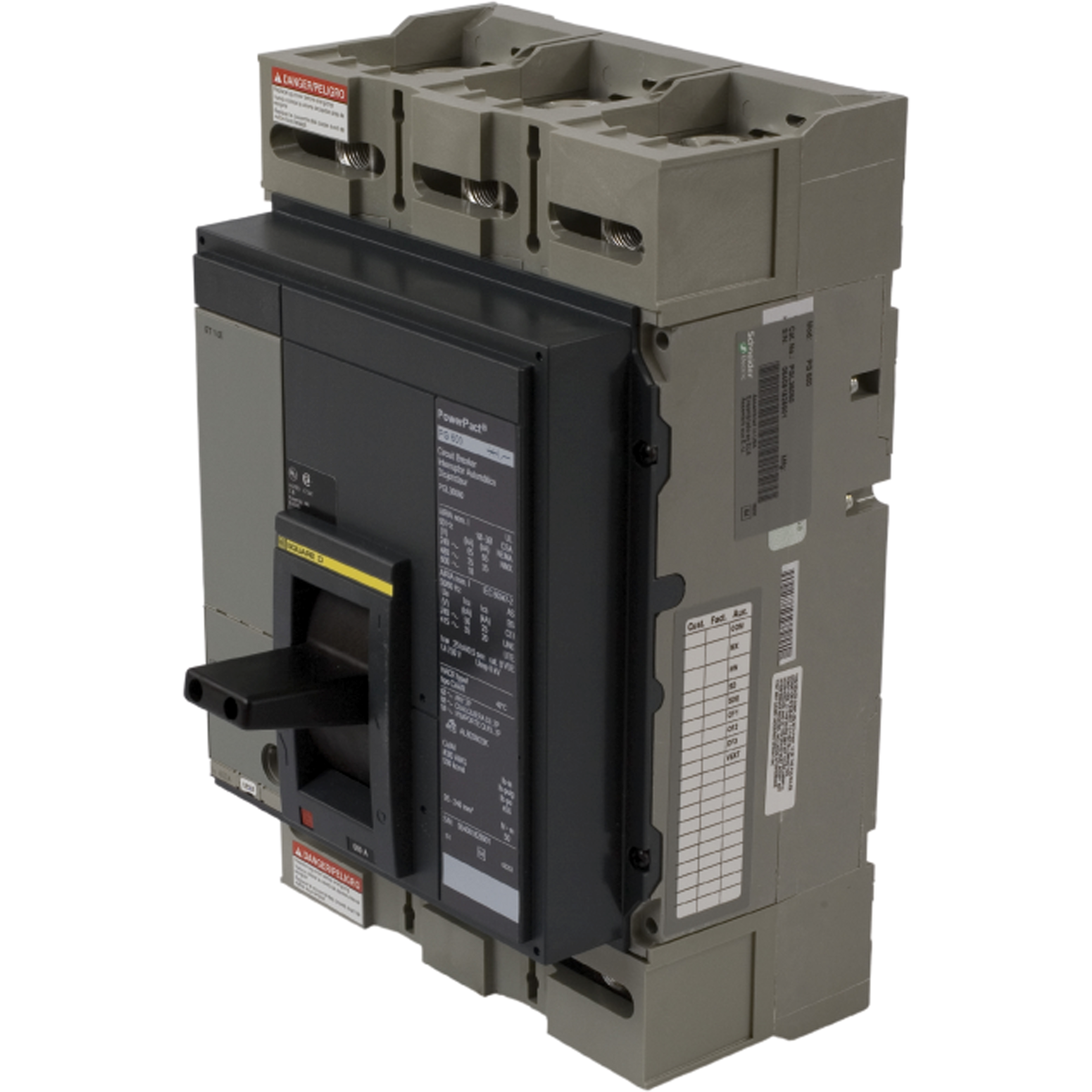

Square D™ PowerPact™ PJL36080 Type PJL Molded Case Circuit Breaker, 600 VAC, 800 A, 3 Poles
Molded Case Circuit Breakers
649513
MFG #: PJL36080
Square D™
12854.63000
/ ea
Square D PJL36080 MOLDED CASE CIRCUIT BREAKER 600V 800A,100-1200A,100kA240Vac - 65kA480Vac - 25kA600Vac,16.20 in.,3-Phase,3P,40deg Celsius,50/60Hz,600 Vac,8.10 in.,8.30 in.,800A,Ambient environment,Basic (ET1.0I) Fixed Long-Time Adjustable Instantaneous Trip,Electronic,Electronic Trip Circuit Breaker,Lugs (ON and OFF ends),P-Frame,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,Unit Mount,Various
- Brochure URL - 11003_35R1PTDFMVK20N68.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_86e26fd7091d91eac4712e605cbef2835e4eb44b75b1f59c013fd6082b480e4e.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Compliance Cert 2 URL - Square_D_PGA36080_Compliance_Certificate_2.pdf(Compliance Cert 2 URL)
- User Manual URL - files?p_enDocType=User+guide&p_File_Name=48049-148-05.pdf(User Manual URL)
- Spec Sheet URL - 11003_Q1CBDU8MJ7LVS4I5.pdf(Spec Sheet URL)
- Service Manual URL - 11003_0MVS43HU5R1IP2LW.pdf(Service Manual URL)
- Tech Bulletin URL - 11003_VEU5NXPTYBM814LQ.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_CMDIE09LV2BTG4FS.zip(Tech Drawing URL)
- Applications
- Features
| Distribution |
| UNIT MOUNT |
| Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPact™ and P-frame circuit breakers |
| Common accessories across the range of PowerPact™ molded case circuit breakers allow users to make late specification changes |
| A wide range of field installable accessories allows customers to reduce inventory without sacrificing flexibility |
| Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications |
