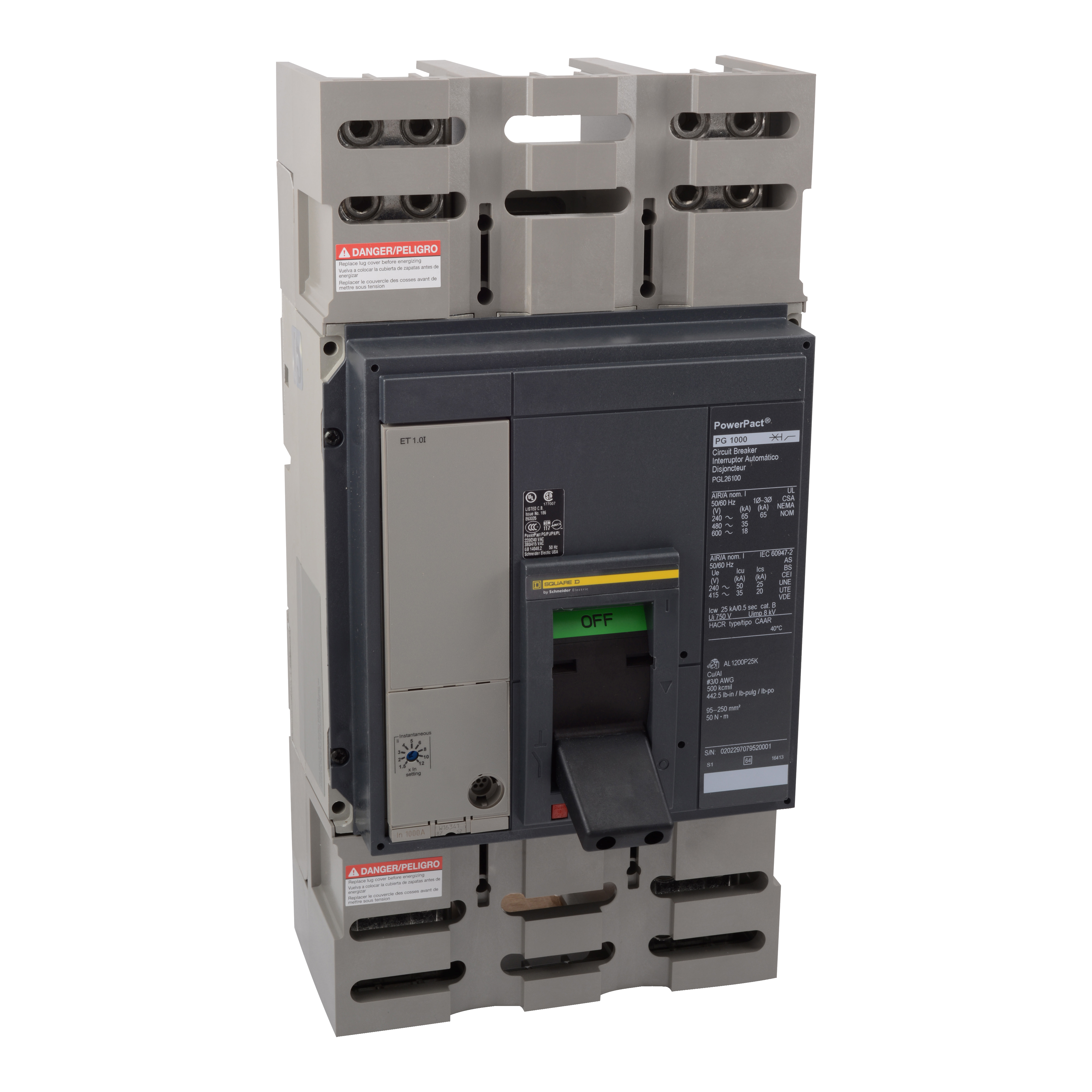

Square D™ PowerPact™ PJF36060U31A Molded Case Circuit Breaker, 600 VAC, 600 A, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, 3 Poles, Electronic Standard Micrologic™ 3.0 LI Trip
Molded Case Circuit Breakers
PDW~9356183
MFG #: PJF36060U31A
Square D™
0.00000
/ ea
Square D™ PowerPact™ Molded Case Circuit Breaker, 600 VAC, 600 A, 50/60 Hz, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC Interrupt, P Frame, Electronic Standard Micrologic™ 3.0 LI Trip, 600 A Trip, 3 Pole, 3, Line/Load Busbar, NEMA AB1, DIN Rail Mount, -13 to 158 deg F, 12.86 in H x 8.27 in W x 8.05 in D
- Brochure URL - 11003_L0S91UTP6K43QWE5.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_0MVS43HU5R1IP2LW.pdf(Service Manual URL)
- Service Manual URL - 11003_AI0NP893OWFECLR7.pdf(Service Manual URL)
- Spec Sheet URL - 11003_V6095URLFDGKOJ1Q.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8JZKILR3X9DT5N1U.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_VEU5NXPTYBM814LQ.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_9M4765GT3A2OU8NH.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_I01ONADG5WYMLBQR.zip(Tech Drawing URL)
- User Manual URL - 11003_90UEQNIZMHD3O7L6.pdf(User Manual URL)
- User Manual URL - files?p_enDocType=User+guide&p_File_Name=48049-148-05.pdf(User Manual URL)
- Features
| Provide overload and short circuit protection |
| Are true RMS sensing devices |
| Provide means to manually disconnect power to the circuit |
| Provide enhanced coordination by their adjustabilit |
| Provide high interrupting ratings and withstand ratings |
| Provide integral equipment ground fault protection or alarm |
| Provide communications |
| Provide power monitoring |
| Provide protective relaying functions |
| Without lug |
| Without lug |
