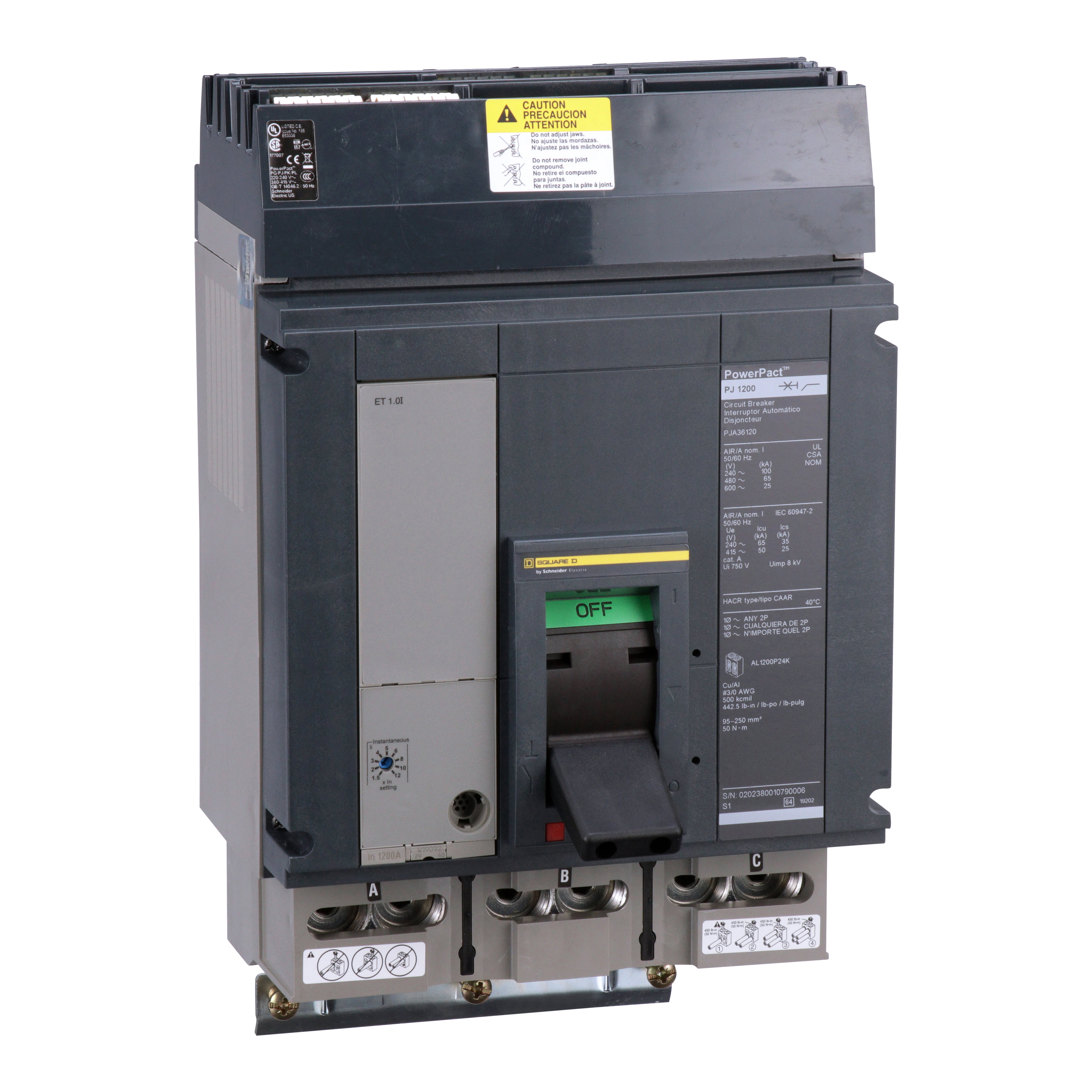

Square D™ PowerPact™ PJA Molded Case Circuit Breaker, 600 VAC, 1200 A, 25 kA Interrupt, 3 Poles, Electronic Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ PJA Molded Case Circuit Breaker, 600 VAC, 1200 A, 25 kA Interrupt, 3 Poles, Electronic Trip
SKU213171
MFGR #PJA36120
Your Cost: $18,389.50/ea
List: Square D PJA36120 MOLDED CASE CIRCUIT BREAKER 600V 1200A,100-1200A,100kA240Vac - 65kA480Vac - 25kA600Vac,1200A,16.20 in.,3-Phase,3P,40deg Celsius,50/60Hz,600 Vac,8.10 in.,8.30 in.,Ambient environment,Basic (ET1.0I),Electronic,Electronic Trip Circuit Breaker,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,P-Frame,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,Various
Square D PJA36120 MOLDED CASE CIRCUIT BREAKER 600V 1200A,100-1200A,100kA240Vac - 65kA480Vac - 25kA600Vac,1200A,16.20 in.,3-Phase,3P,40deg Celsius,50/60Hz,600 Vac,8.10 in.,8.30 in.,Ambient environment,Basic (ET1.0I),Electronic,Electronic Trip Circuit Breaker,I-Line Connection (ON end) - Lugs (OFF end) ABC,I-Line Plug-On,P-Frame,Powerpact,Provides overload and short circuit protection,UL Listed - CSA Certified - IEC Rated,Various
Actuator ELECTRONIC Actuator Type Electrical Alternate Catalog Number PJA36120 Application PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION ARRA Compliant N Buy American Compliant N Catalog Number PJA36120 Connection I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC Connection Type I-Line™ Lug Country of Origin IT Currency USD Dimensions 14.85 in H x 8.96 in W x 8.07 in D Environmental Conditions AMBIENT ENVIRONMENT EU RoHS Indicator Y Frame P Frequency Rating 50/60 Hz Gross Volume Per Pack 3146.00 Gross Volume per Pack Metric 51553.50 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 37.5400 lb Gross Weight per Pack Metric 17.03 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 31.7500 in Height [Metric] 31.7500 cm Item Group 01210 Length 52.8320 in Length [Metric] 52.8320 cm Material Various Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432309&lang=en-us Mounting Type Plug-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Series PJA Standard UL LISTED - CSA CERTIFIED - IEC RATED Standards UL Listed, IEC, CSA Certified, RoHS Compliant Sub Brand POWERPACT Substitute Product Catalog Number AL800P6K Temperature Rating 40 °C Trip Range 100 to 1200 A Type ELECTRONIC TRIP CIRCUIT BREAKER UNSPSC 39131702 UPC 11 78590128225 UPC 12 785901282259 Warranty Description Contractual Warranty:18 months Width 30.7340 in Width [Metric] 30.7340 cm Wire Size 3/0 AWG to 500 kcmil Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 1200 A Interrupt Rating 25 kA Trip Type electronic Voltage Rating 600 VAC PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION I-LINE PLUG-ON Electronic basic ET 1.0I 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC interrupt rating Al/Cu wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | ELECTRONIC |
| Actuator Type | Electrical |
| Alternate Catalog Number | PJA36120 |
| Application | PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PJA36120 |
| Connection | I-LINE CONNECTION (ON END) - LUGS (OFF END) ABC |
| Connection Type | I-Line™ Lug |
| Country of Origin | IT |
| Currency | USD |
| Dimensions | 14.85 in H x 8.96 in W x 8.07 in D |
| Environmental Conditions | AMBIENT ENVIRONMENT |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 3146.00 |
| Gross Volume per Pack Metric | 51553.50 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 37.5400 lb |
| Gross Weight per Pack Metric | 17.03 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 31.7500 in |
| Height [Metric] | 31.7500 cm |
| Item Group | 01210 |
| Length | 52.8320 in |
| Length [Metric] | 52.8320 cm |
| Material | Various |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432309&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | PJA |
| Standard | UL LISTED - CSA CERTIFIED - IEC RATED |
| Standards | UL Listed, IEC, CSA Certified, RoHS Compliant |
| Sub Brand | POWERPACT |
| Substitute Product Catalog Number | AL800P6K |
| Temperature Rating | 40 °C |
| Trip Range | 100 to 1200 A |
| Type | ELECTRONIC TRIP CIRCUIT BREAKER |
| UNSPSC | 39131702 |
| UPC 11 | 78590128225 |
| UPC 12 | 785901282259 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 30.7340 in |
| Width [Metric] | 30.7340 cm |
| Wire Size | 3/0 AWG to 500 kcmil |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 1200 A |
| Interrupt Rating | 25 kA |
| Trip Type | electronic |
| Voltage Rating | 600 VAC |
| PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION |
| I-LINE PLUG-ON |
| Electronic basic ET 1.0I |
| 65 kA at 480 VAC, 25 kA at 600 VAC, 100 kA at 240 VAC interrupt rating |
| Al/Cu wire |
