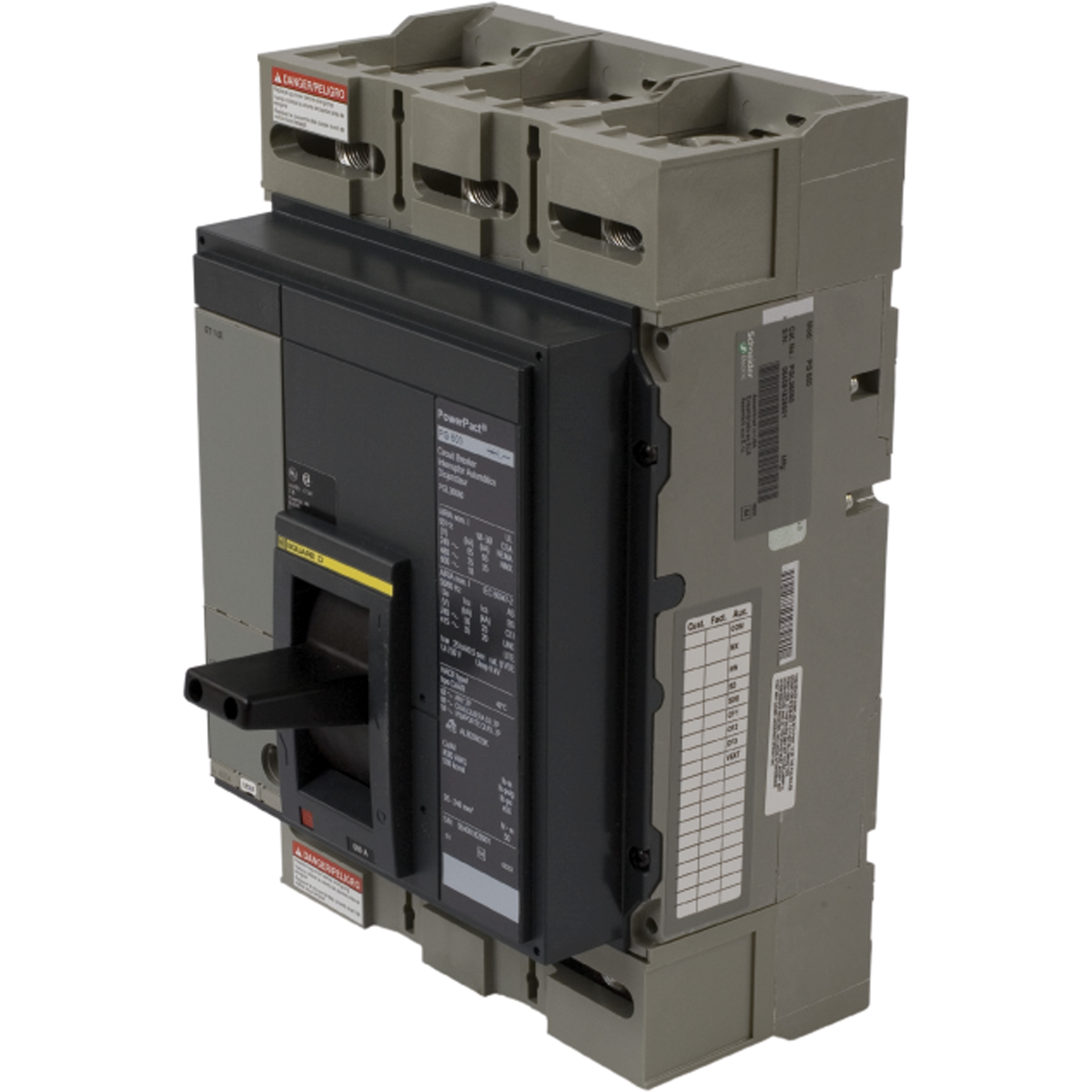

Square D™ PowerPact™ PGL36080U63AE1 Modbus BCM Molded Case Circuit Breaker, 600 VAC, 800 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Power Micrologic 5.0 P LSI Trip
Custom_Product_Images_Illustration
Square D™ PowerPact™ PGL36080U63AE1 Modbus BCM Molded Case Circuit Breaker, 600 VAC, 800 A, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, 3 Poles, Electronic Power Micrologic 5.0 P LSI Trip
SKUPDW~9356167
MFGR #PGL36080U63AE1
Your Cost: $15,138.65/ea
List: Square D™ PowerPact™ Molded Case Circuit Breaker, Modbus BCM, 600 VAC, 800 A, 50/60 Hz, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, P Frame, Electronic Power Micrologic 5.0 P LSI Trip, 800 A Trip, 3 Pole, 3, Line/Load Lug, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1, DIN Rail Mount, -13 to 158 deg F, 12.86 in H x 8.27 in W x 8.07 in D
Square D™ PowerPact™ Molded Case Circuit Breaker, Modbus BCM, 600 VAC, 800 A, 50/60 Hz, 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Interrupt, P Frame, Electronic Power Micrologic 5.0 P LSI Trip, 800 A Trip, 3 Pole, 3, Line/Load Lug, 3/0 AWG to 500 kcmil Al/Cu Wire, NEMA AB1, DIN Rail Mount, -13 to 158 deg F, 12.86 in H x 8.27 in W x 8.07 in D
Alternate Catalog Number PGL36080U63AE1 Application DISTRIBUTION ARRA Compliant N Buy American Compliant N Catalog Number PGL36080U63AE1 Connection Lugs load;lugs line; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper Connection Type Line/Load Lug Country of Origin US Currency USD Dimensions 12.86 in H x 8.27 in W x 8.07 in D Enclosure Type NEMA AB1 EU RoHS Indicator Y Frame P Frequency Rating 50/60 Gross Weight Per Pack 32.0000 lb Gross Weight per Pack Metric 14.52 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 12.75 in Height [Metric] 32.7000 cm Item Group 01215 Length 7.96 in Length [Metric] 20.4000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431849&lang=en-us Mounting Type DIN Rail Number Of Poles 3 Phase 3 Returnable Y Temperature Rating -13 to 158 Trip Range 800 Type Modbus BCM UNSPSC 39121601 UPC 11 78590175647 UPC 12 785901756477 Warranty Description Contractual Warranty:18 months Width 8.19 in Width [Metric] 21.0000 cm Wire Size 3/0 AWG to 500 kcmil Al/Cu Brand Square D™ Manufacturer Schneider Electric Amperage Rating 800 Interrupt Rating 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC Trip Type Electronic Power Micrologic 5.0 P LSI Voltage Rating 600 VAC Distribution Modbus connecting cable;Modbus Provide overload and short circuit protection Are true RMS sensing devices Provide means to manually disconnect power to the circuit Provide enhanced coordination by their adjustabilit Provide high interrupting ratings and withstand ratings Provide integral equipment ground fault protection or alarm Provide communications Provide power monitoring Provide protective relaying functions
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | PGL36080U63AE1 |
| Application | DISTRIBUTION |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | PGL36080U63AE1 |
| Connection | Lugs load;lugs line; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
| Connection Type | Line/Load Lug |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 12.86 in H x 8.27 in W x 8.07 in D |
| Enclosure Type | NEMA AB1 |
| EU RoHS Indicator | Y |
| Frame | P |
| Frequency Rating | 50/60 |
| Gross Weight Per Pack | 32.0000 lb |
| Gross Weight per Pack Metric | 14.52 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 12.75 in |
| Height [Metric] | 32.7000 cm |
| Item Group | 01215 |
| Length | 7.96 in |
| Length [Metric] | 20.4000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431849&lang=en-us |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Phase | 3 |
| Returnable | Y |
| Temperature Rating | -13 to 158 |
| Trip Range | 800 |
| Type | Modbus BCM |
| UNSPSC | 39121601 |
| UPC 11 | 78590175647 |
| UPC 12 | 785901756477 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.19 in |
| Width [Metric] | 21.0000 cm |
| Wire Size | 3/0 AWG to 500 kcmil Al/Cu |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 800 |
| Interrupt Rating | 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC |
| Trip Type | Electronic Power Micrologic 5.0 P LSI |
| Voltage Rating | 600 VAC |
| Distribution |
| Modbus connecting cable;Modbus |
| Provide overload and short circuit protection |
| Are true RMS sensing devices |
| Provide means to manually disconnect power to the circuit |
| Provide enhanced coordination by their adjustabilit |
| Provide high interrupting ratings and withstand ratings |
| Provide integral equipment ground fault protection or alarm |
| Provide communications |
| Provide power monitoring |
| Provide protective relaying functions |
